Impex MWM 1800 Owner's Manual page 20

STEP 13 (See Diagram 13)
A.) Insert one Foam Roll Tube (#19) halfway through the hole on the Left Seat Support (#14).
Insert one Foam Roll Tube (#19) halfway through the hole on the Leg Developer (#13). Push
four Foam Rolls (#42) onto the Tubes from both sides. Plug the Foam Roll End Caps (#41)
to each end of the Foam Rolls.
B.) Attach the Lat Bar (#22) to the Chain (#65) using a C-clip (#39). Attach the Chain to the
Upper Cable (#32). See How To Use.
C.) Attach the Ab Strap (#46) to the Ab Cable (#35) using a C-clip.
D.) Attach the Arm Curl Handle (#23) to a Chain (#65) using a C-clip. Attach the Chain to the
Lower Cable (#33). Remove the Chain and Handle when using the Leg Developer.
19

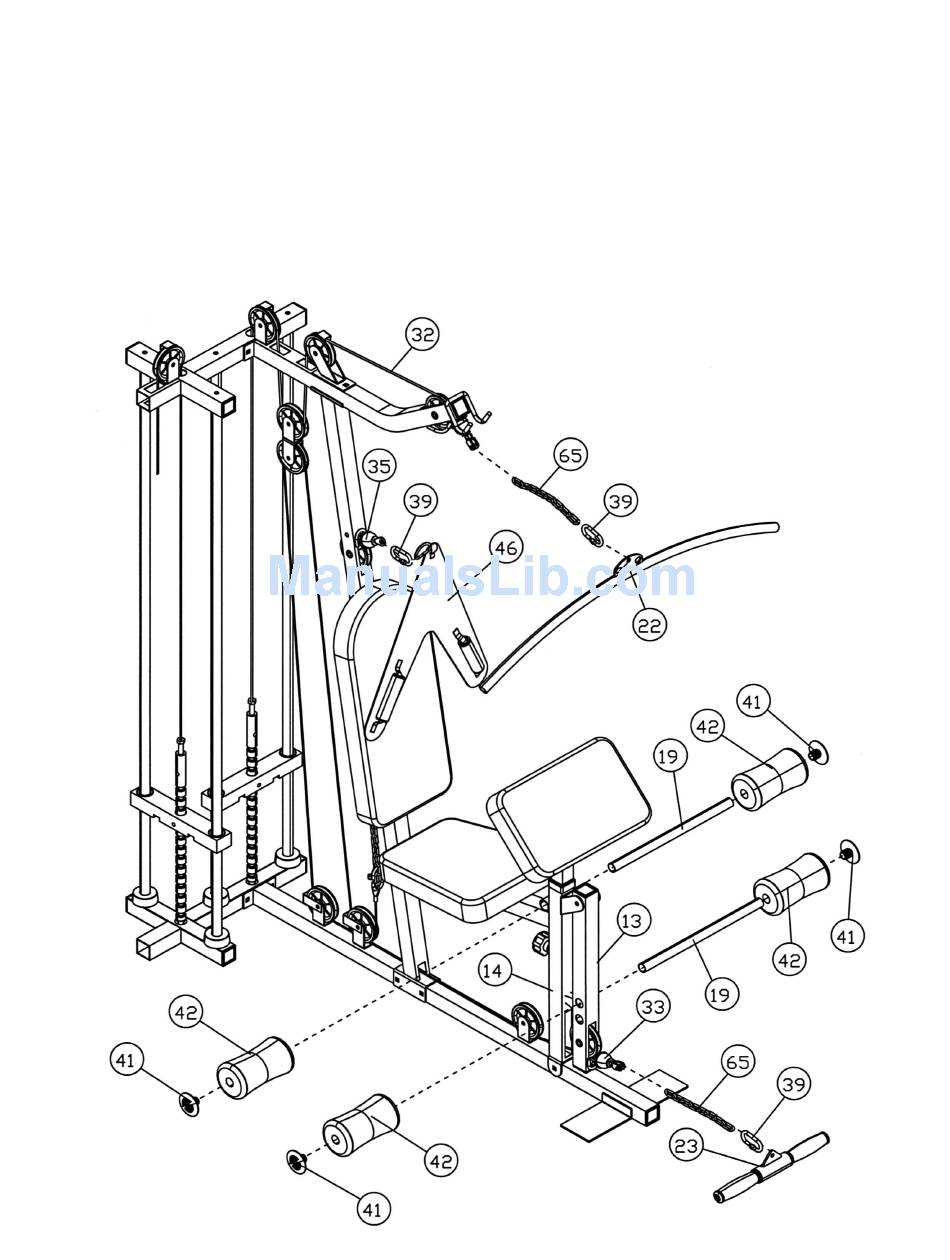

DIAGRAM 13
