Impex MWM 1800 Owner's Manual page 12

STEP 7 (See Diagram 7 & Cable Loop Diagram)
A.) Attach the two Swivel Pulley Brackets (#11) to the Right Upper Frame (#7). Secure each
Bracket with one M12 x 4 3/8" Allen Bolt (#72), two
Nut (#82). NOTE: Do not over tighten the Bolt. Make sure the Bracket is able to swivel.
B.) Attach one end of the 83" Butterfly Cable (#34) to the clip on the Right Butterfly (#9). Pull
the Cable to the right open Swivel Pulley Bracket (#11).
C.) Attach a Pulley (#60) to the Bracket. Secure it with one M10 x 2 "Allen Bolt (#68), two
Washers (#50), and one M10 Aircraft Nut (#81).
D.) Draw the Cable downward. Repeat the Step B above to install a Pulley to the Angled Double
Pulley Bracket (#12). Let the Bracket hanging for now. Pull the Cable upward to the left open
Swivel Pulley Bracket.
E.) Repeat the Step B above to install a Pulley to the Left Swivel Pulley Bracket. Draw the Cable
to the Left Butterfly (#8). Attach the end of the Cable to the clip on the Left Butterfly.
1" Washers (#51) and one M12 Aircraft
11

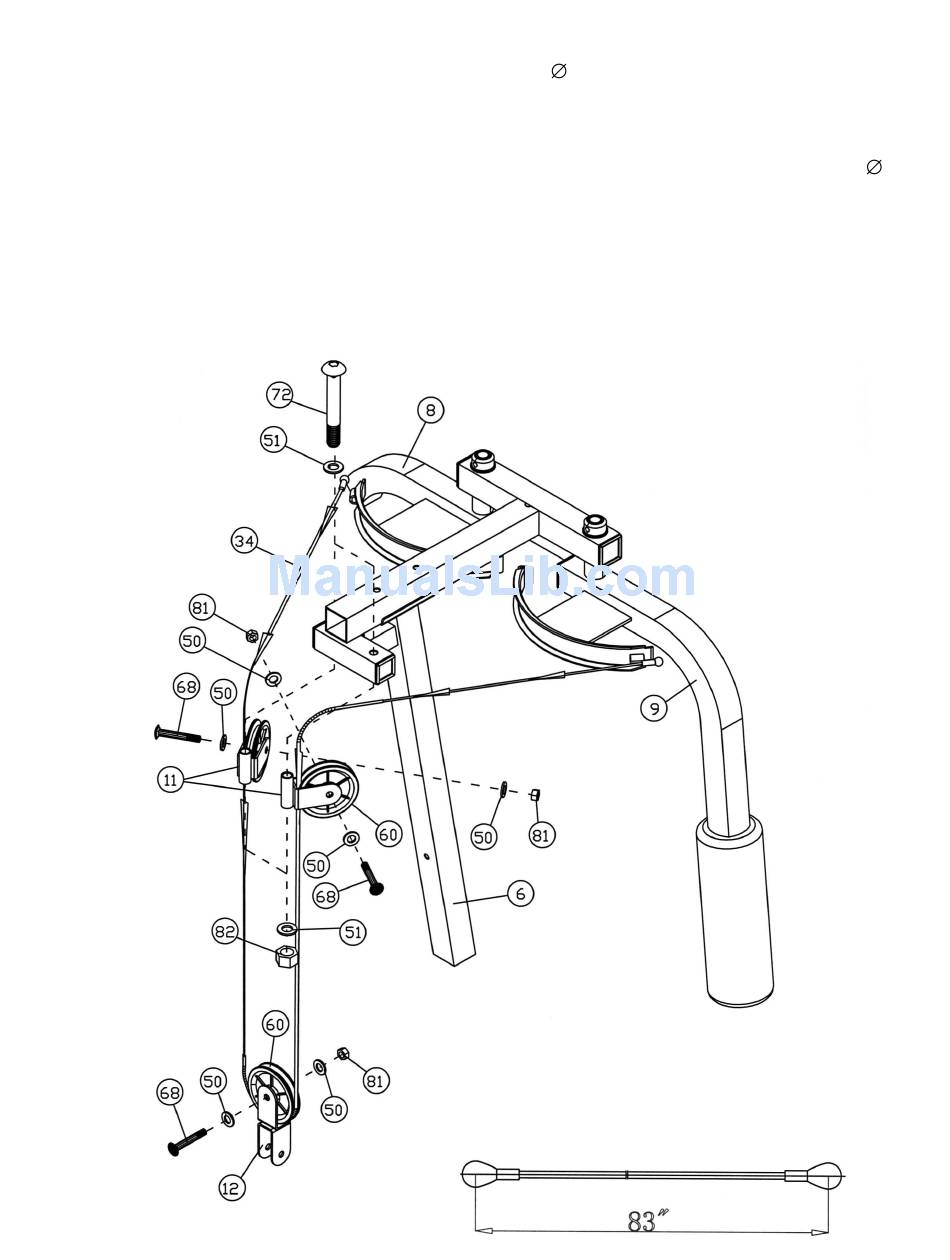

DIAGRAM 7
¾"
