2.2.2 Installation Options

This section shows various installation options for the Talkback Speaker.
2.2.2.1 Running the Talkback Speaker with a Remote Call Button
In Figure
initiated or answered from a remotely-mounted switch. When enabled through the web interface, if
the Remote Call Button is pressed, the speaker would initiate a SIP call to a predetermined
extension.
When the SIP Talkback Speaker is called from a remote phone and Auto-Answer is not enabled
within the unit's Web interface, the LED on the Remote Button will blink. The call will be answered
when the button is pressed.
Speaker
AUX POWER (+)
(+12VDC @ 1A)
AUX POWER (-)
RELAY COM
RELAY NO
BUTTON LED (+)
BTN SENSE
Operations Guide
2-3, the VoIP Remote Call Button enables calls to the SIP Talkback Speaker that can be

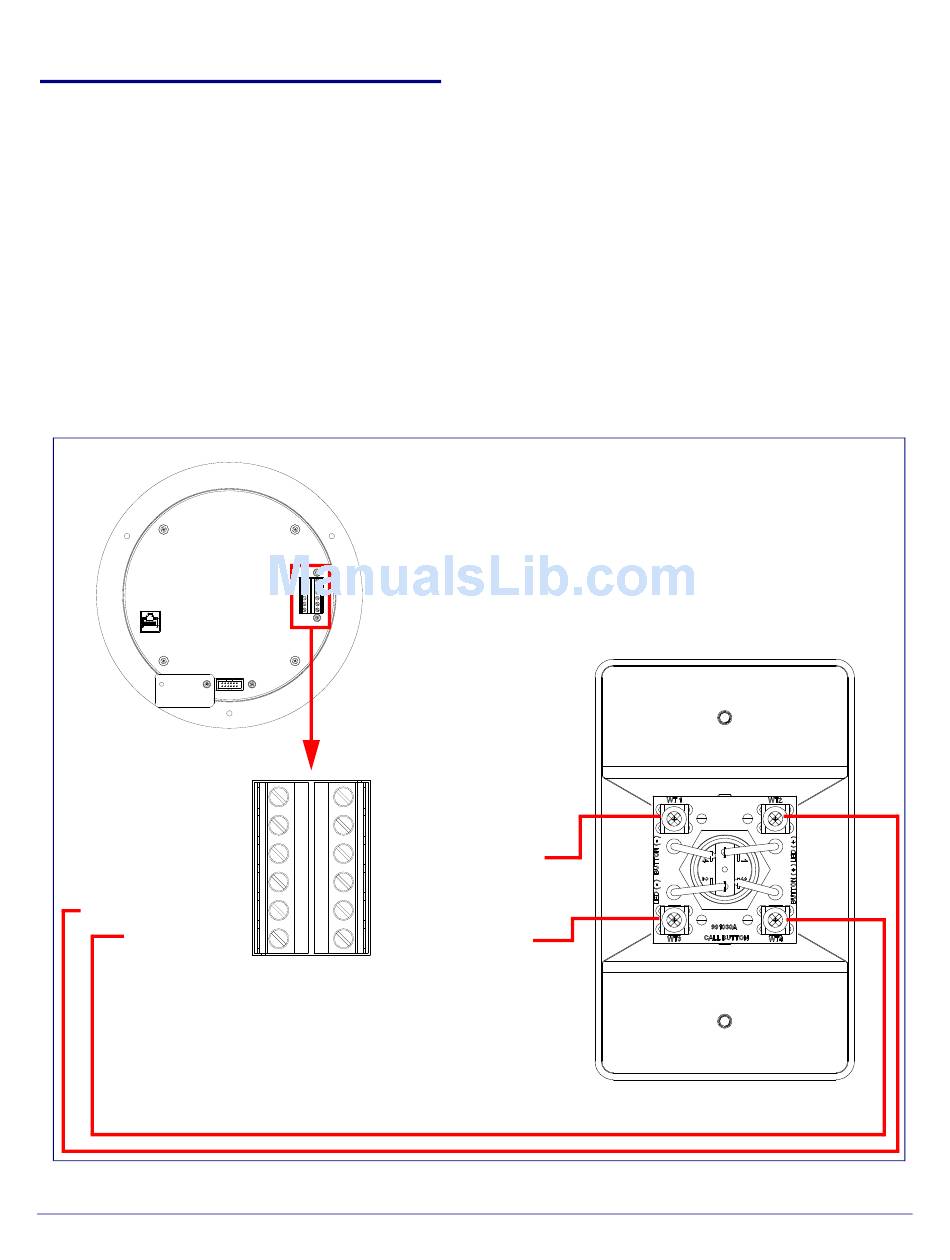

Figure 2-4. Running the V2 Speaker with a Remote Call Button
AUX SPEAKER (-)
AUX SPEAKER (+)
BTN SENSE GND
LINE OUT (-)
LINE OUT (+)
BUTTON LED (-)
J10 J9
930468A
Installing the VoIP V2 Speaker
Installation Options
Back View
