The IP Endpoint Company
Push-to-Talk V2 Speaker
Operations Guide
Part #011180, RAL 9002, Gray White, Standard
Part #011181, RAL 9003, Signal White, Optional
Document Part #930468A
for Firmware Version 6.4.0
CyberData Corporation
3 Justin Court
Monterey, CA 93940
(831) 373-2601

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 11180 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CyberData 11180

Summary of Contents for CyberData 11180

  • Page 1 The IP Endpoint Company Push-to-Talk V2 Speaker Operations Guide Part #011180, RAL 9002, Gray White, Standard Part #011181, RAL 9003, Signal White, Optional Document Part #930468A for Firmware Version 6.4.0 CyberData Corporation 3 Justin Court Monterey, CA 93940 (831) 373-2601...
  • Page 2 CyberData Corporation. This manual, and the products, software, firmware, and/or hardware described in this manual are the property of CyberData Corporation, provided under the terms of an agreement between CyberData Corporation and recipient of this manual, and their use is subject to that agreement and its terms.
  • Page 3 Revision Information Revision 930468A, which corresponds to firmware version 6.4.0, was released on November 13, 2012. Operations Guide 930468A CyberData Corporation...

  • Page 4: Important Safety Instructions

    Electrical Hazard: This product should be installed by a licensed electrician according to all local electrical and building codes. GENERAL ALERT Warning Electrical Hazard: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions. GENERAL ALERT CyberData Corporation 930468A Operations Guide...
  • Page 5 Potential safety hazards are identified in this manual through the use of words Danger, Warning, and Caution, the specific hazard type, and pictorial alert icons. CyberData Corporation 930468A Operations Guide...
  • Page 6 Private Branch Exchange Power over Ethernet (as per IEEE 802.3af standard) RTFM Reset Test Function Management Session Initiated Protocol u-law A companding algorithm, primarily used in the digital telecommunication Unified Communications VoIP Voice over Internet Protocol CyberData Corporation 930468A Operations Guide...

  • Page 7: Table Of Contents

    C.4.1 Warranty & RMA Returns within the United States ............81 C.4.2 Warranty & RMA Returns Outside of the United States ............ 81 C.4.3 Spare in the Air Policy ......................81 C.4.4 Return and Restocking Policy ....................82 Operations Guide 930468A CyberData Corporation...
  • Page 8 C.4.5 Warranty and RMA Returns Page ..................82 Index Operations Guide 930468A CyberData Corporation...

  • Page 9: Chapter 1 Product Overview

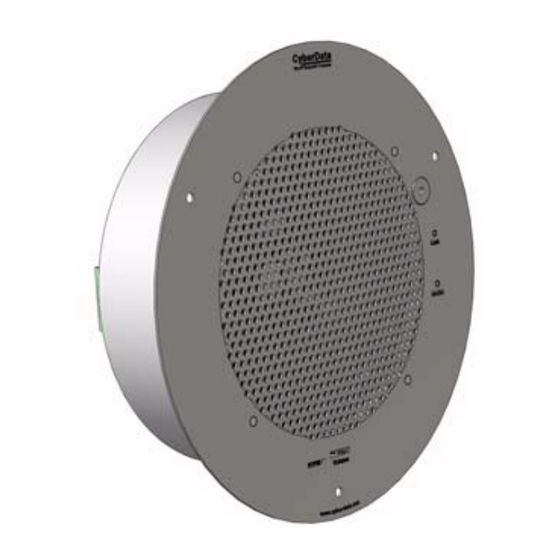

    1 Product Overview The CyberData SIP-enabled V2 Speaker is a Power-over-Ethernet (PoE 802.3af) and Voice-over-IP (VoIP) public address loudspeaker that easily connects into existing local area networks with a single CAT5 cable connection. The speaker is compatible with most SIP-based IP PBX. In a non-SIP environment, the speaker is capable of receiving broadcast audio via multicast.

  • Page 10: Installation

    • High efficiency speaker driver • PoE 802.3af Enabled (Powered-over- Ethernet) • Network and external speaker volume control • Peer-to-peer capability • User-uploadable ring and alert tones • Auto detect for CyberData Clock kit • Nightringer • Buffered page Operations Guide 930468A CyberData Corporation...

  • Page 11: Supported Protocols

    Facilitates hosting for the configuration file for Autoprovisioning. • Audio Encodings PCMU (G.711 mu-law) PCMA (G.711 A-law) Packet Time 20 ms 1.5 Supported SIP Servers The following link contains information on how to configure the speaker for the supported SIP servers: http://www.cyberdata.net/support/server/index.html Operations Guide 930468A CyberData Corporation...

  • Page 12: Product Specifications

    (1.3 kg/shipping weight of 1.7 kg) Part number 011180, RAL 9002, Gray White, Standard Color 011181, RAL 9003, Signal White, Optional Color a.Auxiliary power input for use when PoE power is not available. 12 VDC @ 1A. Do not use auxiliary power input when speaker J1 is connected to a PoE power source.

  • Page 13: Optional Connections (J9 And J10)

    *Do not use auxiliary power input when speaker J1 is connected to a PoE power source. 1.8 Dimensions Figure 1-4 shows the dimensions for the V2 Speaker. Figure 1-4. Dimensions 9.0 [229] 3.0 [75] Dimensions are in Inches [Millimeter] Operations Guide 930468A CyberData Corporation...

  • Page 14: Push-To-Talk Speaker Modes

    Push the Call Button • Push the Call Button to make a call or dial the SIP extension. See Figure 1-6. Figure 1-6. Push the Call Button to Make a Call Push the Call Button Operations Guide 930468A CyberData Corporation...
  • Page 15 • To listen to someone talking on the other end, the person at the V2 Speaker must release the Call Button. See Figure 1-8. Figure 1-8. Release the Call Button While Listening Release the Call Button while listening Operations Guide 930468A CyberData Corporation...

  • Page 16: Monitor Mode

    • Monitor Mode is controlled by the phone instead of the Push-to-Talk Speaker. • To initiate the Monitor Mode, someone on a phone must dial the pre-programmed Monitor Extension. See Figure 1-10. Figure 1-10. Dial the Monitor Extension Dial the pre-programmed Monitor Extension Operations Guide 930468A CyberData Corporation...
  • Page 17 "talking mode," they must press a pre-programmed keypad button to enter the "listening mode." Figure 1-11. Talking and Listening Modes are Controlled by the Phone Keypad Talking and listening modes are controlled by the phone keypad Operations Guide 930468A CyberData Corporation...

  • Page 18: Chapter 2 Installing The Voip V2 Speaker

    Reference Guide that is included in the packaging with each speaker. Table 2-1. Parts Quantity Part Name Illustration Talkback Speaker Assembly Installation Quick Reference Guide Speaker Mounting Accessory Kit (Part #070054A) Remote Call Button Accessory Kit (Part #071011A) Operations Guide 930468A CyberData Corporation...

  • Page 19: Device Configuration

    Installing the VoIP V2 Speaker 2.2 Device Configuration Set up and configure each speaker before you mount it. CyberData delivers each speaker with the following factory default values: Table 2-2. Factory Network Default Settings—Default of Network Parameter Factory Default Setting...

  • Page 20: Connect Power To The Speaker

    VoIP V2 Speaker to a 802.3af compliant PoE switch via a Cat 5 Ethernet cable. Figure 2-1. Push-to-Talk V2 Speaker to a 802.3af Compliant PoE Switch Cat 5 Ethernet cable 802.3af Compliant PoE Switch VoIP V2 Speaker Operations Guide 930468A CyberData Corporation...
  • Page 21 A PoE Injector is a power supply solution for those who have a standard Non PoE Switch. Figure 2-2. Push-to-Talk V2 Speaker (with PoE Injector) to a Non PoE Switch PoE Injector (Part #010867A) Cat 5 Ethernet cable Non PoE Switch VoIP V2 Speaker Operations Guide 930468A CyberData Corporation...
  • Page 22 AUX POWER (-) AUX SPEAKER (+) RELAY COM BTN SENSE GND RELAY NO LINE OUT (-) BUTTON LED (+) LINE OUT (+) AC adaptor BTN SENSE BUTTON LED (-) +12 VDC @ 1 Amps (UL-listed, LPS-rated) Operations Guide 930468A CyberData Corporation...

  • Page 23: Installation Options

    AUX SPEAKER (-) (+12VDC @ 1A) AUX POWER (-) AUX SPEAKER (+) RELAY COM BTN SENSE GND RELAY NO LINE OUT (-) BUTTON LED (+) LINE OUT (+) BTN SENSE BUTTON LED (-) Back View Operations Guide 930468A CyberData Corporation...
  • Page 24 Output Contacts AC or DC-rated depending upon controlled device AC or DC requirements Power Source as DC Power Supply required by an (Max. 30 VDC @ 1A) external device Operations Guide 930468A CyberData Corporation...
  • Page 25 Clock Kit and an auxiliary speaker. The V2 Speaker may only be used separately with an auxiliary speaker or used separately with a Clock Kit. See GENERAL ALERT Figure 2-7, "Clock Kit with Extra Speaker Connection is NOT ALLOWED." Operations Guide 930468A CyberData Corporation...
  • Page 26 Figure 2-7. Clock Kit with Extra Speaker Connection is ALLOWED. NOT ALLOWED 16 gauge wire and a maximum length of 20 feet 8 Ohm Analog Speaker (CD Part Number 011072) VoIP Clock Kit (Wall Mount Version) Operations Guide 930468A CyberData Corporation...
  • Page 27 AUX SPEAKER (-) (+12VDC @ 1A) AUX POWER (-) AUX SPEAKER (+) RELAY COM BTN SENSE GND RELAY NO LINE OUT (-) BUTTON LED (+) LINE OUT (+) BTN SENSE BUTTON LED (-) Amplifier Factory Floor Operations Guide 930468A CyberData Corporation...

  • Page 28: Confirm That The Speaker Is Operational And Linked To The Network

    The front power/status LED will remain solid on during operation. 2.2.3.2 Link LED • The Link LED is illuminated when the network link to the speaker is established. • The Link LED blinks to indicate network traffic. Operations Guide 930468A CyberData Corporation...

  • Page 29: Confirm The Ip Address And Test The Audio

    The speaker will use DHCP to obtain the new IP address (DHCP-assigned address or default to 10.10.10.10 if a DHCP server is not present). Note Pressing and holding the RTFM button for longer than five seconds will restore the speaker to the factory default settings. Operations Guide 930468A CyberData Corporation...

  • Page 30: Adjust The Volume

    The external volume control can be disabled from the web interface by selecting Digital Volume Control on the Device Configuration Page (see Section 2.3.3, "Configure the Device Parameters"). Figure 2-11. Volume Control Volume control dial Operations Guide 930468A CyberData Corporation...

  • Page 31: How To Set The Factory Default Settings

    2. The speaker announces that it is restoring the factory default settings. Note The speaker will use DHCP to obtain the new IP address (DHCP-assigned address or default to 10.10.10.10 if a DHCP server is not present). Operations Guide 930468A CyberData Corporation...

  • Page 32: Configure The Speaker Parameters

    Table 2-3. Factory Network Default Settings—Default of Network Parameter Factory Default Setting IP Addressing DHCP IP Address 10.10.10.10 Web Access Username admin Web Access Password admin Subnet Mask 255.0.0.0 Default Gateway 10.0.0.1 a. Default if there is not a DHCP server present. Operations Guide 930468A CyberData Corporation...

  • Page 33: Talkback Speaker Web

    Link to the Event Configuration page. Link to the Autoprovisioning Configuration page. Link to the Update Firmware page. a.This page is used only if the CyberData Clock Kit (part number 011023 [wall-mounted version] or 011024 [flush-mounted version]) is installed. Operations Guide...

  • Page 34: Log In To The Configuration Home Page

    Make sure that the PC is on the same IP network as the Talkback Speaker. Note You may also download CyberData’s VoIP Discovery Utility program which allows you to easily find and configure the default web address of the CyberData VoIP products.
  • Page 35 Log in to the Configuration Home Page 2. When prompted, use the following default Web Access Username and Web Access Password to access the Home Page (Figure 2-13): Web Access Username: admin Web Access Password: admin Figure 2-13. Home Page Operations Guide 930468A CyberData Corporation...
  • Page 36 Shows the current status of Monitor Server 2. Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Click on the Reboot button to reboot the system. Operations Guide 930468A CyberData Corporation...

  • Page 37: Configure The Device Parameters

    Installing the VoIP V2 Speaker Configure the Device Parameters 2.3.3 Configure the Device Parameters 1. Click the Device Configuration button to open the Device Configuration page. Figure 2-14. Figure 2-14. Device Configuration Page Operations Guide 930468A CyberData Corporation...
  • Page 38 Blink button LED on monitor call When selected, the button LED will flash on and off during a monitor call. Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Operations Guide 930468A CyberData Corporation...
  • Page 39 3. The device will play back the recorded audio. Click on the Test Relay button to do a relay test. Click on the Reboot button to reboot the system. 3. After changing the parameters, click the Save button. Operations Guide 930468A CyberData Corporation...

  • Page 40: Configure The Network Parameters

    Installing the VoIP V2 Speaker Configure the Network Parameters 2.3.4 Configure the Network Parameters 1. Click the Networking button to open the Network Configuration page (Figure 2-15). Figure 2-15. Network Configuration Page Operations Guide 930468A CyberData Corporation...
  • Page 41 Talkback Speaker if appropriate. 4. Connect the Talkback Speaker to the target network. 5. From a system on the same network as the Talkback Speaker, open a browser with the new IP address of the Talkback Speaker. Operations Guide 930468A CyberData Corporation...

  • Page 42: Configure The Sip Parameters

    2.3.5 Configure the SIP Parameters 1. Click SIP Config to open the SIP Configuration page (Figure 2-17). Note For specific server configurations, go to the following website address: http://www.cyberdata.net/support/server/index.html Figure 2-16. SIP Configuration Page (continued) Operations Guide 930468A CyberData Corporation...
  • Page 43 Installing the VoIP V2 Speaker Configure the SIP Parameters Figure 2-17. SIP Configuration Page (continued) Operations Guide 930468A CyberData Corporation...
  • Page 44 (up to 64 alphanumeric characters). Backup SIP Auth ID 2 Backup SIP Auth Password 1 Type the SIP Authenticate Password for the Backup SIP Server (up to 64 alphanumeric characters). Backup SIP Auth Password 2 Operations Guide 930468A CyberData Corporation...
  • Page 45 Type the desired Extension ID (64 character limit). Monitor DTMF toggle key Specify the phone keypad button that you want to use to toggle back and forth between the talking and listening mode when the device is in Monitor Mode. Operations Guide 930468A CyberData Corporation...
  • Page 46 DTMF tone '2', send out DTMF tone 5, wait 6 seconds, send out DTMF tone 4, wait 4 seconds, send out DTMF tone 1 The maximum number of total characters in the dial-out field is 64. Note Operations Guide 930468A CyberData Corporation...

  • Page 47: Configure The Night Ringer Parameters

    Installing the VoIP V2 Speaker Configure the Night Ringer Parameters 2.3.6 Configure the Night Ringer Parameters 1. Click on the Nightringer button to open the Nightringer Configuration page. See Figure 2-18. Figure 2-18. Nightringer Configuration Setup Operations Guide 930468A CyberData Corporation...
  • Page 48 Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Click on the Reboot button to reboot the system. 3. After changing the parameters, click on the Save button. Operations Guide 930468A CyberData Corporation...

  • Page 49: Configure The Multicast Parameters

    Installing the VoIP V2 Speaker Configure the Multicast Parameters 2.3.7 Configure the Multicast Parameters 1. Click on the Multicast Configuration button to open the Multicast Configuration page. See Figure 2-19. Figure 2-19. Multicast Configuration Setup Operations Guide 930468A CyberData Corporation...
  • Page 50 Ringtones all play at the same priority level. This means that it is possible to have a nightring tone Nightringtones and a normal ringtone playing at the same time. The maximum ringtone duration is 2 MB or about four minutes of ulaw audio. Operations Guide 930468A CyberData Corporation...
  • Page 51 When the speaker is playing back buffered audio and this buffered audio is interrupted by a higher priority stream, once the higher priority streams is finished, the speaker will restart the lower priority stream from the beginning. Operations Guide 930468A CyberData Corporation...

  • Page 52: Configure The Audio Parameters

    Figure 2-20 Figure 2-21. The Audio Configuration page is used to add custom audio to the board. User uploaded audio will take precedence over the audio files shipped with the Intercom. Figure 2-20. Audio Configuration Page Operations Guide 930468A CyberData Corporation...
  • Page 53 Installing the VoIP V2 Speaker Configure the Audio Parameters Figure 2-21. Audio Configuration Page (continued) Operations Guide 930468A CyberData Corporation...
  • Page 54 '9' corresponds to the spoken word “nine.” Corresponds to the spoken word “dot.” (24 character limit) Audiotest Corresponds to the message “This is the CyberData IP speaker test message...” (24 character limit) Pagetone Corresponds to a simple tone used for beep on initialization and beep on page (24 character limit).
  • Page 55 The Save button will download a new user audio file to the board once you've selected the file by using the Browse button. The Save button will delete any pre- existing user-uploaded audio files. Operations Guide 930468A CyberData Corporation...
  • Page 56 RIFF (little-endian) data, WAVE audio, Microsoft PCM, 16 bit, mono 8000 Hz You can use the free utility Audacity to convert audio files into this format. See Figure 2-22 through Figure 2-24. Figure 2-22. Audacity 1 Figure 2-23. Audacity 2 Operations Guide 930468A CyberData Corporation...
  • Page 57 Configure the Audio Parameters When you export an audio file with Audacity, save the output as: WAV (Microsoft) signed 16 bit PCM. ● Figure 2-24. WAV (Microsoft) signed 16 bit PCM WAV (Microsoft) signed 16 bit PCM Operations Guide 930468A CyberData Corporation...

  • Page 58: Configure The Ntp Server And Clock Parameters

    Figure 2-25. Note The Clock Configuration page is always visible. If a clock is not installed, the Clock Status will indicate NOT INSTALLED. Otherwise it shows INSTALLED. Figure 2-25. NTP Server and Clock Configuration Page Operations Guide 930468A CyberData Corporation...
  • Page 59 Click on this button to set the clock after entering the current time. Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Click on the Reboot button to reboot the system. Operations Guide 930468A CyberData Corporation...
  • Page 60 Time of day to change M11.1.0/2:00:00 The date and time when daylight savings ends. The eleventh month (November) The 1st occurrence of the day (next item) in the month Sunday /2:00:00 Time of day to change Operations Guide 930468A CyberData Corporation...
  • Page 61 Eniwetok GMT-11 Samoa GMT-10 Hawaii GMT-9 Alaska GMT-8 PST, Pacific US GMT-7 MST, Mountain US GMT-6 CST, Central US GMT-5 EST, Eastern US GMT-4 Atlantic, Canada GMT-3 Brazilia, Buenos Aries GMT-2 Mid-Atlantic GMT-1 Cape Verdes Operations Guide 930468A CyberData Corporation...
  • Page 62 GMT+3 Moscow, Kuwait GMT+4 Abu Dhabi, Muscat GMT+5 Islamabad, Karachi GMT+6 Almaty, Dhaka GMT+7 Bangkok, Jakarta GMT+8 Hong Kong, Beijing GMT+9 Tokyo, Osaka GMT+10 Sydney, Melbourne, Guam GMT+11 Magadan, Soloman Is. GMT+12 Fiji, Wellington, Auckland Operations Guide 930468A CyberData Corporation...

  • Page 63: Configure The Event Parameters

    Click the Event Config button to open the Event Configuration page (Figure 2-27). The Event Configuration page specifies a remote server that can be used to receive HTTP POST events when actions take place on the board. Figure 2-27. Event Configuration Page Operations Guide 930468A CyberData Corporation...
  • Page 64 Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Click on the Test Event button to test an event. Click on the Reboot button to reboot the system. Operations Guide 930468A CyberData Corporation...

  • Page 65: Example Packets For Events

    Here are example packets for every event: POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>POWERON</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 199 Content-Type: application/x-www-form-urlencoded <?xml version="1.0"...
  • Page 66 Installing the VoIP V2 Speaker Configure the Event Parameters Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 197 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>RINGING</event> </cyberdata> POST xmlparse_engine HTTP/1.1 Host: 10.0.3.79 User-Agent: CyberData/1.0.0 Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?>...
  • Page 67 Installing the VoIP V2 Speaker Configure the Event Parameters Content-Length: 234 Content-Type: application/x-www-form-urlencoded <?xml version="1.0" encoding="ISO-8859-1"?> <cyberdata NAME='CyberData VoIP Device' MAC='0020f70015b6'> <event>NIGHTRINGING</event> </cyberdata> Operations Guide 930468A CyberData Corporation...

  • Page 68: Configure The Autoprovisioning Parameters

    Installing the VoIP V2 Speaker Configure the Autoprovisioning Parameters 2.3.11 Configure the Autoprovisioning Parameters 1. Click the Autoprovisioning button to open the Autoprovisioning Configuration page. Figure 2-28. Figure 2-28. Autoprovisioning Configuration Page Operations Guide 930468A CyberData Corporation...
  • Page 69 Click the Save button to save your configuration settings. Note: You need to reboot for changes to take effect. Click on the Reboot button to reboot the system. 3. After changing the parameters, click the Save button. Operations Guide 930468A CyberData Corporation...
  • Page 70 The board gets its autoprovisioning information from an XML-formatted file hosted from a TFTP server. CyberData will provide a template for this XML file and the user can modify it for their own use.
  • Page 71 3. The board downloads and writes the firmware file again. CyberData has timed a firmware upgrade at 140 seconds. Therefore, if you suspect the board is stuck in a loop, either remove or comment out the FirmwareVersion line in the XML file and let the board boot as it normally does.
  • Page 72 You can force a change to the audio files on the board by clicking Restore Default on the Audio Configuration page or by changing the autoprovisioning file with “default” set as the file name. Operations Guide 930468A CyberData Corporation...

  • Page 73: Upgrade The Firmware And Reboot The Talkback Speaker

    2. Unzip the Talkback Speaker version file. This file may contain the following: • Firmware file • Release notes 3. Log in to the Talkback Speaker home page as instructed in Section 2.3.2, "Log in to the Configuration Home Page". Operations Guide 930468A CyberData Corporation...
  • Page 74 The way that the integrity of the configuration file is validated has changed. There is no problem with updating the firmware but if you downgrade (or downgrade, make some changes, and then upgrade again) the device may think that the configuration is corrupt and restore defaults. Operations Guide 930468A CyberData Corporation...
  • Page 75 Refer to the Browse button description. Use the Browse button to navigate to the location of the Intercom firmware file that you want to upload. Click on the Submit button to automatically upload the selected firmware and reboot the system. Operations Guide 930468A CyberData Corporation...
  • Page 76 1. Log in to the Home Page as instructed in Section 2.3.2, "Log in to the Configuration Home Page". See Figure 2-30. Figure 2-30. Home Page Reboot 2. Click the Reboot button. See Figure 2-30. Operations Guide 930468A CyberData Corporation...
  • Page 77 Installing the VoIP V2 Speaker Upgrade the Firmware and Reboot the Talkback Speaker 3. A normal restart will occur and you will see the following Reboot page. Figure 2-31. Reboot Page Operations Guide 930468A CyberData Corporation...

  • Page 78: Command Interface Post Commands

    Play the "3" audio file wget --user admin --password admin --auth-no-challenge --quiet - O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_3=yes" Play the "4" audio file wget --user admin --password admin --auth-no-challenge --quiet - O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_4=yes" Operations Guide 930468A CyberData Corporation...
  • Page 79 Play the "Door Ajar" audio file wget --user admin --password admin --auth-no-challenge --quiet - O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_doorajar=yes" Play the "Night Ring" audio file wget --user admin --password admin --auth-no-challenge --quiet - O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_nightring=yes" Operations Guide 930468A CyberData Corporation...
  • Page 80 Play the "Door Ajar" audio file wget --user admin --password admin --auth-no-challenge --quiet - O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_doorajar=yes" Play the "Night Ring" audio file wget --user admin --password admin --auth-no-challenge --quiet - O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "play_nightring=yes" Operations Guide 930468A CyberData Corporation...
  • Page 81 Delete the "Restoring Default" audio file wget --user admin --password admin --auth-no-challenge --quiet - O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "delete_restoringdefault=yes" Delete the "Ringback tone" audio file wget --user admin --password admin --auth-no-challenge --quiet - O /dev/null "http://10.0.3.71/cgi-bin/audioconfig.cgi" --post-data "delete_ringback=yes" Operations Guide 930468A CyberData Corporation...
  • Page 82 O /dev/null "http://10.0.3.71/cgi-bin/sensorconfig.cgi" --post-data "doortest=yes" Trigger the Intrusion Sensor Test (Sensor Config page) wget --user admin --password admin --auth-no-challenge --quiet - O /dev/null "http://10.0.3.71/cgi-bin/sensorconfig.cgi" --post-data "intrusiontest=yes" a.Type and enter all of each http POST command on one line. Operations Guide 930468A CyberData Corporation...

  • Page 83: Appendix A Mounting The Speaker

    Illustration #8 Nylon Thumb Nuts #8 Fender Washers 8-32 x 1 1/4" Mounting Screws Table A-2. Drywall Mounting Components (Part of the Accessory Kit) Quantity Part Name Illustration Plastic Ribbed Anchors #8 Sheet Metal Screws Operations Guide 930468A CyberData Corporation...
  • Page 84 #8 Nylon Thumb Nut (3x) #8 Fender Washer (3x) *Ceiling Tile or Dry Wall *Optional Reinforcement Mount P/N: 010991A (Sold Seperately) Template VoIP V2 Speaker Assembly Dry Wall Mounting Kit #6 Screw (3x) Ceiling Mounting Screw #8-32x1 1/4" (3X) Operations Guide 930468A CyberData Corporation...
  • Page 85 For drop ceiling mounting, use the three 8-32 x 1 1/4" MOUNTING SCREWS, #8 NYLON THUMB NUTS, and #8 FENDER WASHERS to secure the speaker. Note For weak ceiling tile, CyberData offers a reinforcing mount (CyberData part number 010991A). •...

  • Page 86: Appendix B Setting Up A Tftp Server

    1. Install and start the software. 2. Select File Configure Security tab Transmit Only. 3. Make a note of the default directory name, and then move the firmware files to be uploaded to that directory. Operations Guide 930468A CyberData Corporation...

  • Page 87: Appendix C Troubleshooting/Technical Support

    To see a list of frequently asked questions for your product, go to the following URL: http://www.cyberdata.net/products/voip/digitalanalog/ceilingspkr2ptt/faqs.html C.2 Documentation The documentation for this product is released in an English language version only. You can download PDF copies of CyberData product documentation by going to the following URL: http://www.cyberdata.net/products/voip/digitalanalog/ceilingspkr2ptt/docs.html Operations Guide 930468A...

  • Page 88: Contact Information

    3 Justin Court Monterey, CA 93940 Attention: RMA "your RMA number" RMA Status Form If you need to inquire about the repair status of your product(s), please use the CyberData RMA Status form at the following web address: http://www.cyberdata.net/support/rmastatus.html Operations Guide...

  • Page 89: Warranty

    C.4.3 Spare in the Air Policy CyberData now offers a Spare in the Air no wait policy for warranty returns within the United States and Canada. More information about the Spare in the Air policy is available at the following web address: http://www.cyberdata.net/support/warranty/spareintheair.html...

  • Page 90: Return And Restocking Policy

    For End Users, please contact the company that you purchased your equipment from for their return policy. C.4.5 Warranty and RMA Returns Page The most recent warranty and RMA information is available at the CyberData Warranty and RMA Returns Page at the following web address: http://www.cyberdata.net/support/warranty/index.html...
  • Page 91 17 confirming IP address 21, 23 announcing a speaker’s IP address 21, 23 contact information 80 audio (buffered) 43 contact information for CyberData 80 audio configuration 44 Current Network Settings 33 night ring tone parameter 46 current network settings 33...
  • Page 92 75 installation, typical speaker system 2 IP address 11, 24, 33 pages (lengthy) 42 IP addressing 33 parts default #8 fender washers 75 IP addressing setting 11, 24 #8 nylon thumb nuts 75 Operations Guide 930468A CyberData Corporation...
  • Page 93 SIP operation 36 network link and activity 20 local SIP port 37 power on to speaker 20 user ID 36 speaker operations 29 SIP configuration 34 VoIP speaker assembly 77 SIP Server 36 volume boost 30 Operations Guide 930468A CyberData Corporation...
  • Page 94 & RMA returns outside of the United States 81 warranty & RMA returns within the United States 81 warranty and RMA returns page 82 warranty policy at CyberData 81 web access password 11, 24 web access username 11, 24...
