CyberData 11233 Operation Manual page 54

Table 2-13
Web Page Item
Enable Event Generation
Remote Event Server
Remote Event Server IP
Remote Event Server Port
Remote Event Server URL
Events
Enable Call Active Events
Enable Call Terminated Events
Enable Relay Activated Events
Enable Relay Deactivated Events
Enable Night Ring Events
Enable Multicast Start Events
Enable Multicast Stop Events
Enable Power On Events
Enable Security Events
Enable 60 Second Heartbeat Events
CyberData Corporation

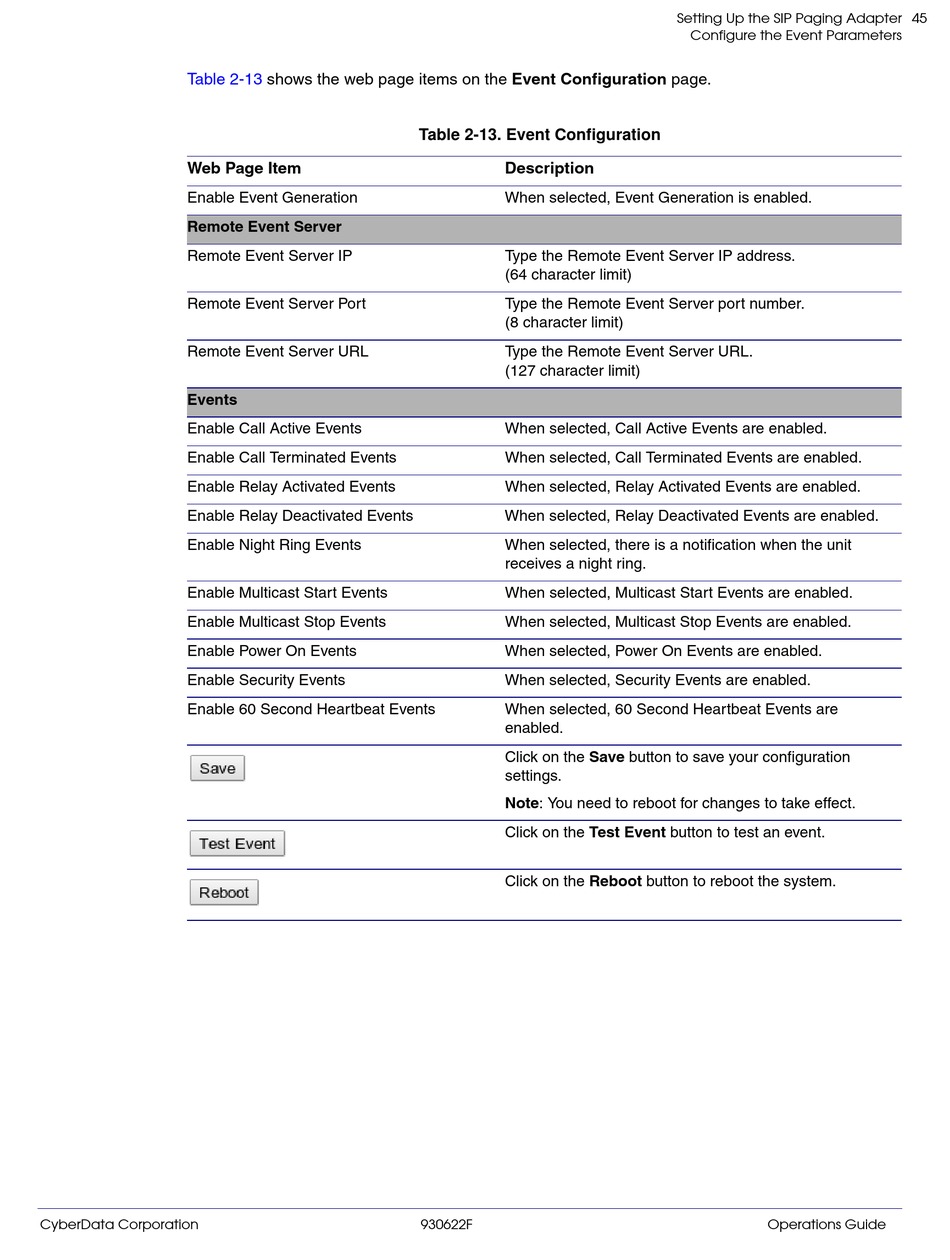

shows the web page items on the Event Configuration page.
Table 2-13. Event Configuration
930622F
Setting Up the SIP Paging Adapter
Description
When selected, Event Generation is enabled.
Type the Remote Event Server IP address. 
(64 character limit)
Type the Remote Event Server port number.
(8 character limit)
Type the Remote Event Server URL.
(127 character limit)
When selected, Call Active Events are enabled.
When selected, Call Terminated Events are enabled.
When selected, Relay Activated Events are enabled.
When selected, Relay Deactivated Events are enabled.
When selected, there is a notification when the unit
receives a night ring.
When selected, Multicast Start Events are enabled.
When selected, Multicast Stop Events are enabled.
When selected, Power On Events are enabled.
When selected, Security Events are enabled.
When selected, 60 Second Heartbeat Events are
enabled.
Click on the Save button to save your configuration
settings.
Note: You need to reboot for changes to take effect.
Click on the Test Event button to test an event.
Click on the Reboot button to reboot the system.
Configure the Event Parameters
Operations Guide
45
