1.2 Installation

Figure 1-2
Speaker
See the following sections for other installation options:
• Section 2.2.1.3, "Running the V2 Speaker with Auxiliary Power"
• Section 2.2.2.1, "V2 Speaker with an External Device"
• Section 2.2.2.2, "V2 Speaker with Auxiliary Speaker Connection"
• Section 2.2.2.3, "V2 Speaker with Line Out"

1.3 Product Features

Operations Guide

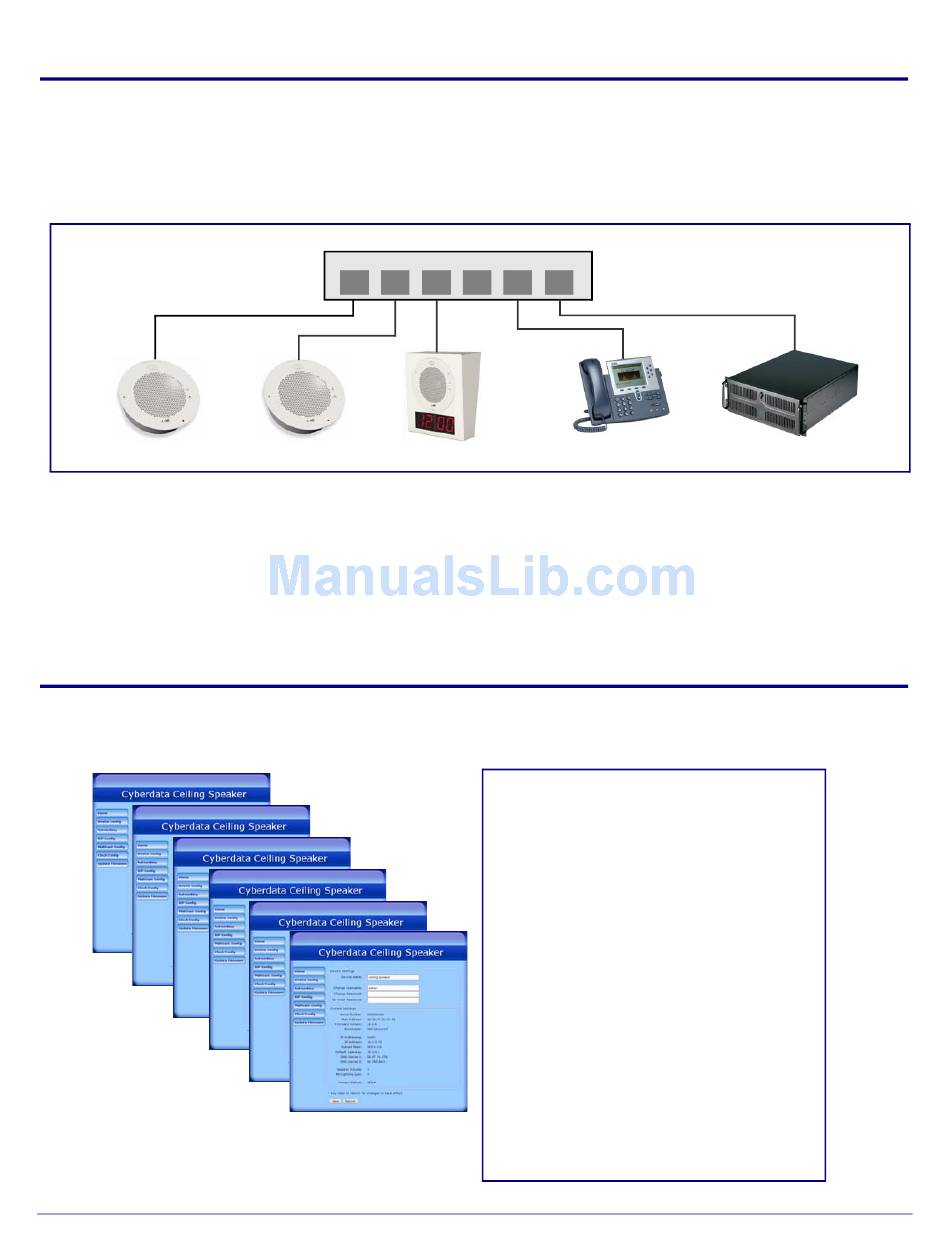

illustrates a typical configurations for the VoIP V2 Speaker.
Figure 1-2. Typical Installation
802.3af Compliant Ethernet Switch
1 2 3
Speaker Clock Kit
930274F
4 5 6
IP Phone
• SIP (RFC 3261) compatible
• Web-based configuration
• Web-based firmware upgradeable
• Autoprovisioning support
• Small footprint
• High efficiency speaker driver
• PoE 802.3af Enabled (Powered-over-
Ethernet)
• Network and external speaker volume
control
• Peer-to-peer capability
• User-uploadable ring and alert tones
• Auto detect for CyberData Clock kit
• Nightringer
• Buffered page
