To mount the speaker:
1. Use the TEMPLATE to cut the speaker hole and prepare holes for the screws
template is located on the back page of the Installation Quick Reference Guide that is delivered
with each speaker.
Plastic Ribberd Anchor (3x)
Operations Guide
Dry Wall Mounting Kit
#8 Nylon Thumb Nut (3x)
#8 Fender Washer (3x)
*Ceiling Tile or Dry Wall
*Optional Reinforcement Mount
P/N: 010991A (Sold Seperately)
Template
VoIP V2 Speaker
Assembly
Dry Wall Mounting Kit
#6 Screw (3x)
Ceiling Mounting Screw
#8-32x1 1/4" (3X)

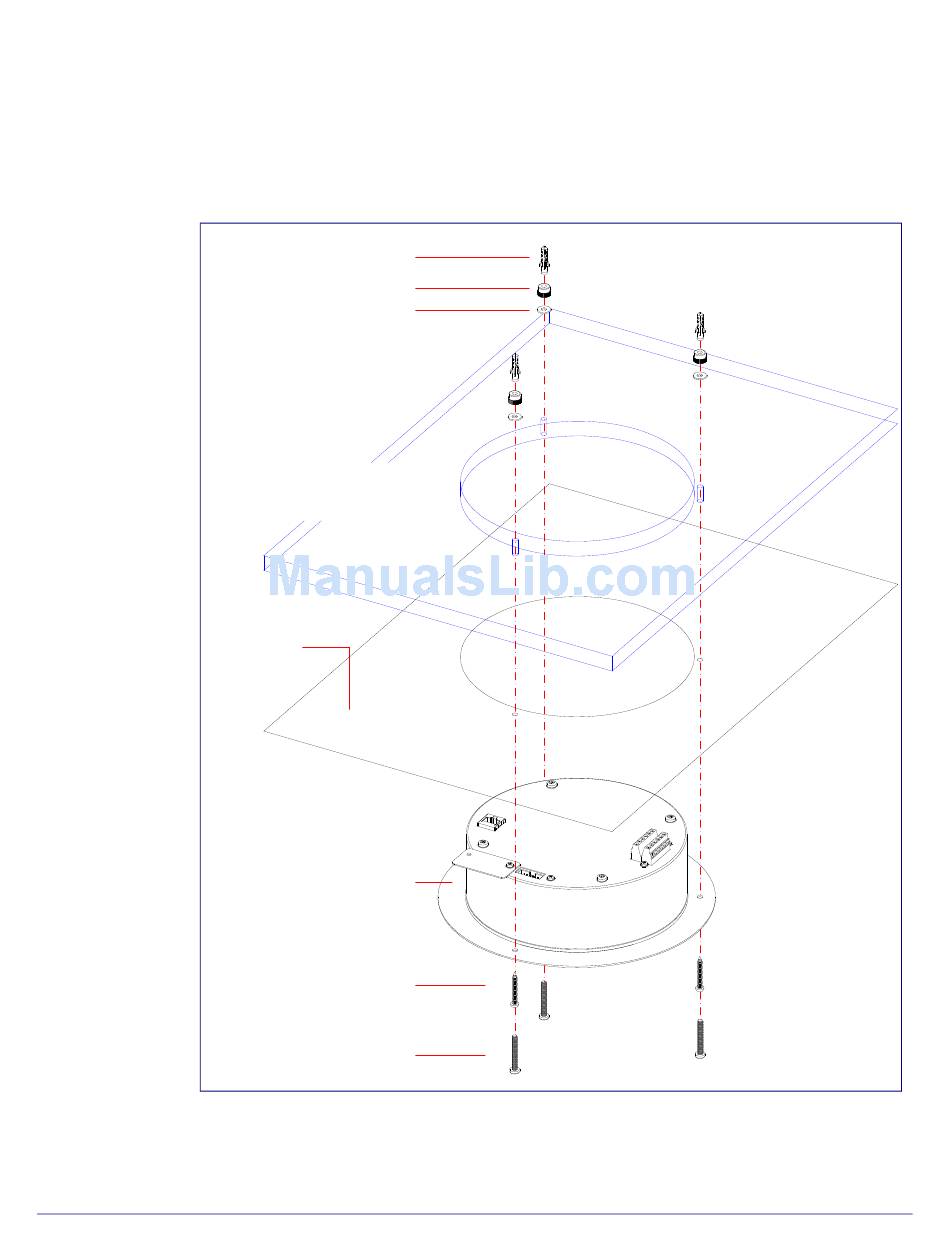

Figure A-1. VoIP Speaker Assembly
