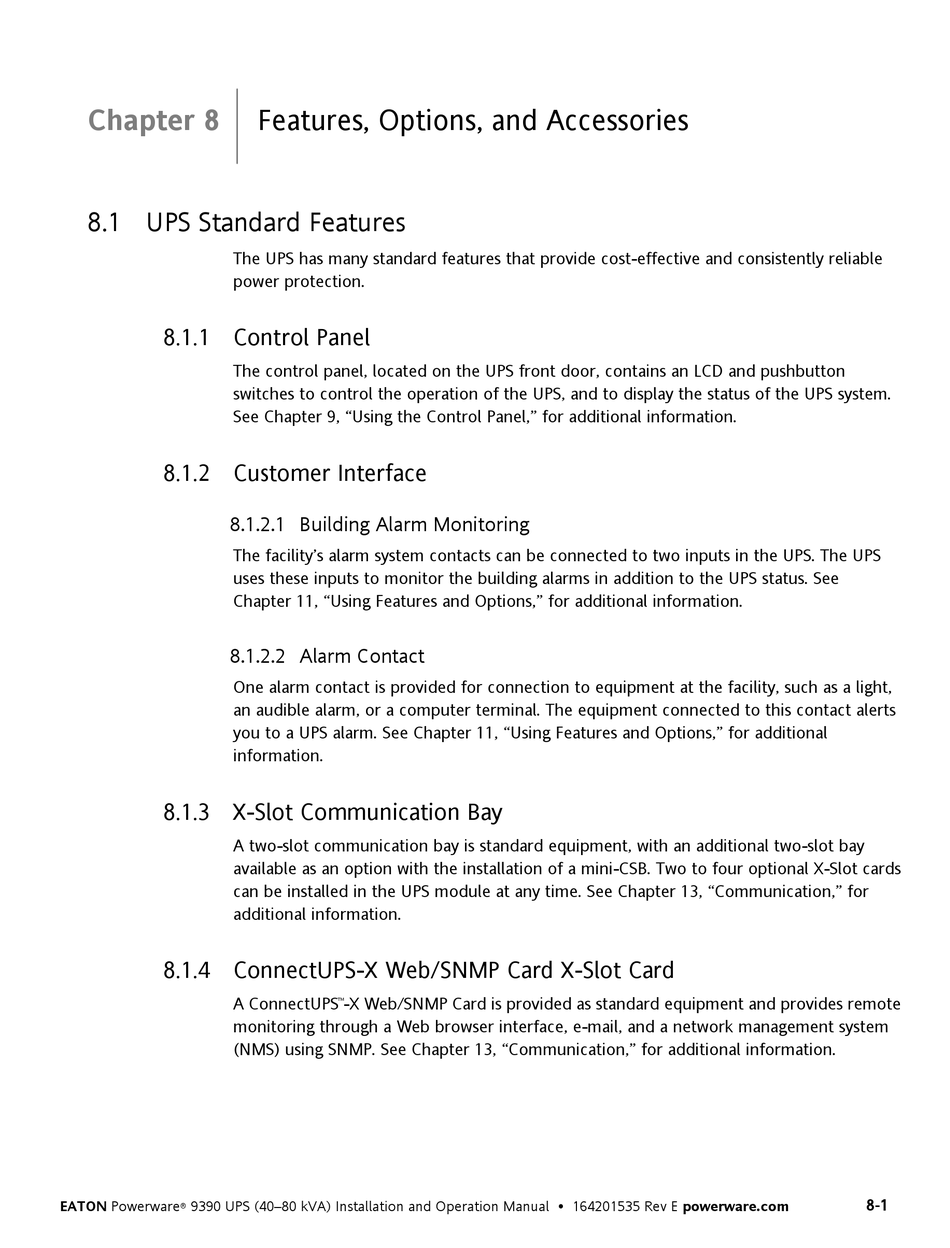

Chapter 8

8.1 UPS Standard Features

The UPS has many standard features that provide cost-effective and consistently reliable
power protection.

8.1.1 Control Panel

The control panel, located on the UPS front door, contains an LCD and pushbutton
switches to control the operation of the UPS, and to display the status of the UPS system.
See Chapter 9, "Using the Control Panel," for additional information.

8.1.2 Customer Interface

8.1.2.1 Building Alarm Monitoring

The facility's alarm system contacts can be connected to two inputs in the UPS. The UPS
uses these inputs to monitor the building alarms in addition to the UPS status. See
Chapter 11, "Using Features and Options," for additional information.

8.1.2.2 Alarm Contact

One alarm contact is provided for connection to equipment at the facility, such as a light,
an audible alarm, or a computer terminal. The equipment connected to this contact alerts
you to a UPS alarm. See Chapter 11, "Using Features and Options," for additional
information.

8.1.3 X-Slot Communication Bay

A two-slot communication bay is standard equipment, with an additional two-slot bay
available as an option with the installation of a mini-CSB. Two to four optional X-Slot cards
can be installed in the UPS module at any time. See Chapter 13, "Communication," for
additional information.

8.1.4 ConnectUPS-X Web/SNMP Card X-Slot Card

A ConnectUPS -X Web/SNMP Card is provided as standard equipment and provides remote
monitoring through a Web browser interface, e-mail, and a network management system
(NMS) using SNMP. See Chapter 13, "Communication," for additional information.
EATON Powerware 9390 UPS (40–80 kVA) Installation and Operation Manual S 164201535 Rev E powerware.com
®
Features, Options, and Accessories
t
8-1
