Select MAXIMUM LEVEL (KW) from the Current KW Demand Log Setup screen 2 menu to
display the Maximum Level (KW) Setup screen. The Maximum Level (KW) Setup screen
allows the KW limit of the event being monitored to be changed. Figure 9-19 shows the
Maximum Level (KW) Setup screen.
Use the
to change the character value. Once the new value is entered, press the DONE
pushbutton. The Maximum Level (KW) Setup Save screen is displayed.
EATON Powerware 9390 UPS (40–80 kVA) Installation and Operation Manual S 164201535 Rev E powerware.com
®
or pushbuttons to select the character position. Use the
MAXIMUM LEVEL (KW) SETUP
0000

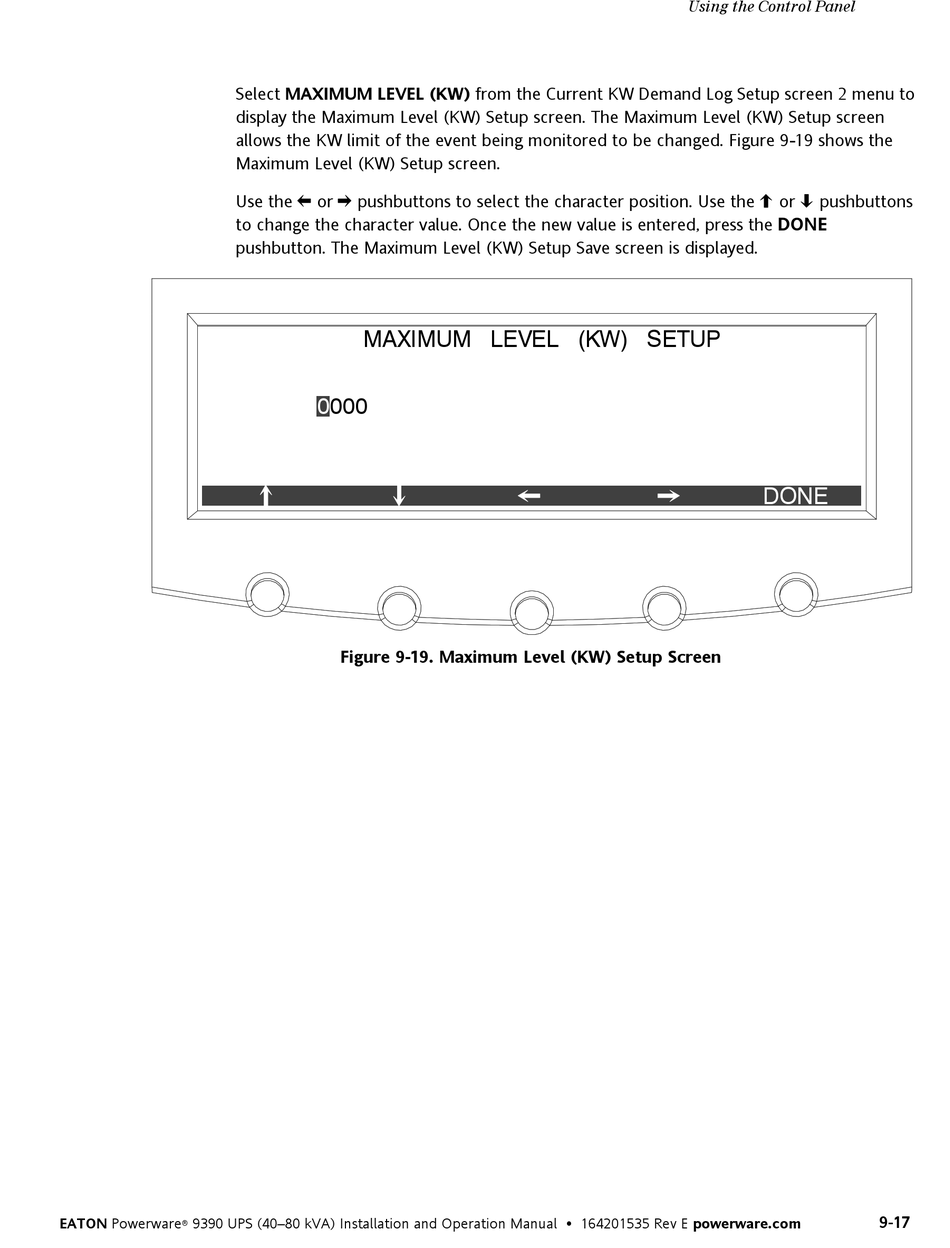

Figure 9-19. Maximum Level (KW) Setup Screen

Using the Control Panel
or pushbuttons
DONE
9-17
