Installation Information
NOTE: Metal shields covering wiring
terminals must be removed or
opened to gain access to
terminals.
A-30
EATON Powerware

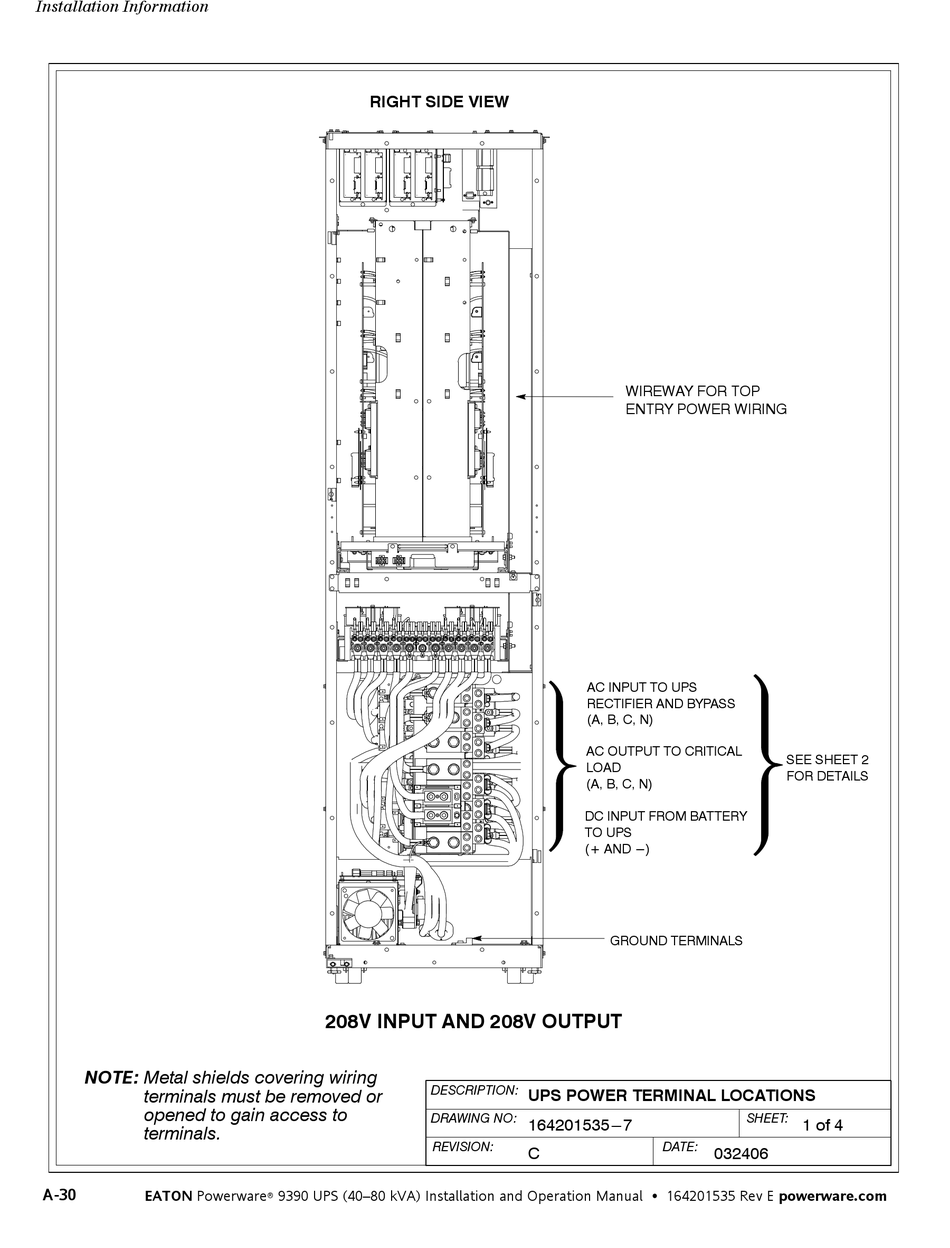

RIGHT SIDE VIEW
208V INPUT AND 208V OUTPUT
DESCRIPTION:
DRAWING NO:
REVISION:
9390 UPS (40–80 kVA) Installation and Operation Manual S 164201535 Rev E powerware.com
®
WIREWAY FOR TOP
ENTRY POWER WIRING
AC INPUT TO UPS
RECTIFIER AND BYPASS
(A, B, C, N)
AC OUTPUT TO CRITICAL
LOAD
(A, B, C, N)
DC INPUT FROM BATTERY
TO UPS
(+ AND ---)
GROUND TERMINALS
UPS POWER TERMINAL LOCATIONS
164201535---7
DATE:
C
SEE SHEET 2
FOR DETAILS
SHEET:
1 of 4
032406
