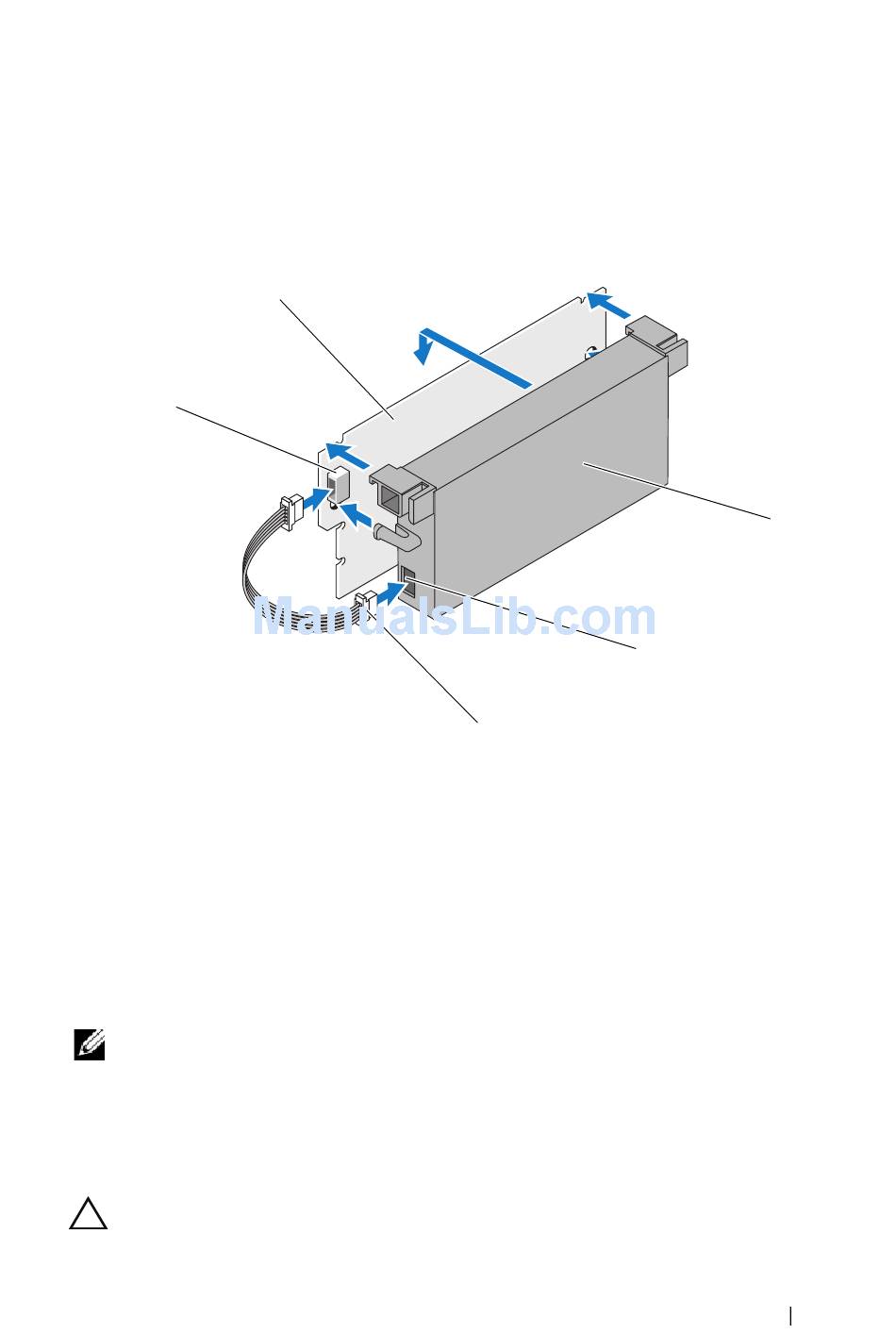

Figure 4-16. Installing the Battery and Battery Cable onto the DIMM
1
1 connector on the DIMM
3 battery
5 battery cable
Installing the TBBU or TNVC on a PERC H800
Adapter
NOTE:
Both the TBBU and TNVC on the PERC H800 Adapter consists of the DIMM
and a battery.
1 Check the battery attachment to the DIMM and battery cable connection.
For more information, see "Replacing the Battery and Battery Cable Onto
the DIMM of a PERC H800 Adapter" on page 60.
CAUTION:
Do not touch the gold leads and do not bend the memory module.
2
Installing and Configuring Hardware
4
5
2 DIMM
4 connector on the battery
3
