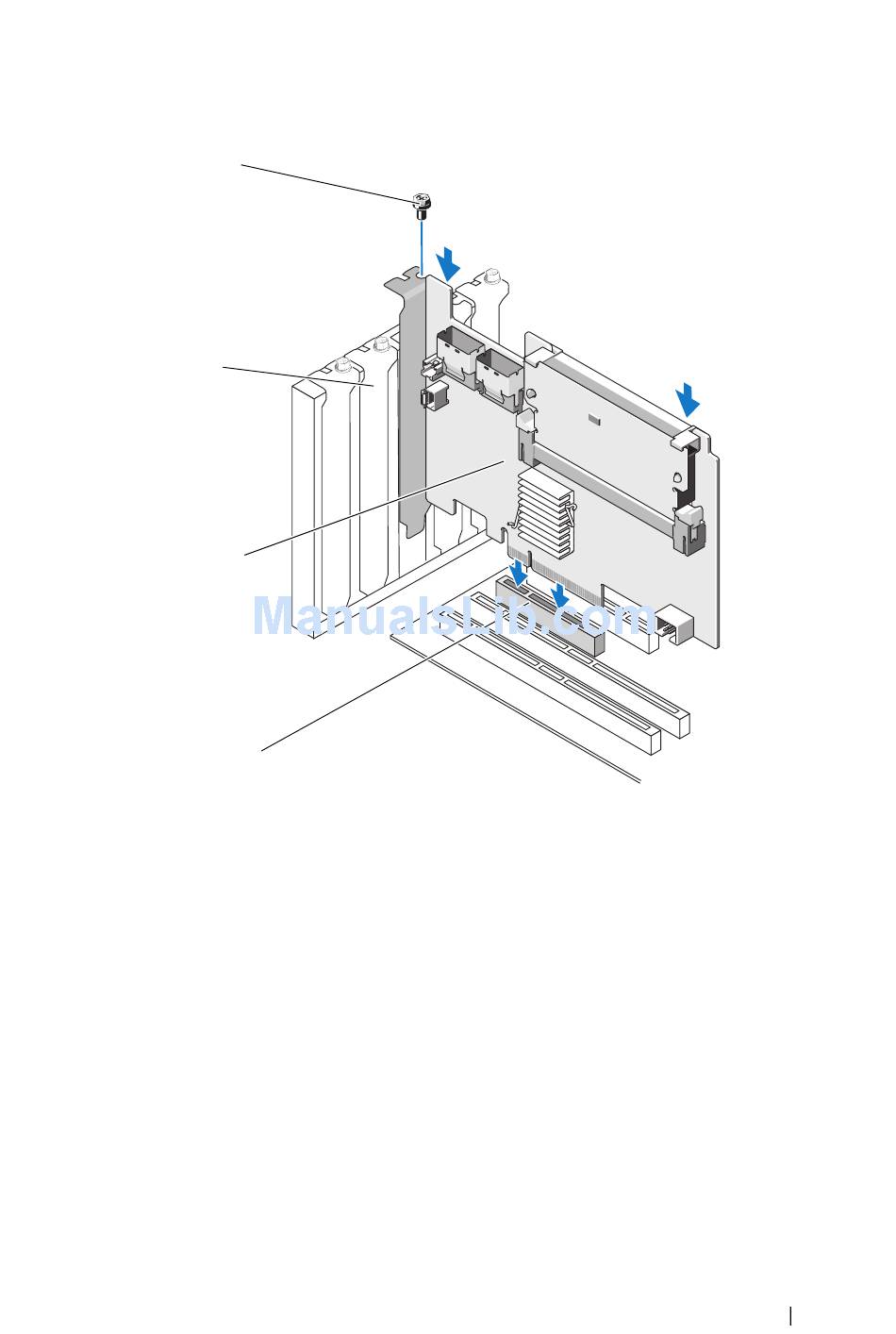

Figure 4-2. Installing a PERC H700 Adapter
4
3
2
1 PCI-e slot
3 filler brackets
7 Tighten the bracket screw, if any, or use the system's retention clips
to secure the controller to the system's chassis.
8 Replace the cover of the system. For more information on closing the
system, see the Hardware Owner's Manual shipped with your system or at
support.dell.com/manuals.
9 For the PERC H800 adapter, connect the cable from the external enclosure
to the controller. For more information, see Figure 4-3.
1
2 PERC H700 adapter
4 bracket screw
Installing and Configuring Hardware
