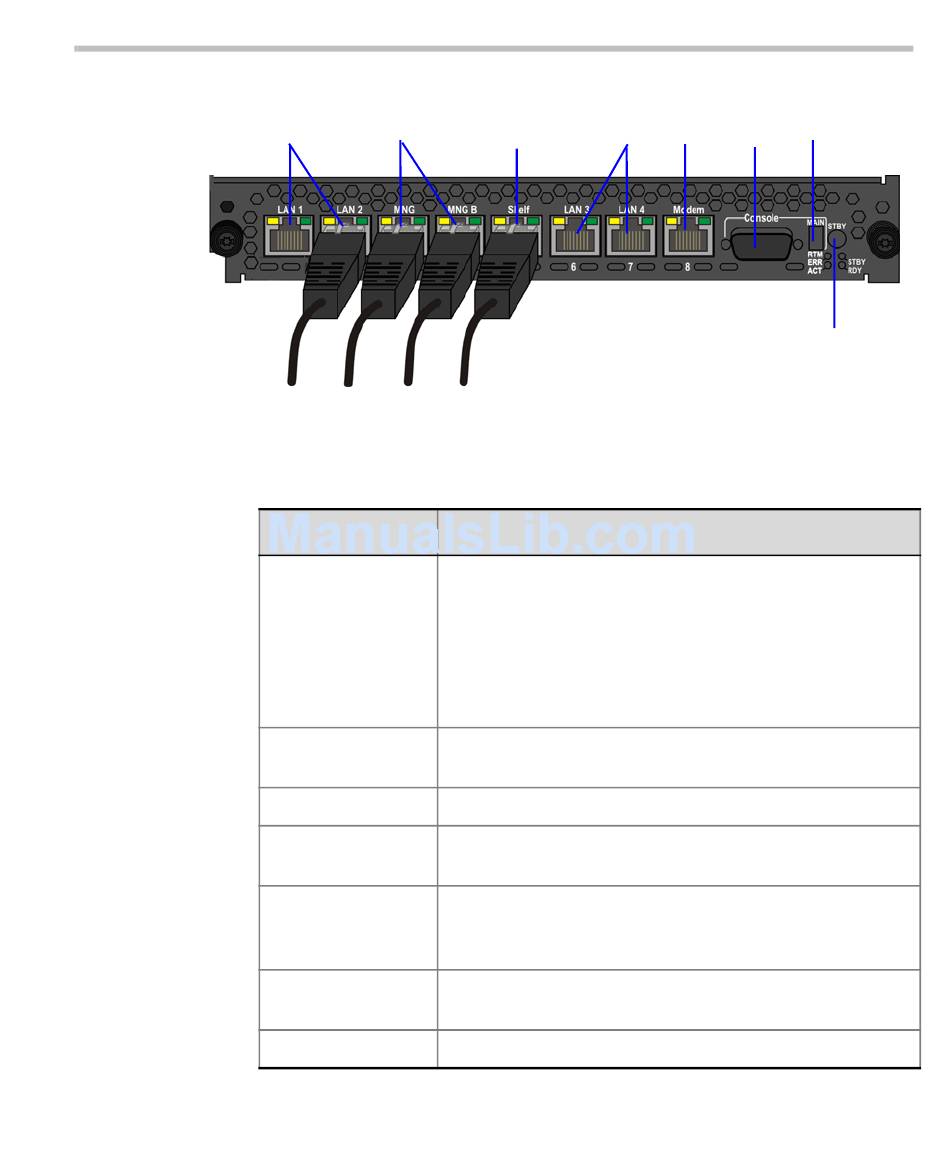

Figure 1-3 RMX 1500 RTM IP Rear Panel Layout
The following items appear on the RMX 1500 rear panel:
Table 1-7 RMX 1500 Rear Panel - RTM IP 1500 Component Description
Item
LAN 1 port
LAN 2 port
MNG port
MNGB port
LAN 3/4 ports
Shelf (Manager)
port
Modem port
Shelf NA
connection
LAN3, LAN 4 and the Serial
ports are only for debugging and not
for customer use
Description
Optional LAN (Media) Connection. With Multiple networks
and LAN redundancy configurations, LAN 1 port is used.
One Media IP address is available. Always use LAN 2
port if using a single LAN network connection. For more
information, see the RMX 1500/2000/4000
Administrator's Guide, "LAN Redundancy" on page 14-
92.
LAN (Media) Connection. One Media IP address is
available.
Signaling connection.
Management connection for Web Client and RMX
Manager.
Not Available (NA).
Note: LAN 3/4 are covered with a plastic cap that should
not be removed.
(Optional) Shelf Manager connection.
Internal IP connection, for debugging purposes only.
Modem Serial
Main RS 232
Port Port
Switch
Standby button
