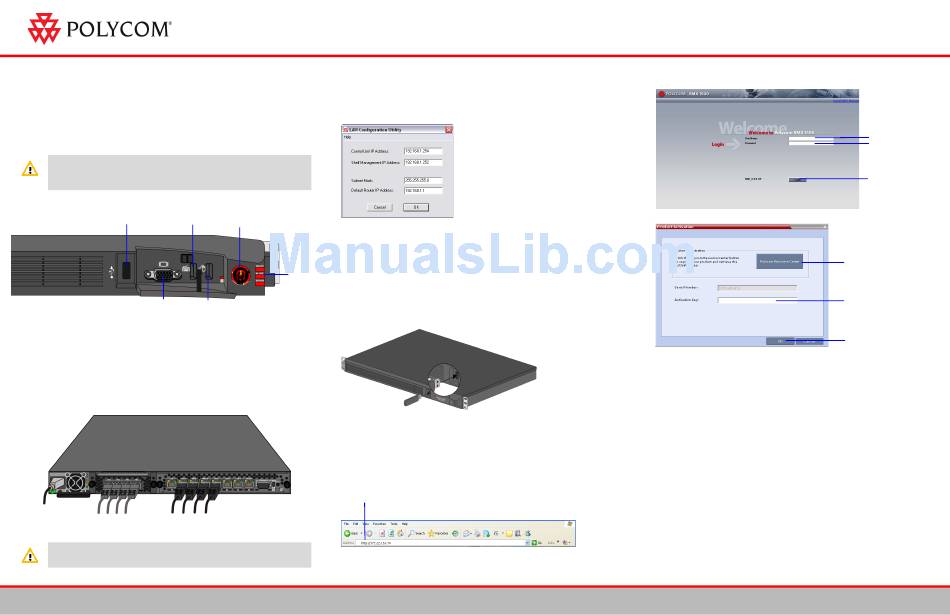

Polycom DOC2565A Installation & Quick Start Manual

RMX
Installation Quick Start Guide for

RMX 1500

Basic Setup

Before installing the RMX 1500 and performing the Basic Setup, please read the
General Safety Precautions described in the Polycom RMX 1500 Hardware Guide.
For a detailed description of Unpacking and Rack mounting instructions, see
the Polycom RMX 1500 Hardware Guide.
USB Slot
Keyboard Slot
VGA Slot
1 Insert the power cable into the power connector on the rear panel of the RMX 1500.
2
Connect the Media cable to LAN 2 port.
3 Connect the network cables to the MNG (Signaling) port & MNGB (Management
Network) port.
4
(Optional.) Connect the Shelf Management cable to the Shelf port.
5 (Optional.) Connect the E1/T1 cables to their PRI (1-4) ports.
Power
E1/T1 PRI LAN 2
Cable
Connection(s) Connection
The LAN3 & LAN4 ports are not be used and the plastic caps covering those ports
should not be removed.
1
1500
®
1 Insert the USB key provided with your system into the PC workstation and double-
click LanConfigUtility.exe to start the utility.
ON/OFF
button
2
Modify the parameters in the utility's dialog box using the information supplied by
your network administrator.
3 Click OK.
4 Remove it from the PC.
Front
LEDs
First-time Power-up and Connection to MCU
1
Insert the USB key containing the modified IP addresses in the USB port on the
Mouse slot
RMX's front panel.
2 Power the RMX ON.
The parameters in the lan.cfg file are uploaded from the USB key to the RMX's
memory and applied during the power-up sequence.
System power-up sequence may take up to five minutes.
During the first-time power-up the red ERR LED on the RMX's front panel remains
ON until both the Management and IP Network Services have been defined.
3
Remove the USB key.
Enter the IP address of the RMX Control Unit and press Enter.
MNG/MNGB
Connections
4
Modifying the USB Key Settings
5
6
Enter POLYCOM.
Enter POLYCOM.
Click Login.
Click to connect to Polycom
web site and register the
RMX.
Click Product Registration
and follow the on screen
instructions to obtain the
Product Activation Key.
Enter or paste the Product
Activation Key obtained.
Click OK.
.
