Chapter 1-Hardware Description

RMX 1500 Rear Panel

1-16

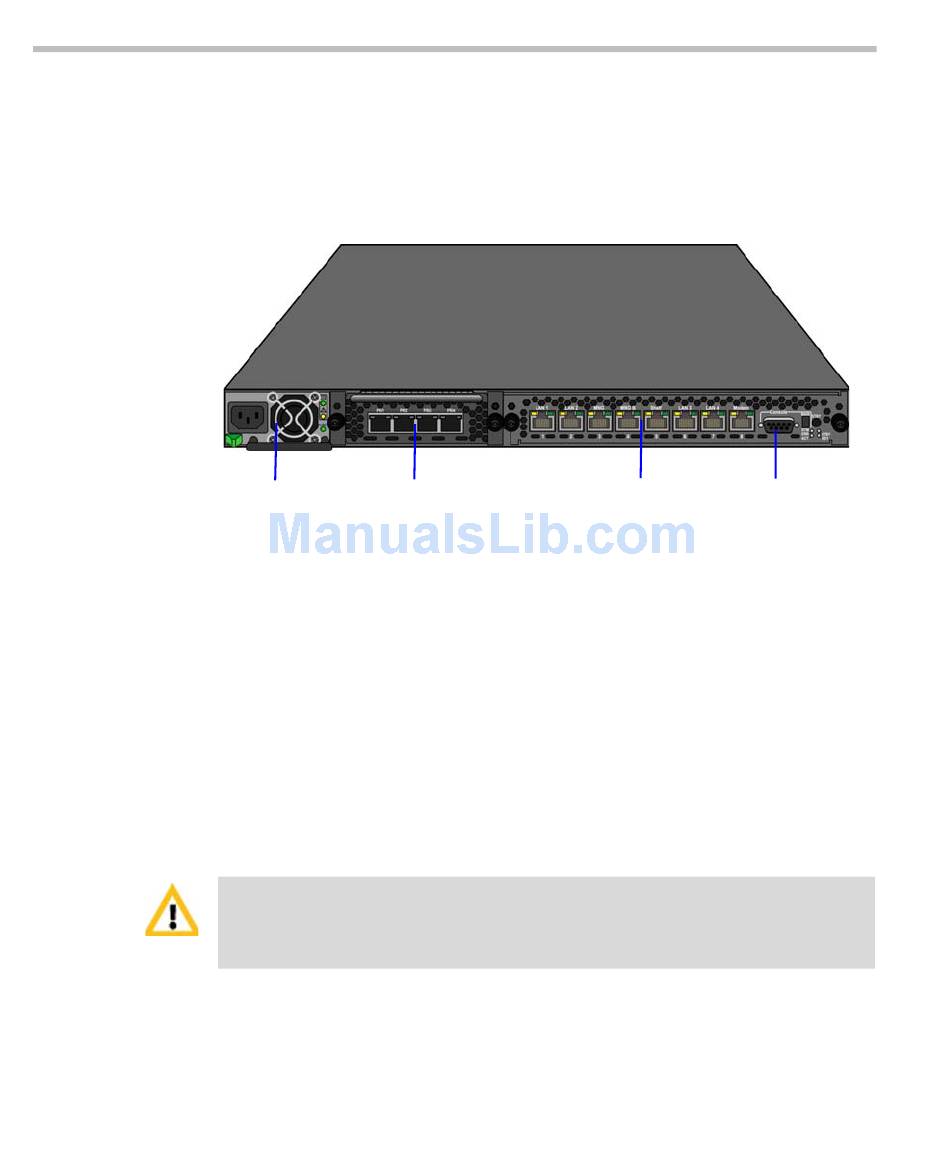

The RMX 1500 rear panel contains the RTM IP 1500 and optionally, the
RTM ISDN 1500. In addition, the rear panel houses the power supply with
fan & AC inlet, and Serial port.
Power Supply
RTM ISDN 1500
with built in Fan

RTM IP 1500

This card contains an Ethernet Switch that manages the network of the
system, routes data between the cards and components of the system and
provides connectivity to external IP networks. It controls and monitors
the system fans and regulates power supply.
The RTM IP 1500 connections include:
• 2 signalling & media ports
• 2 ethernet management ports
• Shelf (Manager) port
• Modem
• 1 Serial port
The LAN 1*, LAN3, LAN4 and Modem ports are not be used and the plastic
caps covering those ports should not be removed.
*With Multiple networks and LAN redundancy configurations, LAN 1 port is
used.
Serial
RTM IP 1500
Slot
