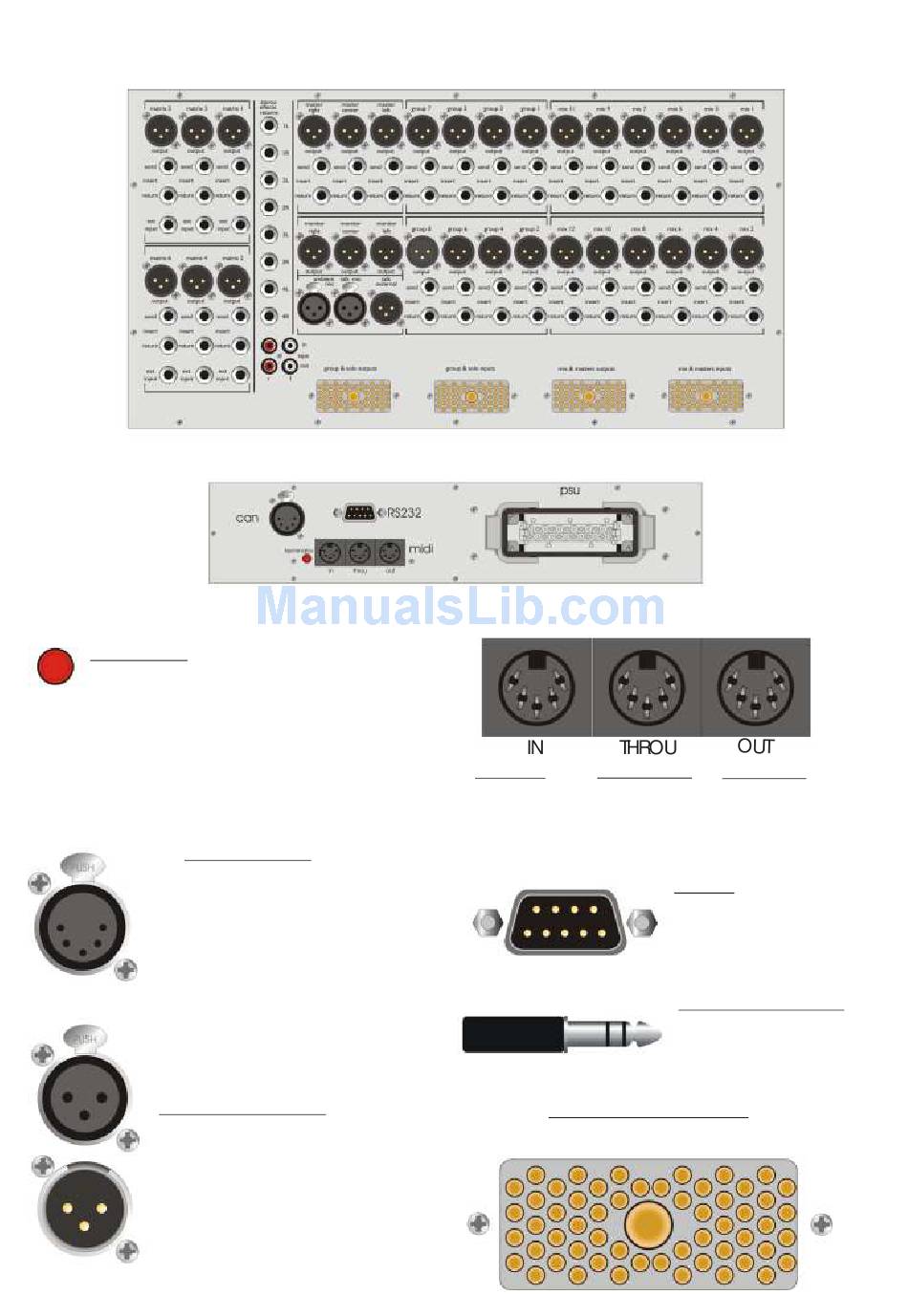

LEGEND 3000 CONNECTORS
Terminator
Consoles can be linked using the
Midas Can Bus. Depressing the
terminator defines the end of the
chain and prevents any possible
unwanted signal being sent back
up the chain.
CAN
BUSS
Input / Output XLR
Pin 1: Ground
Pin 2: Hot
Pin 3: Cold
Midas Can Bus
Pin 1: +18V (100mA max)
Pin 2: Can low
Pin 3: OV Can
Pin 4: Can High
Pin 5: -18V(100mA max)
MIDI In MIDI Thru
Pin 2: Ground Pin 2: Ground
Pin 4: In+ Pin 4: In+
Pin 5: In- Pin 5: In-
56 Way Edac Connector
(see page 41for wiring details
MIDI Out
Pin 2: Ground
Pin 4: In+
Pin 5: In-
RS-232
Pin 2: Receive Data
Pin 3: Transmit Data
Pin 5: GND
Input Send / Return
Tip: Hot
Ring: Cold
Sleeve: Ground
)
