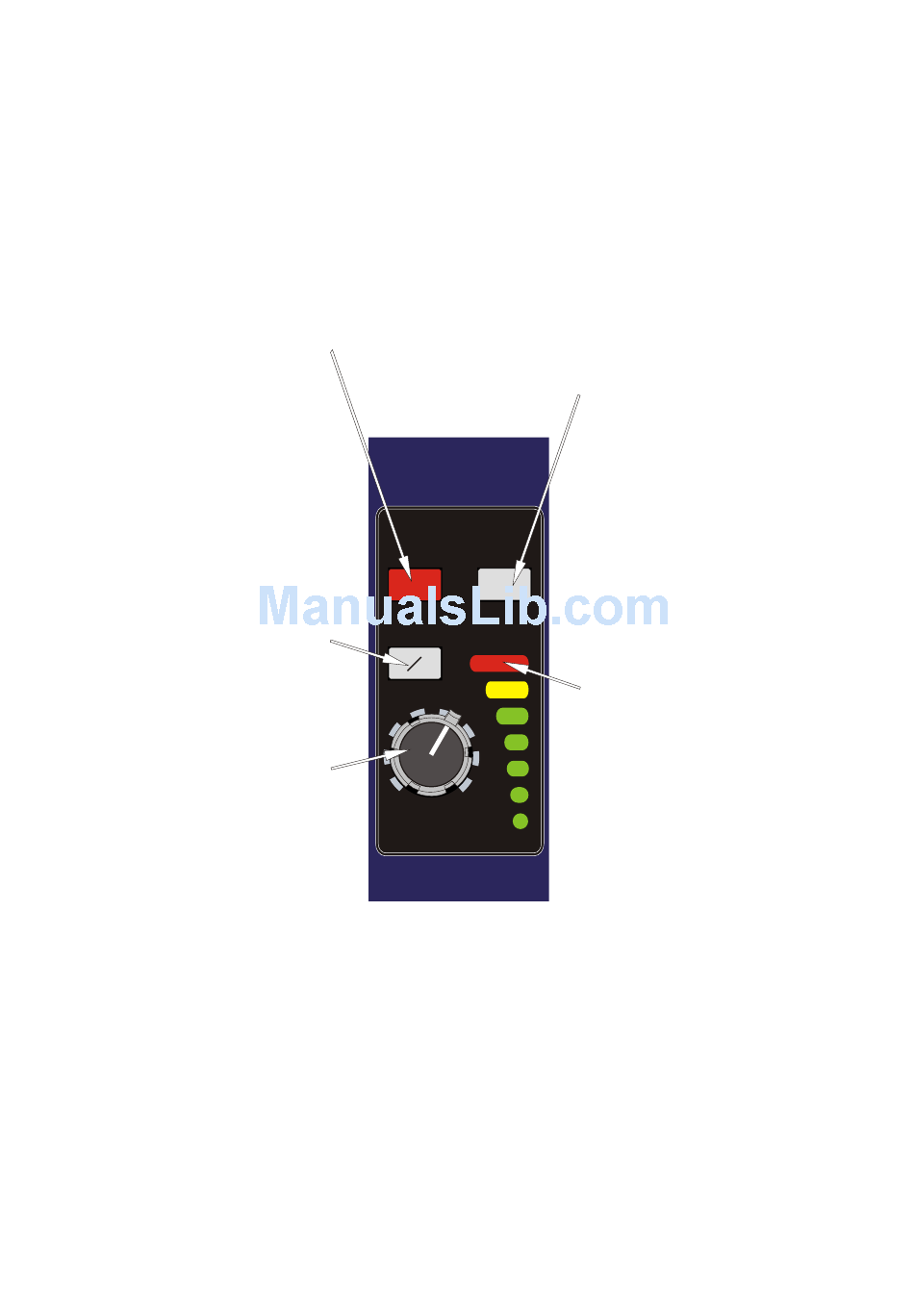

Input Pod

The 48V switch connects 48 volt
phantom power to the XLR mic input
connector. This is suitable for a
condenser microphone or DI box. A
parallel line input is also provided via a
jack which is protected from application
of 48V.
There is a global disable for the 48V on
the Talk Back section -see page12.
Note:- Connecting a jack plug disconnects the
XLR input.
The PHASE switch activates a 180
degrees phase change within the input
amplifier.
The GAIN control gives continuous
adjustment of the input amplifier gain
from + 15dB to + 60dB.
48V PAD
12
O
6
+25 +35
3
0
3
6
+15 +60
-15
18
gain
2
The PAD switch gives 30dB of
attenuation to the input signal which will
allow the connection of high output
microphones or line level signals.
The METER monitors the peak signal
level of the main (FOH) input channel
pre fader signal path.
