13.3. Shock

Drop Test (without packaging)

13.3.1.
No malfunction occurred after the following drop test.
Drop Test: Drop the scanner from a height of 150 cm onto a concrete floor three
times on each of 5 sides.

Drop Test (with individual packaging)

13.3.2.
No malfunction occurred after the following drop test.
Drop Test: Drop the scanner from a height of 150 cm onto a concrete floor on
each of one corner, three edges, and six sides (10 drop tests in total)..

13.4. Vibration Strength

No malfunction occurred after the following vibration test.
Vibration test: Increase the frequency of the vibration from 10 Hz to 100 Hz with
accelerated velocity 19.6 m/s
routine in each X, Y, Z direction once for 60 minutes each.

13.5. Dust and Drip Proof

IEC IP42

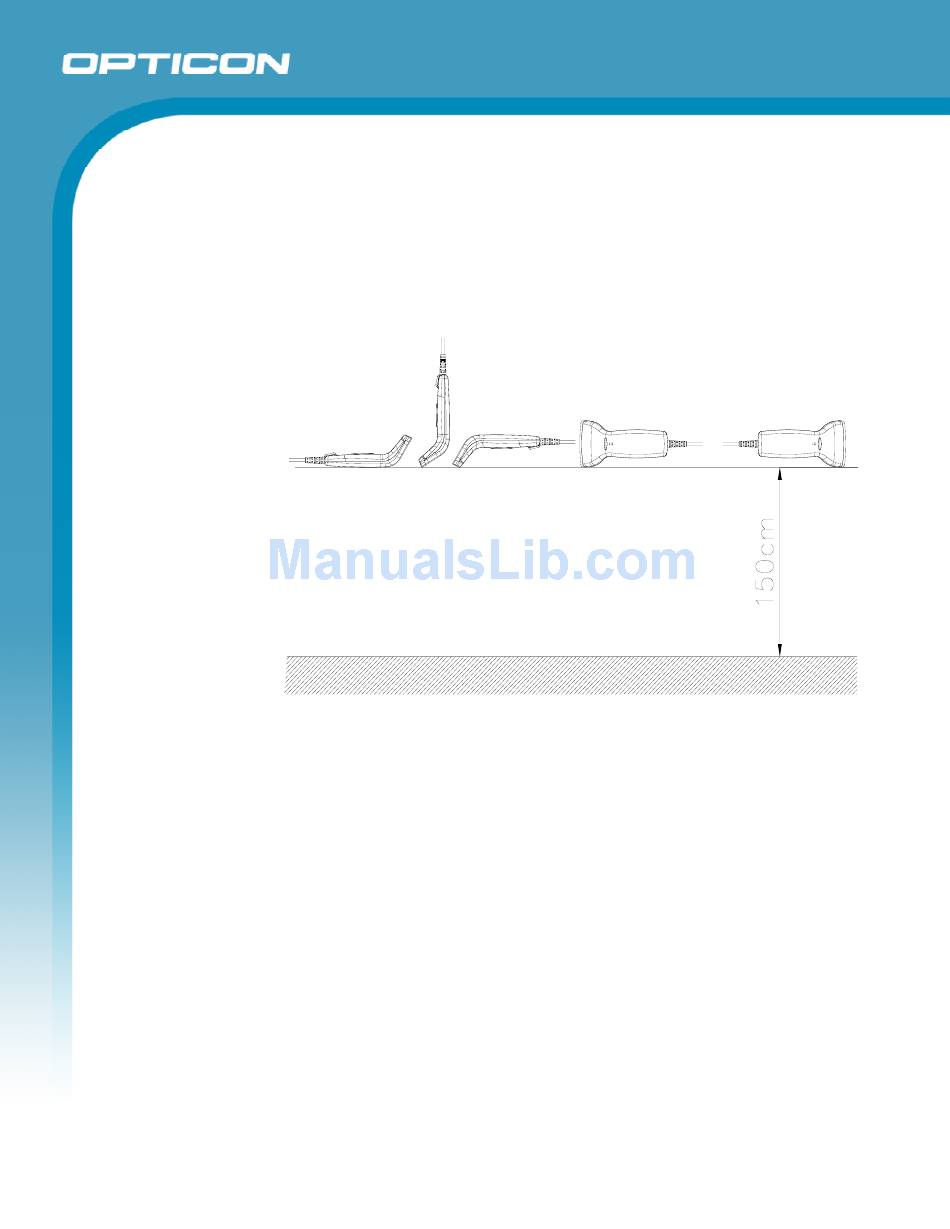

Figure 23: Drop test
