Opticon LGZ 7225 User Manual

Long range handheld ccd scanner
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

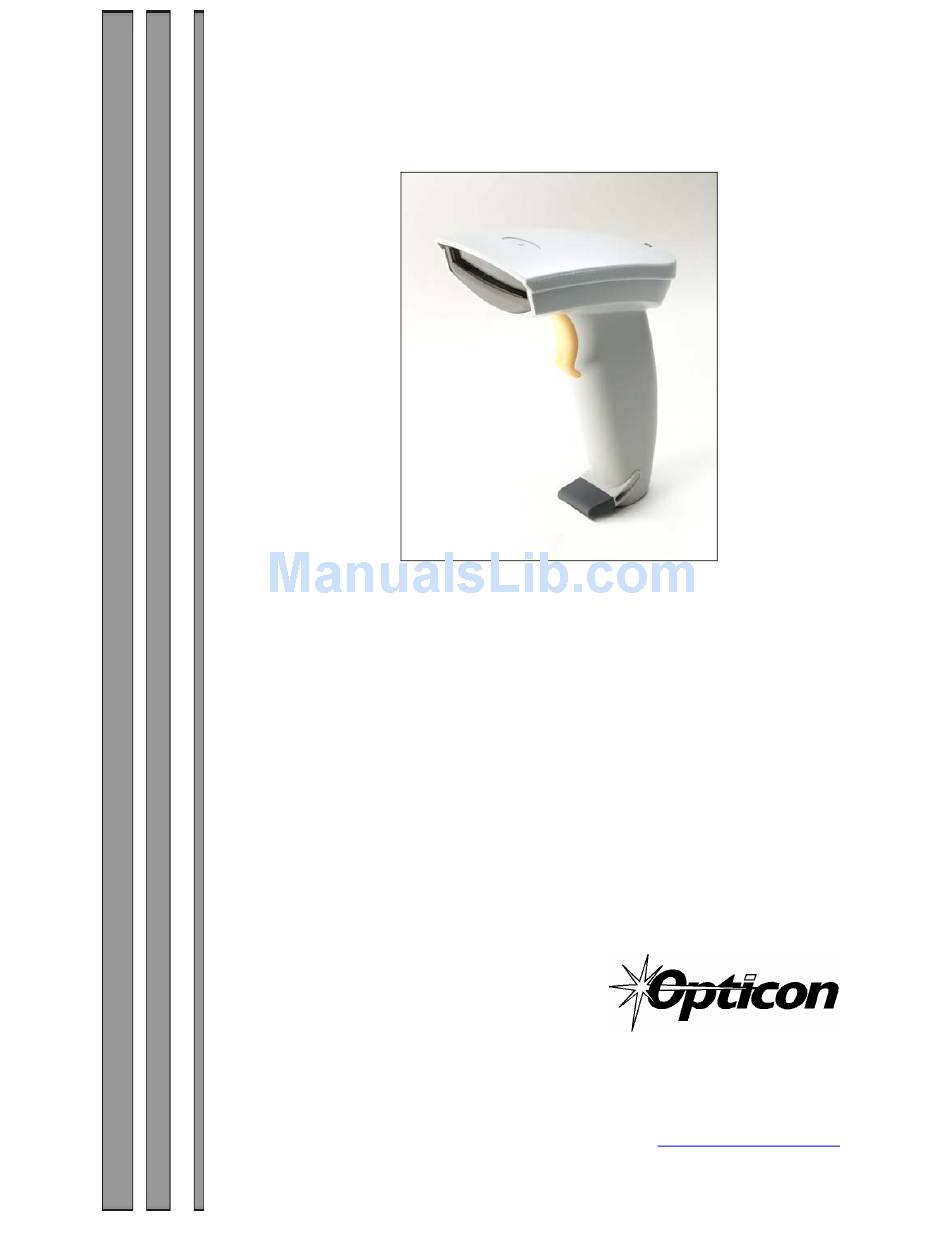

User's Manual
LGZ 7225
Long Range Handheld
CCD Scanner
25-ULGZMU01-01
Keyboard Wedge Interface
USB Interface
RS232 Interface
Orangeburg, NY 10962
1
8 Olympic Drive
Tel 800.636.0090
Fax 845.365.1251
www.opticonUSA.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LGZ 7225 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Opticon LGZ 7225

Summary of Contents for Opticon LGZ 7225

  • Page 1 User’s Manual LGZ 7225 Long Range Handheld CCD Scanner 25-ULGZMU01-01 Keyboard Wedge Interface USB Interface RS232 Interface 8 Olympic Drive Orangeburg, NY 10962 Tel 800.636.0090 Fax 845.365.1251 www.opticonUSA.com...

  • Page 2: Table Of Contents

    Contents General Information Unpacking Opticon Customer Service and Support Installation Default Settings Interface Selection Scanning Modes Beeper Settings Symbology Options Prefix/Suffix Strings Transmission Setting Parameter Settings List Programming Bar Codes...

  • Page 3: Getting Started

    Getting Started General Information The LGZ 7225 CCD Scanner utilizes state-of-the art imaging technology similar to that found in digital cameras, fax machines and video camcorders. The captures an “image” of the bar code and converts it into digital signals that the host computer understands.
  • Page 4 LGZ7225 Long Range Handheld CCD Spec Cable - K/B Wedge Cable - universal type Connector type Case material Cushion material Electrical Input Voltage Power - Operating Power - Standby Current - Operating Current - Standby DC Transformers Agency listing Environmental Operating Temperature Storage Humidity...
  • Page 5 Default Setting for each barcode shown as below: Code Type Read UPC-A UPC-E EAN-13 EAN-8 Code-39 Interleaved 2of5 Industrial 2of5 Matrix 2of5 Standard 2of5 China Post Codabar Code-128 Code-93 Code-11 MSI/Plessey UK/Plessey Telepen Italian Pharmaode. Checksum Checksum Verifacation Transmission Code ID &...
  • Page 6 Decoding option Decoding characteristics option Transmitted character delay, Header selection, trailer selection, message suffix, good read beep tone and volume, scanner trigger selection Keyboard emulation type (intermessage delay, keyboard type and keyboard language) Serial interface type (ACK/NAK, Xon/Xoff, RTS/CTS, good read LED...
  • Page 7 LGZ7225 To program the LGZ7225 you must scan a series of programming barcode in the correct order. Fold out the back cover of this manual. You will see a table of alphanumeric barcodes, which are used to program the various options presented.
  • Page 8 Program Barcode Program Option Bar Code Option Alphanumeric Entry Keyboard Wedge Interface RS-232 selection Wand emulation Keyboard/RS-232 Auto detection reserved Exit Option Barcode Back Fold Out Exit Barcode Finish barcode...

  • Page 9: Interface Selection

    Interface selection: You can change factory interface default for other type interface. By plugging different cables, setting correct interface, then the scanner will be changed to another interface. However, you must make sure which cable you need.

  • Page 10: Keyboard Wedge

    Keyboard wedge As a keyboard interface, the scanner supports most of the popular PCs and IBM terminals. The installation of the wedge is a fairly simple process without any changes of software or hardware. Keyboard Type: Select keyboard type connector of your host computer.
  • Page 11 Keyboard Speed: By selecting, you can change output speed of scanner to match with host computer. Generally, set 00 or 01 in working high speed. If some output characters of barcode have been lost, you may need to set 05 or 06 to match your host keyboard speed.
  • Page 12 Belgium Keyboard layout Danish France Germany Italian Portuguese Spanish Swedish Switzerland Latin American 0 : high clock rate Keyboard speed 8 : low clock rate Disable Enable Function key Alphabetic key Numeric keypad Numeric key (Num lock state only) Alt+Keypad 00-08 Exit...
  • Page 13 Keyboard wedge Caps Lock: By selecting Caps Lock or No Caps Lock, scanner can get Caps Lock status. Power-on simulation: All of the PCs check the keyboard status during power-on selftest. It is recommended to Enable function if you are working without keyboard installation. It simulates keyboard timing and pass keyboard present status to the PC during power-on.
  • Page 14 Program Option Bar Code Option Alphanumeric Caps lock”ON” Caps lock”OFF” Caps lock Disable Enable Power-on simulation 00-99 msec Inter-character delay 00-99 10 msec Block transmission delay Entry 00-99 00-99 Exit...
  • Page 15 5 warning beeps. Xon/Xoff- When the host computer is unable to accept data, it sends a Xoff code to inform the scanner to suspend data transmission, and Xon to continue. ACK/NAK- When the ACK/NAK protocol is used, the...
  • Page 16 Program Option Bar Code Option Alphanumeric None RTS/CTS Flow control Xon/Xoff ACK/NAK 00-99 (msec) Inter-character delay 00-99 (10 msec) Block transmission delay 00-99 (100 msec) Response delay Entry 00-99 00-99 00-99 Exit...
  • Page 17 Program Option Bar Code Option 300 BPS 600 BPS Baud rate 1200 BPS 2400 BPS 4800 BPS 9600 BPS 19200 BPS 38400 BPS None Parity Even 8 bits 7 bits Data bit One bit Two bits Stop bit Alphanumeric Entry Exit...

  • Page 18: Wand Emulation

    Wand Emulation Bar/space polarity: High/low- Black will be transmitted as a high voltage level (+5) and space as low level (0V). Low/high- Black will be transmitted as a low voltage level (0V) and space as high level (+5). Initial polarity: You must make sure what is Initial polarity of your wand decode device in stand-by (idle).
  • Page 19 Wand Emulation Output speed: This setting is same as serial transmission baud rate, and it must be approbated your wand decode resolution. The unit of speed is a width of minimum narrow bar. Margin delay: It is a timer of zone like space zone of barcode label margin.
  • Page 20 Reserved Reserved 00-99 (10 pixel) Margin delay 00-99 (10 msec) Transmit delay 00-99 00-99 Exit...

  • Page 21: Scanning Modes

    Same Barcode delay time: If the barcode has been scanned twice, then only the first barcode will be accepted. Double confirm: If it is enabled, the scanner will require a several times successful decoding to confirm the barcode data. The more confirming times required the more inhibitive miss-reading code will be shown.
  • Page 22 Program Option Bar Code Option Alphanumeric Good-read off Momentary Scanning mode Alternate Timeout off Continue 01-99 (second) Stand-by duration 01-99 (10 msec) 01-99 Same barcode delay time 00-99 (00: no double Double confirm confirm) Entry 00-99 00-09 Exit...
  • Page 23 Scan Multi field scan: The scanner can be read many sets of barcode data on the same scanning line at the same time, even if they are different kinds of barcode symbology. Global min./max. code length: Global Minimum and Maximum length can be set to qualify data entry. The length is defined as the actual barcode data length to be sent.
  • Page 24 Disable Enable Multi field scan 00-63 Global min. code length 00-63 Global max.code length Disable Enable Inverted image scan Disable Enable CTS trigger Disable 30 second Position indication 60 second 90 second 120 second 150 second 180 second Continue 00-63 04-63 Exit...
  • Page 25 Power on alert: After power-on the scanner it will generate an alert signal to indicate a successful self-test. LED indication: After each successful reading, the LED above the scanner will light up to indicate a good barcode reading. Buzzer indication: After each successful reading, the...
  • Page 26 Program Option Bar Code Option Alphanumeric Disable Enable Power on alert Disable Enable LED indication Disable Enable Buzzer indication 00-07 Beep loudness 00-99 (100Hz) Beep tone freq. 00-99 (10 msec) 00-99 Beep tone duration Entry 00-07 00-99 Exit...
  • Page 27 ID, you must set Code ID transmission to Enable first. Refer to Code ID transmission. Insertion group selection: The scanner offer one or two insertion group for own symbology. By setting one or two digits to indicate which insertion group you want to insert.
  • Page 28 Disable Enable Check-sum verification Disable Enable Check-sum transmission 00-64 Max.code length 00-64 Min.code length 0-15 Truncate leading 0-15 Truncate ending 00-ffH ASCII code Code ID setting 00-44 Insert group selection 00-64 00-64 00-15 00-15 00-ffH < A > 00-44 Exit...
  • Page 29 UPCA Supplement digits: The Supplement digits barcode is the supplemental 2 or 5 characters for WPC code. Format Supplement Digits Leading Data Digits Check 2 or 5 or Zero (11 Digits) Digit UCC / EAN Truncate Leading zero: The leading “0” digits of UPCA data characters can be truncated when the function is enabled.
  • Page 30 UPCE Read: Format Leading Data Digits (6 Zero Digits) Check-sum verification: The checksum of EAN-13 is optional and made as the sum of the numerical value of the data digits. Check-sum transmission: By setting Enable, checks sum will be transmitted. Program Option Bar Code Option...
  • Page 31 UPCE Truncate leading/ending: Refer to Truncate leading/ending of UPCA. Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refer to Insertion group selection of UPCA. Supplement digits: Format Supplement Digits Leading Data Digits Check Zero (6 Digits) Digit Truncate Leading zero: Refer to Truncate Leading zero of UPCA.
  • Page 32 0-15 Truncate ending 00-ffH ASCII code Code ID setting 00-44 Insert group selection None 2 digits Supplement digits 5 digits UCC/EAN 128 Auto detection Disable Enable Truncate Leading zero Disable Enable Expansion 00-15 00-ffH < E > 00-44 Exit...
  • Page 33 EAN-13 Read: Format Data Digits (12 Digits) Check-sum verification: The checksum of EAN-13 is optional and made as the sum of the numerical value of the data digits. Check-sum transmission: By setting Enable, checks sum will be transmitted. Max./Min. code length: Each symbology has own Max./Min. Code Length.
  • Page 34 Disable Enable Check-sum verification Disable Enable Check-sum transmission 00-64 Max.code length 00-64 Min.code length 0-15 Truncate leading 0-15 Truncate ending 00-64 00-64 00-15 00-15 Exit...
  • Page 35 EAN-13 Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refer to Insertion group selection of UPCA. Supplement digits: Format Supplement Digits Data Digits Check 2 or 5 or (12 Digits) Digits UCC / EAN ISBN/ISSN: The ISBN (International Standard Book Number) and ISSN (International Standard Serial Number) are two kinds of barcode for book and magazines.
  • Page 36 Program Option Bar Code Option Alphanumeric 00-ffH ASCII code Code ID setting 00-44 Insert group selection None 2 digits Supplement digits 5 digits UCC/EAN 128 Auto detection Disable Enable ISBN/ISSN conversion Entry 00-ffH < F > 00-44 Exit...
  • Page 37 EAN-8 Read: Format Data Digits (7 Digits) Check-sum verification: The checksum of EAN-8 is optional and made as the sum of the numerical value of the data digits. Check-sum transmission: By setting Enable, checks sum will be transmitted. Max./Min. code length: Refer to Max./Min. code length of EAN-13.
  • Page 38 Disable Enable Check-sum transmission 00-64 Max.code length 00-64 Min.code length 0-15 Truncate leading 0-15 Truncate ending Two characters 00-ffH ASCII Code ID setting code 00-44 Insert group selection 00-64 00-64 00-15 00-15 00-ffH, 00-ffH < FF > 00-44 Exit...
  • Page 39 EAN-8 Supplement digits: Format Supplement Digits Data Digits Check 2 or 5 or (7 Digits) Digits UCC/EAN 128 Truncate Leading zero: Refer to Truncate Leading zero of UPCE. Expansion: Refer to Expansion of UPCE. Program Option Bar Code Option None 2 digits Supplement digits 5 digits...
  • Page 40 Code 39 Read: Format Start Data Digits Checksum “ ” ( Variable) (Optional) Check-sum verification: The checksum of Code-39 is optional and made as the sum module 43 of the numerical value of the data digits. Check-sum transmission: By setting Enable, checksum and will be transmitted.
  • Page 41 Code 39 Max./Min. code length: Each symbology has own Max./Min. Code Length. They can be set to qualify data entry. If their Max./Min. Code Length is zero, the Global Min./Max. Code Length is in effect. The length is defined as to the actual barcode data length to be sent.
  • Page 42 00-64 Max. code length 00-64 Min. code length 0-15 Truncate leading 0-15 Truncate ending 00-ffH ASCII code Code ID setting 00-44 Insert group selection Standard Full ASCII Format 00-64 00-64 00-15 00-15 00-ffH < > 00-44 Exit...
  • Page 43 Append: This function allows several symbols to be concatenates and be treat as one single data entry. The scanner will not transmit the embedded appending code (space for Code-39). If Enable and other symbols were read again with the appended code, then codes will be transmitted without Code ID, Preamble and Prefix.
  • Page 44 Read: Format Data Digits (Variable) Check-sum verification: The checksum is made as the sum module 10 of the numerical values of all data digits. Check-sum transmission: By setting Enable, checksum and will be transmitted. Program Option Bar Code Option Disable Enable Read Disable...

  • Page 45: Interleaved 2 Of 5

    Interleaved 2 of 5 Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA. Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refer to Insertion group selection of UPCA. Program Option Bar Code Option...
  • Page 46 00-ffH ASCII code Code ID setting 00-44 Insert group selection 00-ffH < i > 00-44 Exit...
  • Page 47 Read: Format Data Digits (Variable) Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA. Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refer to Insertion group selection of UPCA.
  • Page 48 0-15 Truncate leading 0-15 Truncate ending 00-ffH ASCII code Code ID setting 00-44 Insert group selection 00-15 00-15 00-ffH < i > 00-44 Exit...
  • Page 49 Matrix 2 of 5 Eur Read: Format Data Digits Checksum (Variable) (Optional) Checksum Verification: The checksum is made as the sum module 10 of the numerical values of all data digits. Checksum Transmission: By setting Enable, checksum and will be transmitted. Max./Min.
  • Page 50 Disable Enable Checksum Transmission 00-64 Max. code length 00-64 Min. code length 0-15 Truncate leading 0-15 Truncate ending 00-ffH ASCII code Code ID setting 00-44 Insert group selection 00-64 00-64 00-15 00-15 00-ffH < B > 00- 44 Exit...
  • Page 51 Codabar Read: Format Start Data Digits (Variable) Checksum (Optional) End Checksum Verification: The checksum is made as the sum module 16 of the numerical values of all data digits. Checksum Transmission: By setting Enable, checksum and will be transmitted. Max./Min. code length: Refer to Max./Min. code length of Code-39.
  • Page 52 Disable Enable Checksum Transmission 00-64 Max. code length 00-64 Min. code length 0-15 Truncate leading 0-15 Truncate ending 00-ffH ASCII code Code ID setting 00-64 00-64 00-15 00-15 00-ffH < % > Exit...
  • Page 53 Codabar Insertion group selection: Refer to Insertion group selection of UPCA. Start/End type: The Codabar has four pairs of Start/End pattern; you may select one pair to match your application. Start/End Transmission: Refer to Start/End Transmission of Code 39. Program Option Bar Code Option 00-44...
  • Page 54 Code-128 Read: Format Data Digits Checksum (Variable) (Optional) Checksum Verification: The checksum is made as the sum module 103 of all data digits. Checksum Transmission: By setting Enable, checksum and will be transmitted. Program Option Bar Code Option Disable Enable Read Disable Enable...
  • Page 55 <GS>(1D Datas <GS> Datas Checksum Append: When the function is enabled, it won't show the data immediately if scanner read the barcode includes FNC2 code. It will show all data until it read the barcode, which doesn't have FNC2 code.
  • Page 56 0-15 Truncate leading 0-15 Truncate ending 00-ffH ASCII code Code ID setting 00-44 Insert group selection Standard UCC/EAN-128 Format Disable Enable Append 00-ffH ASCII code UCC/EAN-128 ID setting 00-ffH ASCII code Field separator code 00-15 00-15 00-ffH < # > 00-44 00-ffH <...
  • Page 57 Code-93 Read: Format Data Digits Checksum1 (Variable) (Optional) Checksum Verification: The checksum is made as the sum module 47 of the numerical values of all data digits. Checksum Transmission: By setting Enable, checksum and will be transmitted. Max./Min. code length: Refer to Max./Min. code length of Code-39.
  • Page 58 Disable Enable Checksum Transmission 00-64 Max. code length 00-64 Min. code length 0-15 Truncate leading 0-15 Truncate ending 00-ffH ASCII code Code ID setting 00-44 Insert group selection 00-64 00-64 00-15 00-15 00-ffH < & > 00-44 Exit...
  • Page 59 Code-11 Read: Format Data Digits Checksum1 (Variable) (Optional) Checksum Verification: The checksum is presented as the sum module 11 of all data digits. Checksum Transmission: By setting Enable, checksum1 and checksum2 will be transmitted upon your selected checksum verification method. Max./Min.
  • Page 60 Disable Enable Checksum Transmission 00-64 Max. code length 00-64 Min. code length 0-15 Truncate leading 0-15 Truncate ending 00-ffH ASCII code Code ID setting 00-44 Insert group selection 00-64 00-64 00-15 00-15 00-ffH < O > 00-44 Exit...
  • Page 61 MSI/plessey Read: Format Data Digits Checksum1 (Variable) (Optional) Checksum Verification: The MSI/Plessey has one or two optional checksum digits. The checksum is presented 3 kinds of method Mod10, Mod10/10 and Mod 11/10. The checksum1 and checksum2 will be calculated as the sum module 10 or 11 of the data digits.
  • Page 62 Disable Enable Checksum Transmission 00-64 Max. code length 00-64 Min. code length 0-15 Truncate leading 0-15 Truncate ending 00-ffH ASCII 00-ffH code Code ID setting 00-44 Insert group selection 00-64 00-64 00-15 00-15 < @ > 00-44 Exit...
  • Page 63 UK/plessey Read: Format Data Digits Checksum1+2 (Variable) (Optional) Checksum Verification: The UK/Plessey has one or two optional checksum digits. The checksum1 and checksum2 will be calculated as the sum module 10 or 11 of the data digits. Checksum Transmission: By setting Enable, checksum will be transmitted.
  • Page 64 Disable Enable Checksum Transmission 00-64 Max. code length 00-64 Min. code length 0-15 Truncate leading 0-15 Truncate ending 00-ffH ASCII code Code ID setting 00-44 Insert group selection 00-64 00-64 00-15 00-15 00-ffH < @ > 00-44 Exit...
  • Page 65 Telepen Read: IATA (International Air Transport Association). Checksum Verification: The checksum is presented as the sum module 10 or 11 of the data digits. Checksum Transmission: By setting Enable, checksum will be transmitted. Max./Min. code length: Refer to Max./Min. code length of Code-39.
  • Page 66 00-64 Max. code length 00-64 Min. code length 0-15 Truncate leading 0-15 Truncate ending 00-ffH ASCII code Code ID setting 00-44 Insert group selection 00-64 00-64 00-15 00-15 00-ffH < S > 00-44 Exit...

  • Page 67: Standard 2 Of

    Standard 2 of 5 Read: Format Data Digits Checksum1 (Variable) (Optional) Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA. Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refer to Insertion group selection of UPCA.
  • Page 68 0-15 Truncate leading 0-15 Truncate ending 00-ffH ASCII code Code ID setting 00-44 Insert group selection 00-15 00-15 00-ffH < i > 00-44 Exit...

  • Page 69: China Post

    China Post Read: Format Data Digits Checksum1 (Variable) (Optional) Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA. Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refer to Insertion group selection of UPCA.
  • Page 70 0-15 Truncate leading 0-15 Truncate ending 00-ffH ASCII code Code ID setting 00-44 Insert group selection 00-15 00-15 00-ffH < t > 01-44 Exit...

  • Page 71: Italian Pharmacode

    Read: Format Data Digits Checksum1 (Variable) (Optional) Max./Min. code length: Refer to Max./Min. code length of Code-39. Truncate leading/ending: Refer to Truncate leading/ending of UPCA. Code Id setting: Refer to Code ID setting of UPCA. Insertion group selection: Refer to Insertion group selection of UPCA.
  • Page 72 00-64 Min. code length 0-15 Truncate leading 0-15 Truncate ending 00-ffH ASCII code Code ID setting 00-44 Insert group selection Disable Enable Leading “A” 00-64 00-15 00-15 01-ffH < p > 00-44 Exit...

  • Page 73: String Setting

    String setting Prefix characters: Up to 22 ASCII characters may be sent before data digits. Prefix Data Digits Suffix Suffix characters: Up to 22 ASCII characters may be sent after data digits. Preamble/ Postamble characters: They are appended to the data automatically when each barcode is decoded. Example: Add a prefix/suffix or preamble/postamble for all symbologies.
  • Page 74 None 1-22 characters Preamble characters setting None 1-22 characters Postamble characters setting None 1-22 characters Insert G1 characters setting None 1-22 characters Insert G2 characters setting None 1-22 characters Insert G3 characters setting None 1-22 characters Insert G4 characters setting 00-ffH ASCII code 00-ffH ASCII...
  • Page 75 String setting Insert G1/G2/G3/G4 character setting: The scanner offer 4 positions and 4 characters to insert among the symbol. Example: Barcode “1 2 3 4 5 6”. Output- Barcode “1 2 A B 3 4 C D 5 6”. Steps: 1) Scan Programming and Insert G1 characters setting barcode.
  • Page 76 None 1-22 characters Insert G3 characters setting None 1-22 characters Insert G4 characters setting 00-ffH ASCII code 00-ffH ASCII code Exit...
  • Page 77 Postamble transmission: By setting Enable, Postamble will be appended after the data is transmitted. Insert data group 1-4 position: The scanner offers 4 positions to insert among the symbol. The position default value is “00” to indicate no character insertion. Beside, make sure insertion positions are not greater than the symbols;...
  • Page 78 00-64 (00: no insertion) Insert data group 1 position 00-64 (00: no insertion) Insert data group 2 position 00-64 (00: no insertion) Insert data group 3 position 00-64 (00: no insertion) Insert data group 4 position Before code data After code data Code ID position 00-64 00-64...
  • Page 79 Code name transmission: This function is to show unknown barcode symbologies that include all readable symbologies of the scanner. When Enable is selected, Code Name will be transmitted before code data, you will know what kind of barcode symbology is.
  • Page 80 Disable Enable Code length transmission Disable Enable Code name transmission Disable Upper case Case conversion Lower case *For barcode data only Format of barcode data transmission: Code Barcode Prefix Name Preamble Length data Insert groups Exit Postamble Suffix...
  • Page 81 CODABAR-PARA CODE-11 PARA CODE-128 PARA CODE-39 PARA CODE-93 PARA EAN-13 PARA...
  • Page 82 PDF-417 STANDRAD-25 PARA CODE-16K EAN-8 PARA INDUSTRIAL-25 PARA UPCE PARA...
  • Page 83 INTERLEAVED-25 PARA MATRIX 25 PARA MSI/PLESSEY PARA UPCA PARA UK/PLESSEY PARA...
  • Page 84 ASCII Code Table...

  • Page 85: Parameter Setting List

    System parameter setting list If you wish to display the product information and revision number for your LGZ7225 scanner over the host terminal/computer, scan the System parameter setting list bar code. String setting list If you wish to display the string format list, scan the String setting list bar code.
  • Page 86 Firmware version list If you wish to display the firmware version, scan the Firmware version list. WARNING: Default value initialization If you wish to return theLGZ 7225 to all the factory default settings, scan the Default value initialization bar code. Exit...
  • Page 87 Finish...
