Depth of Field

7.3.2.
0 to15 mm
The depth of field is measured from the edge of the scanner.
Conditions
Barcode Sample: OPTOELECTRONICS Test Sample
N/W Ratio:
Angle:
Curvature:

7.4. Pitch, Skew, and Tilt

Pitch Angle

7.4.1.
α = ±30°

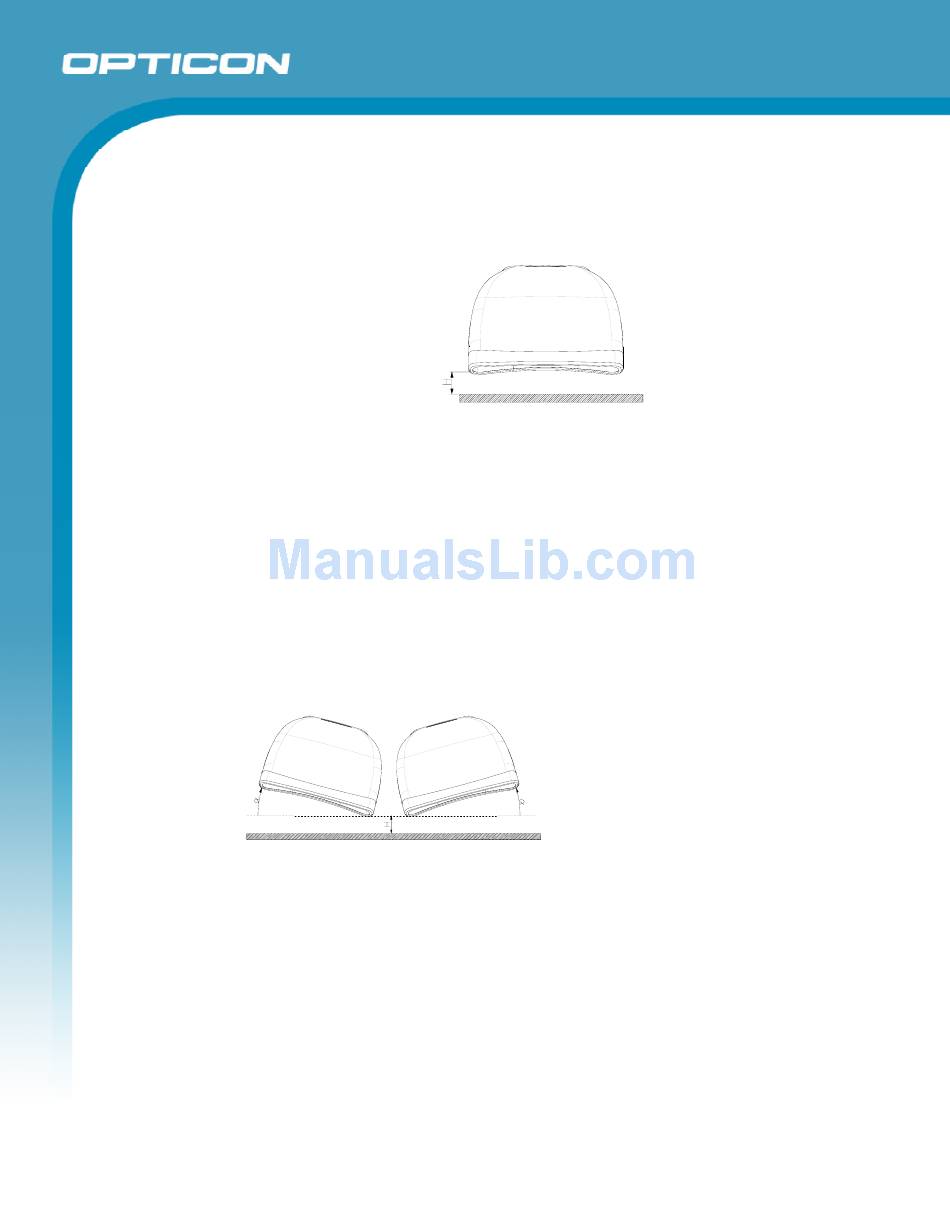

Figure 3: Depth of field

1:2.5
α = 0°, β = 0°, γ = 0°
R = ∞

Figure 4: Pitch
