rev.02 MTK952 User Manual
F P C
RONT ANEL

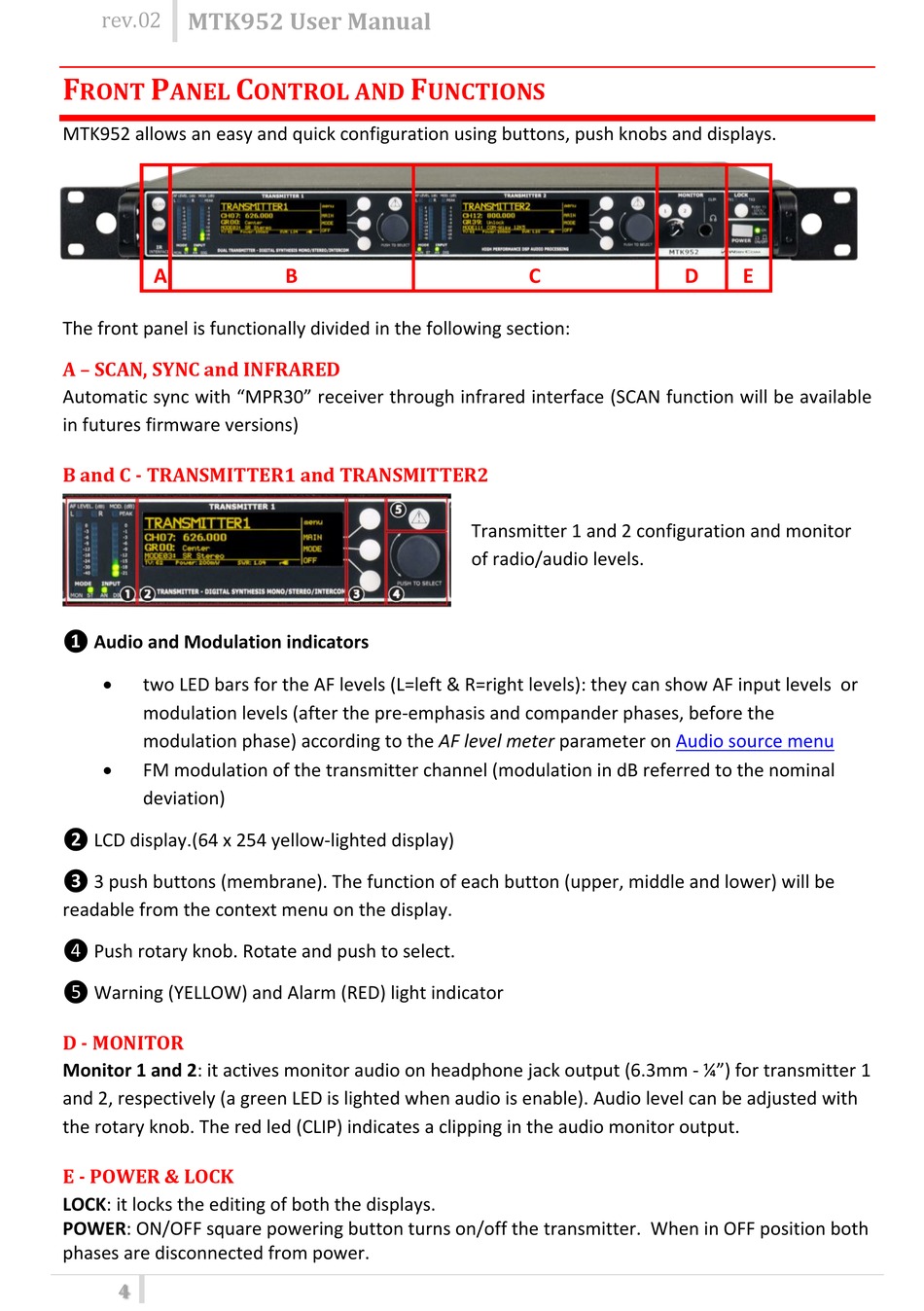

MTK952 allows an easy and quick configuration using buttons, push knobs and displays.
A
The front panel is functionally divided in the following section:
A – SCAN, SYNC and INFRARED
Automatic sync with "MPR30" receiver through infrared interface (SCAN function will be available
in futures firmware versions)
B and C - TRANSMITTER1 and TRANSMITTER2
❶ Audio and Modulation indicators

two LED bars for the AF levels (L=left & R=right levels): they can show AF input levels or
modulation levels (after the pre-emphasis and compander phases, before the
modulation phase) according to the AF level meter parameter on

FM modulation of the transmitter channel (modulation in dB referred to the nominal
deviation)
❷ LCD display.(64 x 254 yellow-lighted display)
❸ 3 push buttons (membrane). The function of each button (upper, middle and lower) will be
readable from the context menu on the display.
❹ Push rotary knob. Rotate and push to select.
❺ Warning (YELLOW) and Alarm (RED) light indicator
D - MONITOR
Monitor 1 and 2: it actives monitor audio on headphone jack output (6.3mm - ¼") for transmitter 1
and 2, respectively (a green LED is lighted when audio is enable). Audio level can be adjusted with
the rotary knob. The red led (CLIP) indicates a clipping in the audio monitor output.
E - POWER & LOCK
LOCK: it locks the editing of both the displays.
POWER: ON/OFF square powering button turns on/off the transmitter. When in OFF position both
phases are disconnected from power.
4
F
ONTROL AND UNCTIONS
B C
Transmitter 1 and 2 configuration and monitor
of radio/audio levels.
D E
Audio source menu
