WisyCom MTP41 User Manual

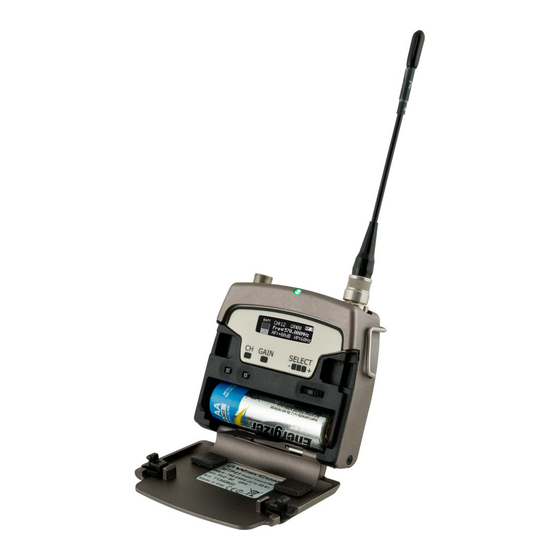

Wideband wireless professional pocket transmitter
Hide thumbs Also See for MTP41:
Table of Contents

Advertisement

Quick Links

Download this manual
MTP41 User Manual
Wideband Wireless
Professional Pocket
Transmitter
SN: ________________
Rev.01 (rif. FW 1.11_0D)
Date: 15 October 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTP41 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WisyCom MTP41

Summary of Contents for WisyCom MTP41

  • Page 1 MTP41 User Manual Wideband Wireless Professional Pocket Transmitter SN: ________________ Rev.01 (rif. FW 1.11_0D) Date: 15 October 2014...
  • Page 2 MTP41 User Manual Rev.01...
  • Page 3 Very easy and quick to use thanks to OLED display, dedicated buttons and a joggle selector. MTP41 benefits also of the latest Wisycom RF technology along with an enhanced robustness against noise and inter-modulation. Fig. 1...
  • Page 4 MTP41 User Manual Rev.01 AFETY INSTRUCTION  Read this safety instruction and the manual first  Follow all instructions and information.  Do not lose this manual.  Do not use this apparatus under the rain or near the water.
  • Page 5 PTT status: red if active (push to talk “pushed”). Batteries MTP41 is working with 1 AA alkaline or NiMH or Lithium battery (select correct type on setup controls). Battery status can be checked on internal OLED display or looking to LED status on front ❷.

  • Page 6: Oled Power Up (Oled Is In Off Condition)

    MTP41 User Manual Rev.01 Powering up Move the wireless power switch (see Fig. 1) in “I” position to activate wireless transmission: the front green LED ❷ lights up (blinking when battery is low!) Setup control Open transmitter Body to access the “display and controls” area (Fig. 3):...
  • Page 7 MTP41 User Manual Rev.01 ISPLAY STATUS Current FACTORY/USER/PRESET1/2/3/4/5/6/7/8 PRESET Load Save USER 00-59 TUNING 00-39 1: 470.000÷640.000 Freq 2: 566.000÷798.000 3: 510.000÷698.000 AF In Gain -60÷40 dB (1dB step) Phase 0/180 AUDIO Noise R. ENR-Wisy/ENC-Wisy HPass Filter flat/60/80/120/170/250/400Hz RF Power...
  • Page 8 This menu can be entered by scrolling selector, or pushing at the same time both quick channel setup buttons (<ch> & <gain>). MTP41 can recall configuration presets. “FACTORY” recalls the Wisycom factory configuration. “USER” recalls the user configuration (the transmitter configuration is copied into the USER using the “save to”...
  • Page 9 PC interface (using the programmer UPK 300 or the receiver MRK950/MRK960). All parameters can be “left unchanged”, “changed” or “changed and lock”, allowing a very flexible way to pre-program MTP41 configuration. <TUNING> menu This menu can be entered by scrolling selector or using quick channel setup buttons (<ch>).
  • Page 10 This menu can be entered by scrolling selector. RF power can be setup to 50 mW or 10 mW. Use the Battery menu to select the type of battery used. MTP41 support Alkaline/NiMH/Lithium battery type. Use the selector to change values (<+/->) and <click> to confirm.
  • Page 11 <LOCK> menu This menu can be entered by scrolling selector. Long pressing (2 sec.) selector button (click) it locks MTP41 in transmission mode. To unlock, long pressing (2 sec.) selector button again. <BOOTLOAD> menu This menu can be entered only turning on the transmitter while pushing at the same time both quick channel setup buttons (<ch>...
  • Page 12 The following table sums up which parameters can be set and the related range settings. MENU PARAMETER MEANING RANGE SETTINGS Channel 0 ÷ 59 Group 0 ÷ 39 + SYNC GROUP depends on the MTP41 Model: TUNING 470-640 Freq Frequency 566-798 510-698 Gain of the AF In Gain -60dB ÷...
  • Page 13 MTP41 User Manual Rev.01 MIC Mode setting (only for LEMO option): Pin out MIC Mode: Gain Led Mode Disable None 1=GND Normal ’2 wires’: -60/40 dB Mod. Peak 3=AF Muting No data Disable None 1=GND Normal ‘2 wires + bias’: -60/40 dB Mod.
  • Page 14 Rev.01 . 1.3.2.0 ISYCOM IR PROGRAMMER AND ABOVE Wisycom IR Programmer allows to read, modify and update the MTP41 device configuration. It is necessary to  install Wisycom IR Programmer (version 1.3.2.0 or above) WARNING: If it is the first installation and Wisycom USB driver has not already installed in the PC, install the USB driver (run C:\Program Files (x86)\Wisycom\MTP&MTH Infrared Programmer (TX)\Drivers\ DriverInstaller.exe)

  • Page 15: Interface And Device Panel

    MTP41 User Manual Rev.01 10 different configurations are available: • FACTORY configuration is a locked configuration: no parameter can be changed.  USER configuration is the only configuration that can be saved using the OLED display (see <PRESET> menu). Note: It is not possible to change the name of this configuration.

  • Page 16: Tuning Frequencies Panel

    MTP41 User Manual Rev.01 TUNING FREQUENCIES PANEL With the Tuning Frequencies panel the user can select a frequencies group (0÷39) and for each one execute the following operations: modify the Group’s Name lock and/or hidden the group for each channel (0 ÷59) of the selected group: change the frequency value and the...
  • Page 17 MTP41 User Manual Rev.01 Using the LOAD/SAVE button, at the bottom of the panel, it is possible to load/save the frequencies for the selected group from/to a .wdf file. To save the frequencies of all the groups click to the related button above. The legacy option save the channels without the hidden/lock...

  • Page 18: Presets Panel

    Using a file menu at the top left of the panel it is possible to load/save all the configuration values of the device to/from a .wcf file (Wisycom Configuration File). Save a .wcf file With an infrared device correctly connected, select File->Save User Configuration and select the destination file.

  • Page 19: Technical Specifications

    FM, with 50 µs pre-emphasis Modulation ±40 kHz (Peak deviation = ±56 kHz) Nominal deviation MTP41 transmits also a digitally modulated sub-carrier, suitable for: Telemetry ▪tone-squelch operating ▪ remote battery monitoring ▪ optional PTT (push to talk) operation feature Configurable on ‘mic’...
  • Page 20 "matt black" body color “titanium gray” (ceramic coating) ▪ OTHER OPTIONS (-O) Compatible with dummy batt. pack Ex. MTP41-L-B1 is 3 pins LEMO connector , matt black color and 470-640 Mhz frequency range 5.5V (3 wires) AF + 5.5V (2 wires) Option Lemo Conn.

  • Page 21: Declaration Of Conformity

    MTP41 User Manual Rev.01 DECLARATION OF CONFORMITY...
  • Page 22 MTP41 User Manual Rev.01 ENVIRONMENTAL INFORMATION Applicable in the European Union and other European countries with separate collection systems Disposal of Old Electrical & Electronic Equipment (2002/96/EC) This symbol indicates that this products shall not be treated as household waste. Instead it shall be handed over to the appropriate collection point for the recycling of electrical and electronic equipment.
  • Page 24 MTP41 User Manual Rev.01 Wireless System Communications Via Spin 156  I-36060 Romano d’Ezzelino  Italy Tel. +39 -0424 -382605  Fax +39 - 0424 - 382733 www.wisycom.com  e-mail: sales@wisycom.com...
