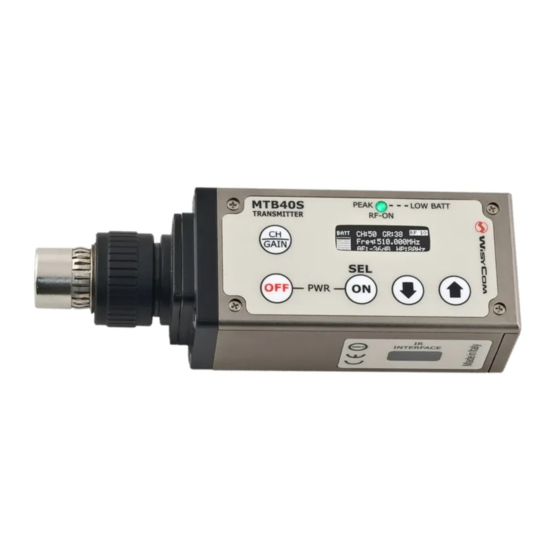

WisyCom MTB40S User Manual

Wideband plug-on transmitter
Hide thumbs Also See for MTB40S:
Table of Contents

Advertisement

Quick Links

Download this manual
Wideband Plug-on
Transmitter
SN: ________________
Rev.10 (rif. FW 1.30.0P)
Date: 22 May 2019
MTB40S User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTB40S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WisyCom MTB40S

Summary of Contents for WisyCom MTB40S

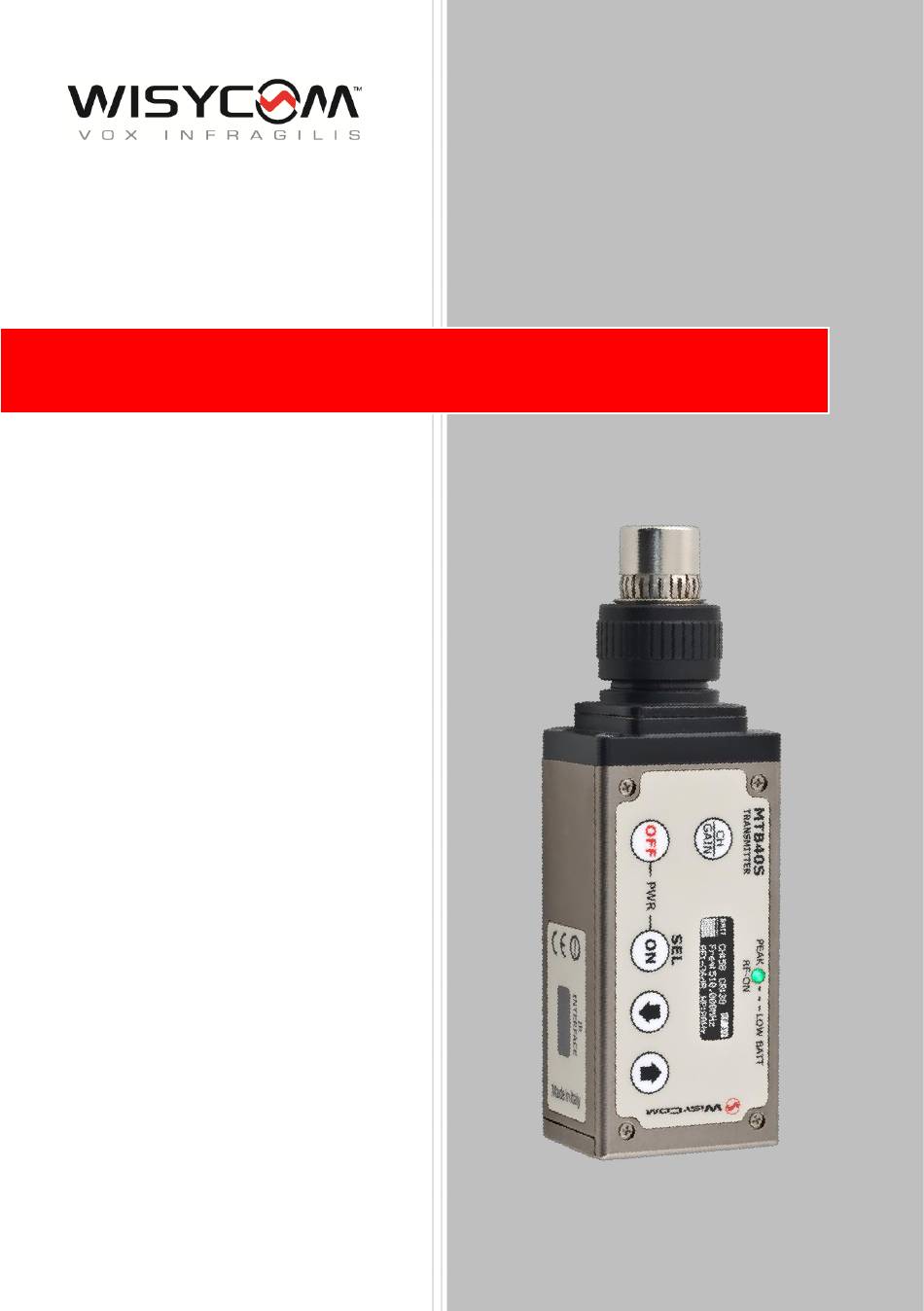

  • Page 1 MTB40S User Manual Wideband Plug-on Transmitter SN: ________________ Rev.10 (rif. FW 1.30.0P) Date: 22 May 2019...
  • Page 2 MTB40S User Manual...

  • Page 3: Safety Instruction

    MTB40S is an extremely small and light plug-on transmitter designed for professional audio applications. Very easy and quick to use thanks to OLED display, MTB40S benefit also of the latest Wisycom RF technology along with an enhanced robustness against noise and inter-modulation.

  • Page 4: Led Indication

    Limiter in action (if activated): blue. ATTERIES MTB40S is working with 2 AA alkaline, NiMH or Lithium batteries (select correct type on setup controls). Battery status can be checked on internal OLED display or looking to LED status on front.

  • Page 5: Power Up/Down

    MTB40S User Manual for a correct insertion of the microphone/boom, screw the ferrule WARNING: up to the end of the threading and then connect the mic/boom. POWER UP/DOWN Buttons Mode To… Status display - power off the device - power off the RF transmission...

  • Page 6: Display Menu

    MTB40S User Manual DISPLAY MENU Setup menu are accessed in sequence: Current STATUS PRESET Load FACTORY/USER/PRESET1/2/3/4/5/6/7/8 Save USER 00 ÷ 59 00 ÷ 39 TUNING according to the freq. Freq range of the transmitter AF Gain -60 ÷ +40 dB (1dB step) AF Level -54 ÷...
  • Page 7 <STATUS> menu This is the first menu displayed after power up. Major info are displayed: - Current channel/group or the receiver name if the MTB40S is already synchronized with a receiver - Current frequency (i.e. 520.000 MHz) - Gain (i.e. AF: -12 dB) and high pass filter (i.e. HP: 120 Hz) - “RF 10”, “RF 50”...
  • Page 8 80Hz/ 120Hz/ 170Hz/ 250Hz/ 400Hz. The third <AUDIO> menu allows to set the noise reduction and setup the limiter: - MTB40S supports 2 different type of “Companding systems”: ENR-Wisy: designed for maximum noise reduction; ENC-Wisy: designed for maximum audio fidelity (use this in case of special vocal application or to remote instruments).
  • Page 9 MTB40S User Manual <RF/BATTERY> menu This menu can be entered by pushing Her it’s possible to setup: - “RF Power”, that can be 10 mW, 20mW, 50 mW - Battery type can be setup in Alkaline, NiMH or Lithium. Use the selector ( ) to change values and <SEL>...
  • Page 10 On power on the device, the IRDA interface is enabled for 14 seconds. <LOCK> menu This menu can be entered by pushing Long pressing (2 sec.) selector button (SEL) it locks MTB40S in transmission mode. To unlock, long pressing (2 sec.) selector button again.
  • Page 11  enable the IRDA communication on the transmitter (see IRDA menu) NOTE: Wisycom IR Programmer doesn’t work whit MRK950/MRK960 if it is connected to the PC using an Ethernet cable. The Wisycom IR Programmer’s window is divided in 4 parts (see the image below): ❶...

  • Page 12: Interface And Device Panel

    MTB40S User Manual 10 different configurations are available: • FACTORY configuration is a locked configuration: no parameter can be changed.  USER configuration is the only configuration that can be saved using the OLED display (see <PRESET> menu). Note: It is not possible to change the name of this configuration.

  • Page 13: Tuning Frequencies Panel

    MTB40S User Manual ❸ TUNING FREQUENCIES PANEL ( With the Tuning Frequencies panel the user can select a frequencies group (0÷39) and for each one execute the following operations: modify the Group’s Name lock and/or hidden the group for each channel (0 ÷59) of the selected group: change the frequency value and the related...
  • Page 14 MTB40S User Manual If the currently tuned channel is on the same group that is listed on the grid, the background color of the related cell (channel) on the grid becomes yellow. Using the LOAD/SAVE button, at the bottom of the panel, it is possible to load/save the frequencies for the selected group from/to a .wdf file.

  • Page 15: Presets Panel

    Using a file menu at the top left of the panel it is possible to load/save all the configuration values of the device to/from a .wcf file (Wisycom Configuration File). Save a .wcf file With an infrared device correctly connected, select File->Save User Configuration and select the destination file.

  • Page 16: Technical Specifications

    Spurious emissions < 2 nW Modulation wideband FM, with 50 µs pre-emphasis Nominal deviation ±40 kHz (Peak deviation = ±56 kHz) MTB40S transmits also a digitally modulated sub-carrier, suitable for: Telemetry feature ▪tone-squelch operating ▪ remote battery monitoring ▪ optional PTT (Push to talk) operation AF input connector XLR-3F (transformer isolated) with locking collar and 48V phantom power 100 dB adjustable range from -54 dBu (775 uV) to 46 dBu (15.5 V) at peak deviation (1...
  • Page 17 940-960 MHz max power 100mW (USA & Canada) max power 50mW (China) max power 10mW (Japan) max power 100mW (New Zealand) max power 100mW (Australia) max power 100mW (USA) For commercial code, see Variants area of Wisycom Products on website...
  • Page 18 MTB40S User Manual Note: unit is mm...
  • Page 19 Limited to 663MHz PART 74 FCC-ID: POUMTB40SUS8 MTB40S-US8 Limited to 100mW 941.50-952.00MHz, 952.85-956.25MHz, 956.45-959.85MHz MTB40S-EUX is not an SRD device, thus it requires specific authorization by your local frequency authority! Before putting the device into operation, please observe the respective country-specific regulations!

  • Page 20: Manufacturer Declarations

    MTB40S User Manual MANUFACTURER DECLARATIONS In compliance with the following requirements  RoHS Directive (2002/95/EC)  WEEE Directive (2002/96/EC) Please dispose of the diversity transmitter at the end of its operational lifetime by taking it to your local collection point or recycling center for such equipment ...
  • Page 21 MTB40S User Manual FCC Conformity The Wisycom plug-on transmitter (model: MTB40S-USX or MTB40S-US) complies with the following requirements: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operations.

  • Page 22: Declaration Of Conformity

    MTB40S User Manual DECLARATION OF CONFORMITY...
  • Page 23 MTB40S User Manual...
  • Page 24 Via Spin 156  I-36060 Romano d’Ezzelino  Italy Tel. +39 -0424 -382605  Fax +39 - 0424 - 382733 www.wisycom.com  e-mail: sales@wisycom.com...
