- Page 1 MTB40S User Manual Wideband Plug-on Transmitter SN: ________________ Rev.12 (rif. FW 1.30.0P) Date: 06 November 2023...
-
Page 2: Safety Instruction

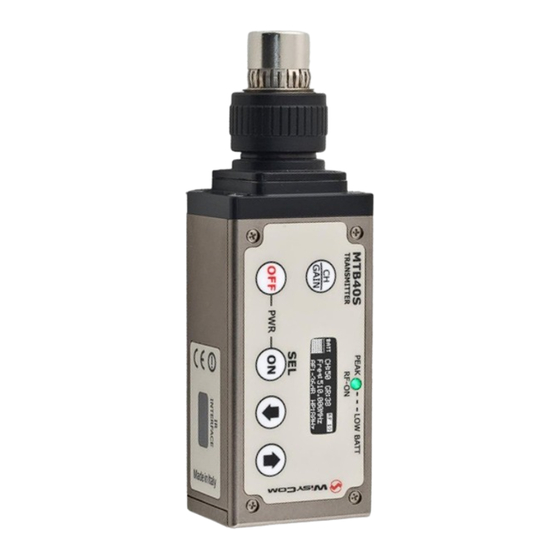

MTB40S is an extremely small and light plug-on transmitter designed for professional audio applications. Very easy and quick to use thanks to OLED display, MTB40S benefit also of the latest Wisycom RF technology along with an enhanced robustness against noise and inter-modulation. -
Page 3: Led Indication
MTB40S User Manual ED INDICATION The front led is a RGB indicator (red, green, blue) which shows the following status of the transmitter: Wireless transmission status: green when RF transmission power is on (on power on the device, this LED is and become green when the RF transmission power is on). -
Page 4: Power Up/Down
MTB40S User Manual for a correct insertion of the microphone/boom, screw the WARNING: ferrule up to the end of the threading and then connect the mic/boom. POWER UP/DOWN Buttons Mode To… Status display - power off the device - power off the RF transmission - exit from the operating menu Operating menu Cancel the entry and return to the standard... -
Page 5: Display Menu
MTB40S User Manual DISPLAY MENU Setup menu are accessed in sequence: Current STATUS PRESET Load FACTORY/USER/PRESET1/2/3/4/5/6/7/8 Save USER 00 ÷ 59 00 ÷ 39 TUNING according to the freq. Freq range of the transmitter AF Gain -60 ÷ +40 dB (1dB step) AF Level -54 ÷... - Page 6 <PRESET> menu This menu can be entered by pushing MTB40S can recall configuration presets. “FACTORY” recalls the Wisycom factory configuration. “USER” recalls the user configuration (the transmitter configuration is copied into the USER using the “save to” submenu). All “USER” menus are not locked by default, thus this is quick way...
- Page 7 MTB40S User Manual This menu can be entered by pushing In this menu channel/group and frequencies can be setup. The name of the group is shown on the top right of the display. SYNC group is a quick self-settable channel synchronized by receiver (with SYNC group, on the top right of the display is shown the name of the synchronized receiver).
- Page 8 MTB40S User Manual This menu can be entered by pushing Her it’s possible to setup: - “RF Power”, that can be 10 mW, 20mW, 50 mW - Battery type can be setup in Alkaline, NiMH or Lithium. Use the selector ( ) to change values and <SEL>...
- Page 9 MTB40S User Manual <INFO> menu This menu can be entered by pushing In this menu it’s possible to see: FW version HW version Serial number Bandwidth Bootloader version Option <IRDA> menu This menu can be entered by pushing While there is this menu, the device can be connected to IRDA for setup or firmware upgrades.
-
Page 10: Technical Specifications
1 dB steps +46 dBu (15.5 V) at clipping, +20 dBu (7.75 V) at nominal level Max. input level ENR (Wisycom Extended-NR), with independent Attack- and Recovery-time, noise optimized Noise-Reduction ENC (Wisycom Extended-NC), with independent Attack- and Recovery-time, voice optimized &... - Page 11 MTB40S User Manual VARIANTS: POWER PROFILE & COUNTRY FREQUENCY RANGE: ▪ FREQUENCY RANGE 470-654 MHz max power 50mW (Europe) 566-798 MHz max power 100mW (Europe) 510-698 MHz max power 50mW (USA & Canada) 940-960 MHz max power 100mW (USA & Canada) max power 50mW (China) max power 10mW (Japan) max power 100mW (New Zealand)
- Page 12 MTB40S User Manual Note: unit is mm...
- Page 13 MTB40S User Manual Compliance Model In Compliance with Max Power Country EN 301 489-1/-9 MTB40S Europe EN 600065 50mW MTB40S-EU EN 300 422-1/-2 EN 301 489-1/-9 EN 600065 Europe MTB40S-EUX 100mW* EN 300 422-1/-2 EN 300 454-1/-2 PART 74 FCC-ID: POUMTB40SUSX MTB40S-US 50mW USA, Canada...
-
Page 14: Manufacturer Declarations
MTB40S User Manual MANUFACTURER DECLARATIONS In compliance with the following requirements • RoHS Directive (2002/95/EC) • WEEE Directive (2002/96/EC) Please dispose of the diversity transmitter at the end of its operational lifetime by taking it to your local collection point or recycling center for such equipment •... -
Page 15: Fcc Conformity
MTB40S User Manual FCC Conformity The Wisycom plug-on transmitter (model: MTB40S-USX or MTB40S-US) complies with the following requirements: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operations. - Page 16 Via Tiepolo 7/e • 35019 Tombolo (PD) • Italy Tel. +39 -0424 -382605 • Fax +39 - 0424 - 382733 www.wisycom.com • e-mail: sales@wisycom.com...
