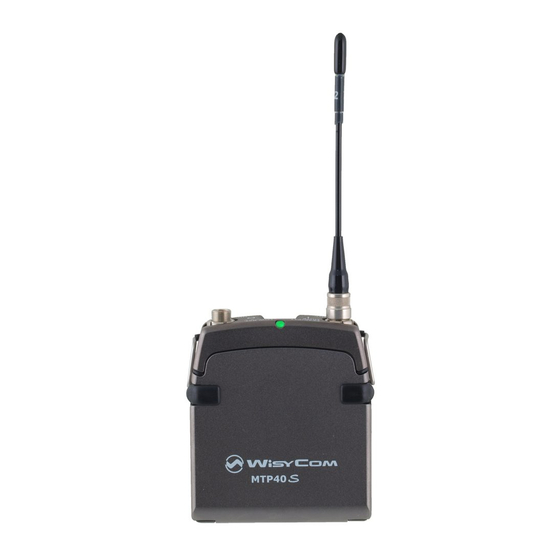

WisyCom MTP40S User Manual

Wideband wireless professional pocket
Hide thumbs Also See for MTP40S:
Table of Contents

Advertisement

Quick Links

MTP40S User Manual
Wideband Wireless
Professional Pocket
Transmitter
SN: ________________
Rev.06 (ref. FW 1.30.0A)
Date: 23 February 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTP40S and is the answer not in the manual?

Questions and answers

Related Manuals for WisyCom MTP40S

Summary of Contents for WisyCom MTP40S

  • Page 1 MTP40S User Manual Wideband Wireless Professional Pocket Transmitter SN: ________________ Rev.06 (ref. FW 1.30.0A) Date: 23 February 2015...
  • Page 2 Very easy and quick to use thanks to OLED display, dedicated buttons and a joggle selector. MTP40S benefits also of the latest Wisycom RF technology along with an enhanced robustness against noise and inter-modulation. Turn on wireless: Fig.

  • Page 3: Safety Instruction

    Limiter in action (if activated): blue. ATTERIES MTP40S is working with 2 AA alkaline, NiMH or Lithium batteries (select correct type on setup controls). Battery status can be checked on internal OLED display or looking the LED status on front ❷.

  • Page 4: Oled Power Up (Oled Is In Off Condition)

    MTP40S User Manual OWERING UP Move the wireless power switch (see Fig. 1) in “I” position to activate wireless transmission: the front LED ❷ lights up red and then green when the RF transmission power is on (blinking when battery is low!) ETUP CONTROL Open transmitter Body to access the “display and controls”...

  • Page 5: Display Menu

    MTP40S User Manual DISPLAY MENU Setup menu are accessed in sequence: Current STATUS FACTORY/USER/PRESET1/2/3/4/5/6/7/8 Load PRESET Save USER 00-59 00-39 TUNING 1: 470.000÷640.000 Freq 2: 566.000÷798.000 3: 510.000÷698.000 -60 ÷ +40 dB (1dB step) AF In Gain -54 ÷ +46 dBu (1dBu step)
  • Page 6 This menu can be entered by scrolling selector, or pushing at the same time both quick channel setup buttons (<ch> & <gain>). MTP40S can recall configuration presets. “FACTORY” recalls the Wisycom factory configuration. “USER” recalls the user configuration (the transmitter configuration is copied into the USER using the “save to”...
  • Page 7 MTP40S User Manual <TUNING> menu This menu can be entered by scrolling selector or using quick channel setup buttons (<ch>). In this menu current channel/group and frequencies can be setup. The name of the group is shown on the top right of the display.
  • Page 8 RF power can be setup to 10mW, 50mW or 100mW (depending on the Power profile). Use the Battery menu to select the type of battery used. MTP40S support Alkaline/NiMH/Lithium battery type. Use the selector to change values (<+/->) and <click> to confirm. <LED> menu This menu can be entered by scrolling selector.
  • Page 9 On power on the device, the IRDA interface is enabled for 14 seconds. <LOCK> menu This menu can be entered by scrolling selector. Long pressing (2 sec.) selector button (click) it locks MTP40S in transmission mode. To unlock, long pressing (2 sec.) selector button again.
  • Page 10 PARAM MENU MEANING RANGE SETTINGS ETER Channel 0 ÷ 59 Group 0 ÷ 39 + SYNC GROUP depends on the MTP40S Model: TUNING 470-640 Freq Frequency 566-698 510-698 AF In Gain Gain of the audio -60dB ÷ +40dB step of 1dB...
  • Page 11 MTP40S User Manual MIC Mode setting (only for LEMO option): MIC Mode: Gain Led Mode Pin out Disable None 1=GND Normal ’2 wires’: -60/40 dB Mod. Peak 3=AF Muting No data Disable None 1=GND Normal ‘2 wires + bias’: -60/40 dB Mod.

  • Page 12: Accessories And Parts

    MTP40S User Manual ACCESSORIES AND PARTS AWF30-B1-507 AWF30-B1-590 For MTP40S-X-X1 For MTP40S-X-X1 Band 470 ÷ 547 MHz Band 547 ÷ 640 MHz Antenna Code label Antenna Code label AWF30-B2-616 AWF30-B2-732 For MTP40S-X-X2 For MTP40S-X-X2 Band 566 ÷ 672 MHz Band 672 ÷ 798 MHz...

  • Page 13: How To Use Wisycom Tx Manager

     enable the IRDA communication on the transmitter (see IRDA menu) NOTE: Wisycom IR Programmer doesn’t work whit MRK950/MRK960 if it is connected to the PC using an Ethernet cable. The Wisycom IR Programmer’s window is divided in 4 parts (see the image below): ❶...

  • Page 14: Interface And Device Panel

    MTP40S User Manual 10 different configurations are available: • FACTORY configuration is a locked configuration: no parameter can be changed.  USER configuration is the only configuration that can be saved using the OLED display (see <PRESET> menu). Note: It is not possible to change the name of this configuration.

  • Page 15: Tuning Frequencies Panel

    MTP40S User Manual ❸ TUNING FREQUENCIES PANEL ( With the Tuning Frequencies panel the user can select a frequencies group (0÷39) and for each one execute the following operations: modify the Group’s Name lock and/or hidden the group for each channel (0 ÷59) of the selected group: change the frequency value and the...
  • Page 16 MTP40S User Manual If the currently tuned channel is on the same group that is listed on the grid, the background color of the related cell (channel) on the grid becomes yellow. Using the LOAD/SAVE button, at the bottom of the panel, it is possible to load/save the frequencies for the selected group from/to a .wdf file.

  • Page 17: Presets Panel

    Using a file menu at the top left of the panel it is possible to load/save all the configuration values of the device to/from a .wcf file (Wisycom Configuration File). Save a .wcf file With an infrared device correctly connected, select File->Save User Configuration and select the destination file.

  • Page 18: Technical Specifications

    Spurious emissions < 2 nW wideband FM, with pre-emphasis Modulation ±40 kHz (Peak deviation = ±56 kHz) Nominal deviation MTP40S transmits also a digitally modulated sub-carrier, suitable for: Telemetry feature ▪tone-squelch operating ▪ remote battery monitoring ▪ optional PTT (push to talk) operation Configurable on ‘mic’...
  • Page 19 10mW (Japan) body color black (powder coating) max power 100mW (New Zealand) ▪ FREQUENCY RANGE 470-640 MHz OPTIONS: 566-798 MHz 510-698 MHz hole on battery housing for ADT40 For commercial code, see Variants area of Wisycom Products on website...
  • Page 20 New Zealand Limited to the range 502÷698MHz MTP40S-0W1 / MTP40S-EUX is not an SRD device, thus it requires specific authorization by your local frequency authority! in accordance with KDB 447498 D01 General RF Exposure Guidance v05r02. Before putting the device into operation, please...

  • Page 21: Manufacturer Declarations

    In order to protect the environment, only dispose of exhausted batteries. FCC Conformity The Wisycom microphone pocket transmitter model MTP40S complies with the following requirements: - FCC (Federal Communications Commission) Part 74...
  • Page 22 MTP40S User Manual Industry Canada Conformity (MTP40S USX) This device complies with Industry Canada RSS-123. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

  • Page 23: Declaration Of Conformity

    MTP40S User Manual DECLARATION OF CONFORMITY...
  • Page 24 MTP40S User Manual Wireless System Communications Via Spin 156  I-36060 Romano d’Ezzelino  Italy Tel. +39 -0424 -382605  Fax +39 - 0424 - 382733 www.wisycom.com  e-mail: sales@wisycom.com...
