- Page 1 MTP60 U anUal UlTi band ireless rofessional ockeT ransMiTTer Rev.02 (ref. FW 1.3.0) Date: 09 March 2022...
-
Page 2: Product Overview

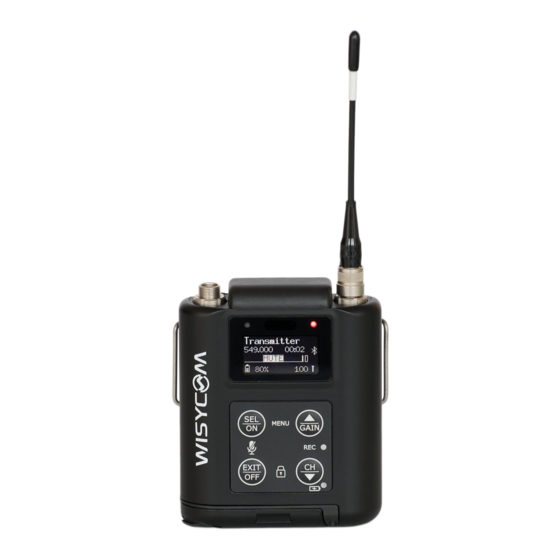

MTP60 multi-band bodypack transmitter PRODUCT OVERVIEW MENU GAIN EXIT 1. OLED white display (128x64 px) 8. IrDa (infared) interface 2. 4 setup buttons 9. LED3 for recording 3. battery compartment latch 10. LED4 for battery recharging 4. MIC connector (LEMO 3pin) 11. -
Page 3: Led Indications
ON Red slow blink when battery is < 25% Red fast blink when battery is < 12% (grey) when MTP60 is OFF • LED 3 - recording (grey) when recording is OFF when recording is active •... -
Page 4: Status Menu
Push SEL+UP buttons to enter on the Setup menu. Using UP/DOWN button all menus can be accessed in sequence and change the parameters value. Each change is immediately set on MTP60, it is not necessary to confirm the modification. Push EXIT button to exit from menu. -
Page 5: Quick Setup
• configure battery type (Settings>Battery menu). Lithium battery (code MPRLBP) is auto- matically detected by the MTP60 • enable IrDA interface and syncronize with Wisycom receiver • connect the correct antenna (see code on RF > Antenna menu) • set Mic Mode (Audio > Mic Mode menu) •... - Page 6 MTP60 multi-band bodypack transmitter...
- Page 7 Use L10 or L20 levels to set 10 mW or 20 mW of power *The transmitter is factory programmed with a power profile capable of complying with the regulations in force in the country of sale of the MTP60. this profile limits the selectable frequencies and the maximum power level allowed.
- Page 8 Narrowband or Wideband. This reduces or expands the spectrum occupation of the MTP60 Transmitter. When the transmitter is set to WideBand the audio bandwidth is limited to 20 KHz and the peak deviation is set to ±56 kHz so that the occupied bandwidth is approx.
- Page 9 If PTT is set to Mute, the audio is muted when the Push to Talk button is pushed. If PTT is set to ON, Wisycom receiver is able to do an audio routing according to Tone squelch matrix set on the receiver (see receiver user manual for more details).
- Page 10 Use arrows to move the cursor between START/STOP and JAM function. Push SEL button to activate the function. The MTP60 records 32-bit float RF64 WAV (over 4 GB) files at 48 kHz sampling rates. Bit Depth can be change to 24 bit using “Recorder > BitDepth” menu.
-
Page 11: Audio Connector
(voltage, temperature and alarms). BATTERIES MTP60 works with 2 x AA battery (Alkaline, Lithium, NiMh) and lithium battery pack (code MPRLBP, 5.55 Wh). When using AA batteries, select correct type on Setting>Bat. AA menu, while Lithium battery pack is recognized automatically. -
Page 12: Technical Specification
Telemetry feature • remote battery monitoring • optional PTT (push to talk) operation ENS - Wisycom ultra-high permorfmance compander Noise Reduction system Audio frequency response (dBa): • 45 Hz ÷ 17 KHz (3dB) in NarrowBand mode (NB) AF bandwidth •... - Page 13 MTP60 is supplied with • 2 AA Alkaline batteries • 1 wire belt clip (BCLW60) • antenna kit: according to the configuration of MTP60 the following kit antennas are sup- plied: MTP60-US and MTP60-CA MTP60-UK2 AWF30-B1-507 (470-548 Mhz) AWF30-B3-552 (510-595 Mhz)
-
Page 14: Manufacturer Declarations
MTP60 multi-band bodypack transmitter MANUFACTURER DECLARATIONS In compliance with the following requirements: RoHS Directive (2002/95/EC) WEEE Directive (2002/96/EC) Please dispose of the diversity transmitter at the end of its operational lifetime by taking it to your local collection point or recycling center for such equipment Battery Directive (2006/66/EC) The supplier batteries or rechargeable batteries can be recycled. - Page 15 This radio transmitter IC: 11967A-MTP60 has been approved by Industry Canada to operate with the an- tenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated.
-
Page 16: Safety Instruction
MTP60 multi-band bodypack transmitter SAFETY INSTRUCTION • Read this safety instruction and the manual first • Follow all instructions and information. • Do not lose this manual. • Do not use this apparatus under the rain or near the water. - Page 17 MTP60 multi-band bodypack transmitter...
