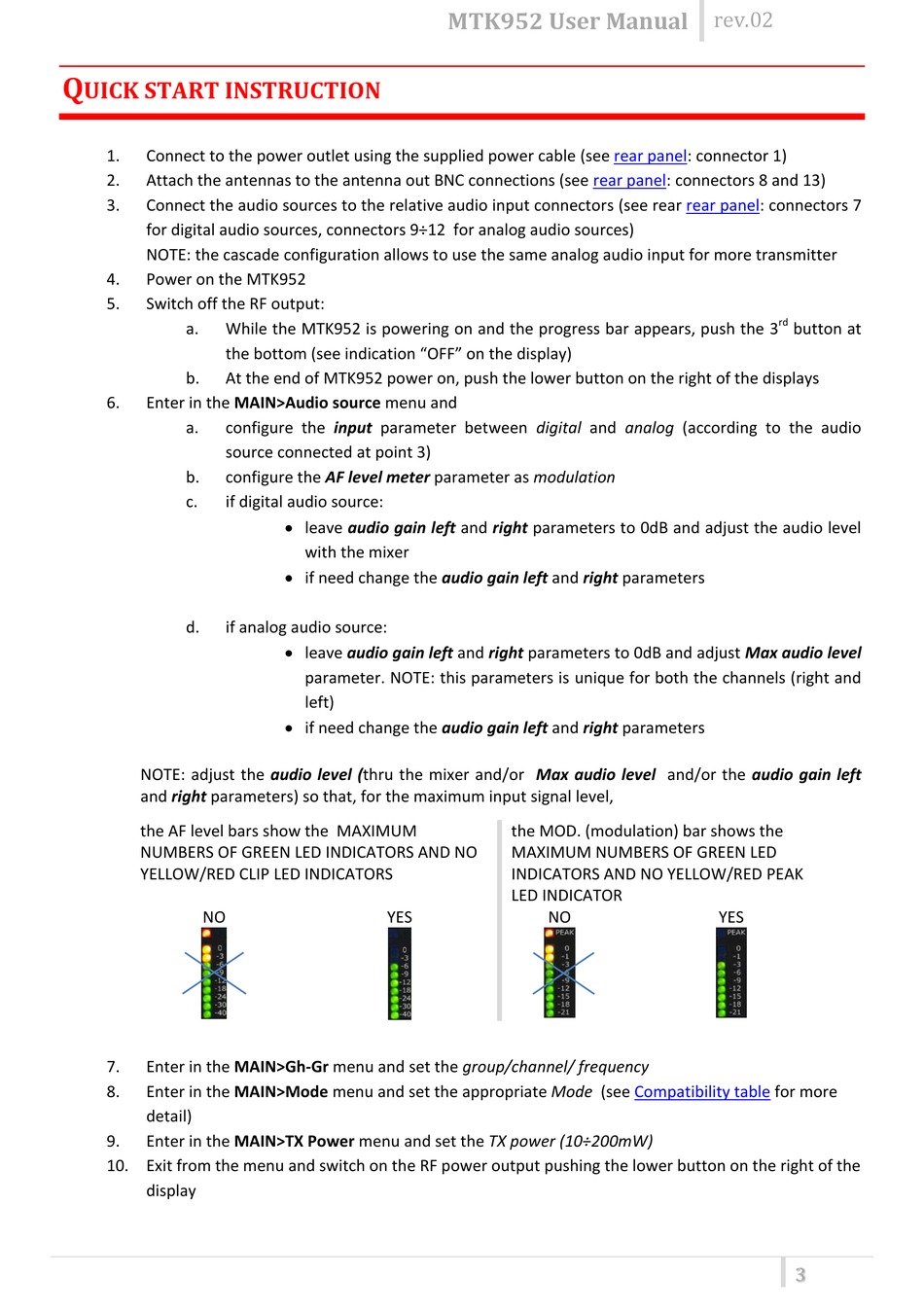

Quick Start Instruction - WisyCom MTK952 User Manual

Q
UICK START INSTRUCTION
1. Connect to the power outlet using the supplied power cable (see
2. Attach the antennas to the antenna out BNC connections (see
3. Connect the audio sources to the relative audio input connectors (see rear
for digital audio sources, connectors 9÷12 for analog audio sources)
NOTE: the cascade configuration allows to use the same analog audio input for more transmitter
4. Power on the MTK952
5. Switch off the RF output:
a. While the MTK952 is powering on and the progress bar appears, push the 3
the bottom (see indication "OFF" on the display)
b. At the end of MTK952 power on, push the lower button on the right of the displays
6. Enter in the MAIN>Audio source menu and
a. configure the input parameter between digital and analog (according to the audio
source connected at point 3)
b. configure the AF level meter parameter as modulation
c. if digital audio source:
d. if analog audio source:
NOTE: adjust the audio level (thru the mixer and/or Max audio level and/or the audio gain left
and right parameters) so that, for the maximum input signal level,
the AF level bars show the MAXIMUM
NUMBERS OF GREEN LED INDICATORS AND NO
YELLOW/RED CLIP LED INDICATORS
NO
7. Enter in the MAIN>Gh-Gr menu and set the group/channel/ frequency
8. Enter in the MAIN>Mode menu and set the appropriate Mode (see
detail)
9. Enter in the MAIN>TX Power menu and set the TX power (10÷200mW)
10. Exit from the menu and switch on the RF power output pushing the lower button on the right of the
display
MTK952 User Manual
 leave audio gain left and right parameters to 0dB and adjust the audio level
with the mixer
 if need change the audio gain left and right parameters
 leave audio gain left and right parameters to 0dB and adjust Max audio level
parameter. NOTE: this parameters is unique for both the channels (right and
left)
 if need change the audio gain left and right parameters
YES
rear panel: connector 1)
rear panel: connectors 8 and 13)
the MOD. (modulation) bar shows the
MAXIMUM NUMBERS OF GREEN LED
INDICATORS AND NO YELLOW/RED PEAK
LED INDICATOR
NO
Compatibility table
rev.02
rear panel: connectors 7
rd
button at
YES
for more
3
