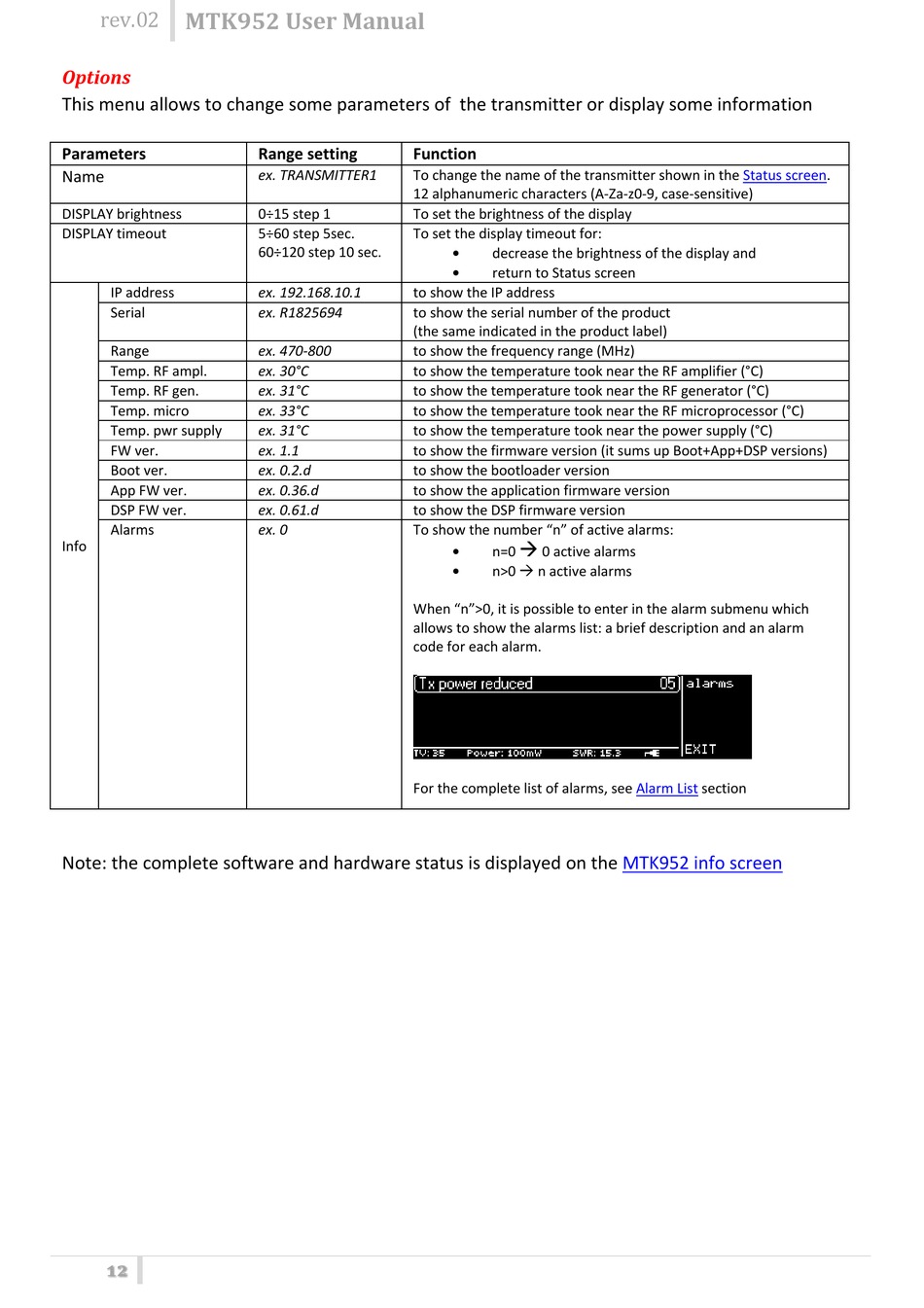

Options
This menu allows to change some parameters of the transmitter or display some information
Parameters
Name
DISPLAY brightness
DISPLAY timeout
IP address
Serial
Range
Temp. RF ampl.
Temp. RF gen.
Temp. micro
Temp. pwr supply
FW ver.
Boot ver.
App FW ver.
DSP FW ver.
Alarms
Info
Note: the complete software and hardware status is displayed on the
12
Range setting Function
ex. TRANSMITTER1 To change the name of the transmitter shown in the
12 alphanumeric characters (A-Za-z0-9, case-sensitive)
0÷15 step 1 To set the brightness of the display
5÷60 step 5sec. To set the display timeout for:
60÷120 step 10 sec.
ex. 192.168.10.1 to show the IP address
ex. R1825694 to show the serial number of the product
(the same indicated in the product label)
ex. 470-800 to show the frequency range (MHz)
ex. 30°C to show the temperature took near the RF amplifier (°C)
ex. 31°C to show the temperature took near the RF generator (°C)
ex. 33°C to show the temperature took near the RF microprocessor (°C)
ex. 31°C to show the temperature took near the power supply (°C)
ex. 1.1 to show the firmware version (it sums up Boot+App+DSP versions)
ex. 0.2.d to show the bootloader version
ex. 0.36.d to show the application firmware version
ex. 0.61.d to show the DSP firmware version
ex. 0 To show the number "n" of active alarms:
When "n">0, it is possible to enter in the alarm submenu which
allows to show the alarms list: a brief description and an alarm
code for each alarm.
For the complete list of alarms, see

decrease the brightness of the display and

return to Status screen


n=0 0 active alarms

n>0  n active alarms
MTK952 info screen
Status screen.
Alarm List section
