Summary of Contents for WisyCom MTK982

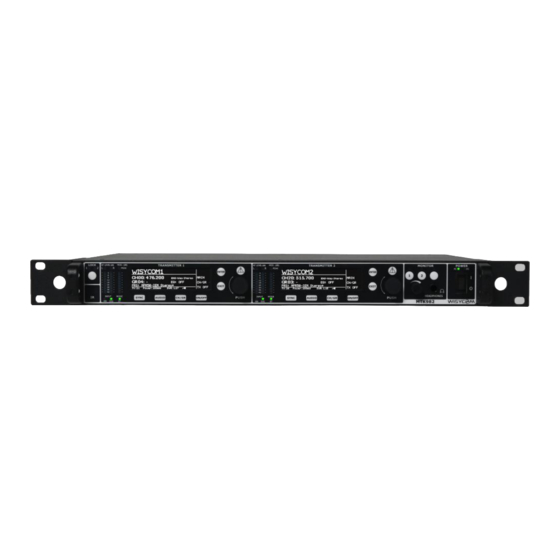

- Page 1 MTK982 User Manual Dual Transmitter Mono - Stereo - Intercom Modulation rev.03 (ref. FW 1.0.0) Date: 03 August 2023...
-
Page 2: Safety Instruction
MTK982 User Manual rev.03 AFETY INSTRUCTION • Read this safety instruction and the manual first • Follow all instructions and information. • Do not lose this manual. • Do not use this apparatus under the rain or near the water. -
Page 3: Quick Start Instruction
9÷12 for analog audio sources) NOTE: the cascade configuration allows to use the same analog audio input for more transmitter Power on the MTK982 Switch off the RF output: Enter in the AUDIO menu and... - Page 4 ANEL ONTROL AND UNCTIONS MTK982 allows an easy and quick configuration using buttons, push knobs and displays. The front panel is functionally divided in the following section: A – LOCK and IrDA Lock button allows to lock editing of one of both the transmitters.
-
Page 5: Rear Panel
MTK982 User Manual rev.03 ANEL ❶❷❸ ❹ ❺ ❻ ❼ ❾ ❿ ⓫ ⓬ ❽ ⓭ ⓮ ⓯ ❶ Ground point To connect the rack to ground ❷ AC Power Plug AC mains power input, IEC Connector 90-264 Vac ❸... -
Page 6: Lcd Display
DISPLAY RANSMITTER MENU MTK982 info screen Switch on the MTK982 and by pushing one of rotatory knobs (at the right of the display) all the basic information are displayed: Display of TRANSMITTER 1 Display of TRANSMITTER 2 On the display of TX2, it is possible to check the max level of power transmitted of the MK952, the ❶... - Page 7 MTK982 User Manual rev.03 ENU TREE Save User 0-3 Load User 0-3 Preset ENR-Wisy Stereo / EVO Stereo / ENC-Wisy Stereo / SR Stereo / ENR-Wisy / ENC-Wisy / IFB-Wisy/ EVO / SEN / Factory Preset SEN -d0 / COM-Wisy 25K / COM-Wisy 20K / COM-Wisy 12K5 / USER 1..7 / *...
- Page 8 MTK982 User Manual rev.03 Mono / Stereo Compander FM Peak deviation 2÷100 kHz Pre-Emphasis bypass/10-70us Mode Edit LP Filter 15000/12000/7000/4000/3000 Hz HP Filter Flat/20/40/60/80/120/170/250/300 Hz TSQ Frequency 30÷260 Hz /28÷34 kHz TSQ Deviation OFF/100 Hz ÷ 5 kHz G: -12 ÷ 12 dB...
- Page 9 Number (1 to 40) and Group name (8 char.) Group description (30 char.) The MTK982 has 40 groups of 60 channels each. Normally this is too much for wireless microphones applications. Connecting with computer with WISYCOM Rack MANAGER software, it is possible to hide single channels or even complete groups of channels: once hidden those items are not shown anymore on the channels or groups selection.
-
Page 10: Group Name
This menu allows to decide if turn ON or turn OFF the RF power of the transmitter while the MTK982 is powering on. If set to No: while the MTK982 is powering on, the RF output remains mute. The Status Screen on the display shows “TX OFF “ and the set Group, Channel and frequency. - Page 11 MTK982 User Manual rev.03 (only for analog input) both R(right) and L(left) channels input Audio gain left -20÷24dB To change (increase or decrease) the input level of the left channel on DSP Audio gain right -20÷24dB To change (increase or decrease) the input level of the right...
- Page 12 MTK982 User Manual rev.03 rotate it to change the value of the parameter. The set value is showed on the bottom of the windows (see points ❹ and ❺ on the above image). Push the lower membrane button to go on the next windows.
- Page 13 If the synchronization is successful, the display of the devices shows number of channel and group or SYNC channel according to the frequency plan memorized on the Wisycom product: CASE A: if frequency, channel and group are the same in the two devices, channel and group are also displayed (ex: CH00: 566.000, GR39: Unlock)
- Page 14 MTK982 User Manual rev.03 Scan The SCAN function allows to display a results of a scan previously done from a MPR50-IEM or MPR52-ENG. ➢ Do a scan with an MPR50-IEM ➢ Enable the IRDA on the receiver or select the function Deploy on the SCAN menu (only...
- Page 15 MTK982 User Manual rev.03 ➢ Use the membrane buttons on display2 to set the frequency to TX1 – TX2 NOTE: The results of the scan are saved on the volatile memory of the transmitter: After the switch off of the transmitter the data are lost.
-
Page 16: Alarm List
MTK982 User Manual rev.03 Alarm List When an alarm occurs, the MTK982 can do one or more of the following acts: A. Show a message on the display B. Turn on the yellow or red alarm led C. Insert the alarm on the alarm list in the MAIN>Options>Info>Alarms menu The alarm can be related to a specific transmitter (TX1 or TX2) or general. -
Page 17: Troubleshooting
0x02 or 0x03 on the alarm list) > 60°C - switch off the MTK982 for cooling and check the location temperature - clean the ventilation grids Fan #1 doesn't work The fan on the left (#1) doesn’t... - Page 18 MTK982 User Manual rev.03 Mode setting & Wisycom receiver compatibility NOTE: receiver and transmitter have to be configured with the same compander type...
-
Page 19: Technical Specification
±56 kHz for mono wideband, ±35 kHz for mono narrowband, ±48 kHz for stereo Peak deviation (preset mode) MPX Pilot tone 19kHz 32.789Hz (for Wisycom wireless microphone, i.e. ENR/ENC) Tone squelch 131,8 (for Wisycom intercom, i.e. NR) NOTE: custom setting can change the Tone squelch (30-260Hz and 18-38KHz) Spurious emissions <... - Page 20 MTK982 User Manual rev.03 Configurations MTK982 - <Country> - <PowerSupply> Country Power Profile: Europe (max power 50mW) Europe (max power 200mW for 0W2, 2Watt for 2W0) Canada Power Supply: redundant Vdc power supply...
- Page 21 50mW 470,075‐607,925 PART 15 20 mW MTK982-U15 FCC-ID: POUMTK982 614,075‐615,925 653,075‐656,925 657,075‐662,925 MTK982-EUX is not an SRD device, thus it requires specific authorization by your local frequency authority! Before putting the device into operation, please observe the respective country-specific regulations!
-
Page 22: Manufacturer Declarations
MTK982 User Manual rev.03 MANUFACTURER DECLARATIONS In compliance with the following requirements • RoHS Directive (2002/95/EC) • WEEE Directive (2002/96/EC) Please dispose of the diversity transmitter at the end of its operational lifetime by taking it to your local collection point or recycling center for such... - Page 23 2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Les antennes ne sont pas fournies avec cet appareil. Cet émetteur radio (IC : 11967A-MTK982) a été approuvé par Industrie Canada pour fonctionner avec l'antenne ayant un gain maximum de 3 dBi. Antennes ayant un gain supérieur sont strictement interdites pour une utilisation avec ce produit.
- Page 24 -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. Changes or modifications made to this equipment not expressly approved by Wisycom srl may void the FCC authorization to operate this equipment.
- Page 25 MTK982 User Manual rev.03 Via Tiepolo, 7/E • 35019 Tombolo (PD) • Italy Tel. +39 -0424 -382605 • Fax +39 - 0424 - 382733 www.wisycom.com • e-mail: sales@wisycom.com...
