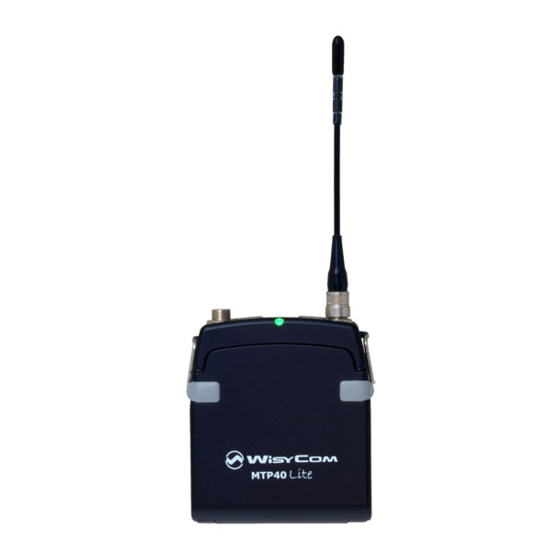

MTP40 Lite User Manual
Wideband Wireless
Professional Pocket
Transmitter
SN: ________________
Rev.02 (rif. FW 1.10.0L)
Author: Support
Date: 22 October 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTP40 Lite and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for WisyCom MTP40 Lite

Summary of Contents for WisyCom MTP40 Lite

  • Page 1 MTP40 Lite User Manual Wideband Wireless Professional Pocket Transmitter SN: ________________ Rev.02 (rif. FW 1.10.0L) Author: Support Date: 22 October 2014...
  • Page 2 Very easy and quick to use thanks to OLED display, dedicated buttons and a joggle selector. MTP40 Lite benefits also of the latest Wisycom RF technology along with an enhanced robustness against noise and inter-modulation. Fig. 1...

  • Page 3: Safety Instruction

    Ptt status: red if active (push to talk “pushed”). ATTERIES MTP40 Lite is working with 2 AA alkaline or NiMH batteries (select correct type on setup controls). Battery status can be checked on internal OLED display or looking to LED status on power switch (see 1.1).

  • Page 4: Setup Control

    MTP40 Lite User Manual Rev.02 OWERING UP Move the wireless power switch (see Fig. 1) in “I” position to activate wireless transmission: a green LED lights up (blinking when battery is low!) ETUP CONTROL Open transmitter Body to access the “display and controls” area (Fig. 3):...

  • Page 5: Display Menu

    MTP40 Lite User Manual Rev.02 DISPLAY MENU Setup menu are accessed in sequence: STATUS Current FACTORY/USER/PRESET1/2/3/4/5/6/7/8 PRESET Load from Save to USER 00-59 00-39 TUNING G: 470.000÷566.000 H: 542.000÷640.000 Freq I: 566.000÷686.000 L: 678.000÷798.000 K:520.000÷640.000 AF In Gain -20÷40 dB (1dB step)
  • Page 6 The other 8 configuration presets are user programmable thru the infrared and the PC interface (using the programmer UPK 300 or the receiver MRK950/MRK960). All parameters can be “left unchanged”, “changed” or “changed and lock”, allowing a very flexible way to pre-program MTP40 Lite configuration.
  • Page 7 MTP40 Lite User Manual Rev.02 <TUNING> menu This menu can be entered by scrolling selector or using quick channel setup buttons (<ch>). In this menu current channel/group and frequencies can be setup. Use the selector to change values (<+/->) and <click>...
  • Page 8 MTP40 Lite User Manual Rev.02 <NOISE RED> menu This menu can be entered by scrolling selector. MTP40 Lite supports 2 different type of “Companding systems” ENR: designed for maximum noise reduction ENC: designed for maximum audio fidelity (use this in...
  • Page 9 The following table sums up which parameters can be set and the related range settings. MENU PARAMETER MEANING RANGE SETTINGS Channel 0 ÷ 59 Group 0 ÷ 39 + SYNC GROUP depends on the MTP40 Lite Model: 470-566 TUNING 542-640 Freq Frequency 566-686 678-798 520-640...
  • Page 10 MTP40 Lite User Manual Rev.02 MIC Mode setting (only for LEMO option): Pin out MIC Mode: Gain Led Mode Disable None 1=GND Normal ’2 wires’: -40/40 dB Mod. Peak 3=AF Muting No data Disable None 1=GND Normal ‘2 wires + bias’: -20/40 dB Mod.

  • Page 11: Accessories And Parts

    MTP40 Lite User Manual Rev.02 ACCESSORIES AND PARTS AWF30-B1-507 For MTP40-X-BFG Band 470 ÷ 566 MHz Antenna Code label AWF30-B1-590 For MTP40-X-BFH & FK Band 542 ÷ 640 MHz Antenna Code label AWF30-B2-616 For MTP40-X-BFI Antenna Code Band 566 ÷ 686 MHz...
  • Page 12 MTP40 Lite User Manual Rev.02 . 1.3.1.1 ISYCOM IR PROGRAMMER AND ABOVE Wisycom IR Programmer allows to read, modify and update the MTP40 Lite device configuration. It is necessary to  install Wisycom IR Programmer (version 1.3.1.1 or above) WARNING: If it is the first installation and Wisycom USB driver has not already installed in the PC, install the USB driver (run C:\Program Files (x86)\Wisycom\MTP&MTH Infrared Programmer (TX)\Drivers\ DriverInstaller.exe)

  • Page 13: Interface And Device Panel

    MTP40 Lite User Manual Rev.02 Figure 5: Wisycom IR Programmer’s window 10 different configurations are available: • FACTORY configuration is a locked configuration: no parameter can be changed.  USER configuration is the only configuration that can be saved using the OLED display (see <PRESET>...

  • Page 14: Tuning Frequencies Panel

    MTP40 Lite User Manual Rev.02 TUNING FREQUENCIES PANEL With the Tuning Frequencies panel the user can select a frequencies group (0÷39) and for each one execute the following operations: modify the Group’s Name lock and/or hidden the group for each channel (0 ÷59) of the selected group: change the frequency value and the...
  • Page 15 MTP40 Lite User Manual Rev.02 Using the LOAD/SAVE button, at the bottom of the panel, it is possible to load/save the frequencies for the selected group from/to a .wdf file. To save the frequencies of all the groups click to the related button above. The legacy option save the channels without the hidden/lock...

  • Page 16: Presets Panel

    Using a file menu at the top left of the panel it is possible to load/save all the configuration values of the device to/from a .wcf file (Wisycom Configuration File). Save a .wcf file With an infrared device correctly connected, select File->Save User Configuration and select the destination file.

  • Page 17: Technical Specifications

    FM, with 50 µs pre-emphasis Modulation ±40 kHz (Peak deviation = ±56 kHz) Nominal deviation MTP40 Lite transmits also a digitally modulated sub-carrier, suitable for: Telemetry ▪tone-squelch operating ▪ remote battery monitoring ▪ optional PTT (push to talk) operation feature Configurable on ‘mic’...
  • Page 18 MTP40 Lite User Manual Rev.02 ▪ approx. 10 hours @ 50mW continuous working MTP40 Lite ▪ approx. 14 hours @ 10mW continuous working Battery life (2 AA alkaline) 73 x 61 x 17.5 mm (Height-Width-Depth) without clip Dimensions Approx. 80 g. without batteries (120g with batt.)

  • Page 19: Declaration Of Conformity

    MTP40 Lite User Manual Rev.02 DECLARATION OF CONFORMITY...
  • Page 20 Wireless System Communications Via Spin 156  I-36060 Romano d’Ezzelino  Italy Tel. +39 -0424 -382605  Fax +39 - 0424 - 382733 www.wisycom.com  e-mail: sales@wisycom.com...
