Summary of Contents for WisyCom MTH410
- Page 1 MTH410 User Manual Wideband Wireless Professional Handheld Transmitter Rev.02 (rif. FW 1.30.0V) Date: 03 January 2020...
- Page 2 MTH410 User Manual...

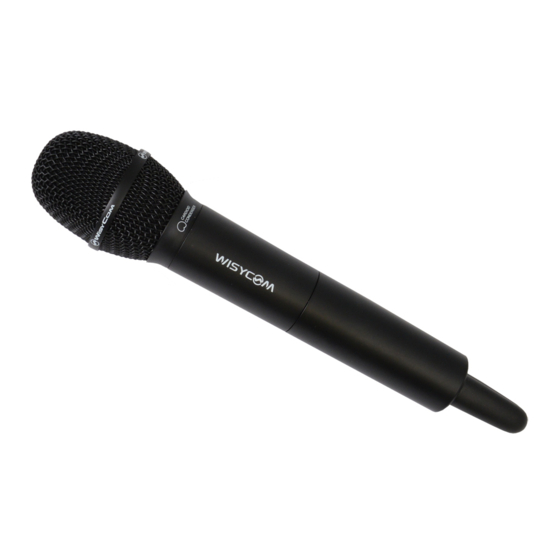

- Page 3 MTH410 User Manual NTRODUCTION MTH410 is a professional radio microphone especially designed for broadcast/high quality applications. MTH410 is composed by 3 detachable parts: • MIC Head (available with cardioid/hyper-cardioid polar pattern). • MIC Body (the below part can be open to access “Display & Setup controls” area (fig.1) and on the back the “Batteries holder &...
-
Page 4: Battery Substitution
ATTERIES MTH410 is working with 2 AA alkaline, NiMH or Lithium batteries (select correct type on setup controls). Battery status can be checked on internal OLED display or looking to LED status on power switch (see LED INDICATION section) ❸. -
Page 5: Oled Power Up (Oled Is In Off Condition)
MTH410 User Manual OWERING UP Move the wireless power switch (fig. 3) in upper position (towards MIC body) to activate wireless transmission: the front LED ❸ lights up red and then green when the RF transmission power is on (blinking when battery is low!) ETUP CONTROL Open MIC Body to access the “display and controls”... -
Page 6: Display Menu
MTH410 User Manual DISPLAY MENU Using up/down selector all menus can be accessed in sequence. STATUS Current FACTORY/USER/PRESET1/2/3/4/5/ PRESET Load 6/7/8 Save USER 00-59 TUNING 00-39 Freq depend on the bandwidth of the Tx AF In Gain -40÷40 dB (1dB step) AF Level -54÷+26dBu (1dB step) - Page 7 <PRESET> menu This menu can be entered by scrolling selector. MTP41 can recall configuration presets. “FACTORY” recalls the Wisycom factory configuration. “USER” recalls the user configuration (the transmitter configuration is copied into the USER using the “save to” submenu). All “USER” menus are not locked by default, thus this is quick way to...
- Page 8 Setting Narrowband modulation, FM peak deviation is ±35kHz MODULATION / LP FILTER and the audio filter can be set 12/15kHz. NOTE: MTH410 passes type of modulation (Wide/Narrow) to Wisycom receivers MPR52/MRK980 during the SYNC process. In this way the receiver MPR52/MRK980 automatically adapt the...
- Page 9 MTH410 User Manual <RF/BATTERY> menu This menu can be entered by scrolling selector. RF power can be setup to 10mW, 20mW, 50 mW or 100mW (depending on the Power profile). If it’s selected “10mW”, in the top right on the STATUS menu appear “RF10”.
- Page 10 On power on the device, the IRDA interface is enabled for 14 seconds. <LOCK> menu This menu can be entered by scrolling selector. Long pressing (2 sec.) selector button (click) it locks MTH410 in transmission mode. To unlock, long pressing (2 sec.) selector button again.
- Page 11 0 ÷ 59 Group 0 ÷ 39 + SYNC GROUP TUNING Freq Frequency It depends on the MTH410 Model: See technical spec. and variants for further details AF Gain Gain of the -40dB ÷ +40dB step of 1dB AF Level audio signal -54dBu ÷...
- Page 12 enable the IRDA communication on the transmitter (see IRDA menu) NOTE: Wisycom IR Programmer doesn’t work whit MRK950/MRK960 if it is connected to the PC using an Ethernet cable. The Wisycom IR Programmer’s window is divided in 4 parts (see the image below): ❶...
-
Page 13: Interface And Device Panel
MTH410 User Manual 10 different configurations are available: • FACTORY configuration is a locked configuration: no parameter can be changed. USER configuration is the only configuration that can be saved using the OLED display (see <PRESET> menu). Note: It is not possible to change the name of this configuration. -
Page 14: Tuning Frequencies Panel
MTH410 User Manual applied directly to the device and save in its memory but no saved in the preset configuration. ❸ TUNING FREQUENCIES PANEL ( With the Tuning Frequencies panel the user can select a frequencies group (0÷39) and for each one execute the following operations: modify the Group’s Name... - Page 15 MTH410 User Manual If the currently tuned channel is on the same group that is listed on the grid, the background color of the related cell (channel) on the grid becomes yellow. Using the LOAD/SAVE button, at the bottom of the panel, it is possible to load/save the frequencies for the selected group from/to a .wdf file.
-
Page 16: Presets Panel
Using a file menu at the top left of the panel it is possible to load/save all the configuration values of the device to/from a .wcf file (Wisycom Configuration File). Save a .wcf file With an infrared device correctly connected, select File->Save User Configuration and select the destination file. -
Page 17: Technical Specifications
▪ remote battery monitoring ▪ optional PTT (push to talk) operation Noise Reduction ENR (Wisycom Extended-NR), with independent Attack- and Recovery-time, noise optimized ENC (Wisycom Extended-NC), with independent Attack- and Recovery-time, voice optimized & with system reduced pre-emphasys AF bandwidth 45 Hz ÷... - Page 18 MTH410 User Manual Note: unit is mm For the commercial code, see in the Variants area of the Products on our website VARIANTS: ▪ COLOR ▪ POWER PROFILE & COUNTRY body color black FREQUENCY RANGE: body color titanium grey max power 50mW (Europe) max power 100mW* (Europe) ▪...
- Page 19 Limited to the range 502÷698MHz MTH410-EUX is not an SRD device, it requires specific authorization by your local frequency authority! Note: The above technical specifications refer to the MTH410 “transmitter” section. The acoustic specs are relevant to the microphone-head used. The MTH410 transmitter complies with ETSI 300 422.
-
Page 20: Manufacturer Declarations
MTH410 User Manual MANUFACTURER DECLARATIONS In compliance with the following requirements RoHS Directive (2002/95/EC) WEEE Directive (2002/96/EC) Please dispose of the diversity transmitter at the end of its operational lifetime by taking it to your local collection point or recycling center for such equipment ... -
Page 21: Industry Canada Conformity
MTH410 User Manual Industry Canada Conformity This device operates on a no-protection, no-interference basis. Should the user seek to obtain protection from other radio services operating in the same TV bands, a radio licence is required. For further details, consult Innovation, Science and Economic Development Canada’s document Client Procedures Circular CPC-2-1-28,... -
Page 22: Declaration Of Conformity
MTH410 User Manual DECLARATION OF CONFORMITY... - Page 23 MTH410 User Manual...
- Page 24 MTH410 User Manual Via Tiepolo, 7/E 35019 Tombolo (PD) Italy Tel. +39 -0424 -382605 Fax +39 - 0424 - 382733 www.wisycom.com e-mail: sales@wisycom.com...
