WisyCom MTP41 User Manual

Wideband wireless professional pockettransmitter
Hide thumbs Also See for MTP41:
Table of Contents

Advertisement

Quick Links

Download this manual
MTP41 User Manual
Wideband Wireless
Professional Pocket
Transmitter
SN: ________________
Rev.03 (rif. FW 1.30.0A)
Date: 20 February 2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MTP41 and is the answer not in the manual?

Questions and answers

Related Manuals for WisyCom MTP41

Summary of Contents for WisyCom MTP41

  • Page 1 MTP41 User Manual Wideband Wireless Professional Pocket Transmitter SN: ________________ Rev.03 (rif. FW 1.30.0A) Date: 20 February 2015...

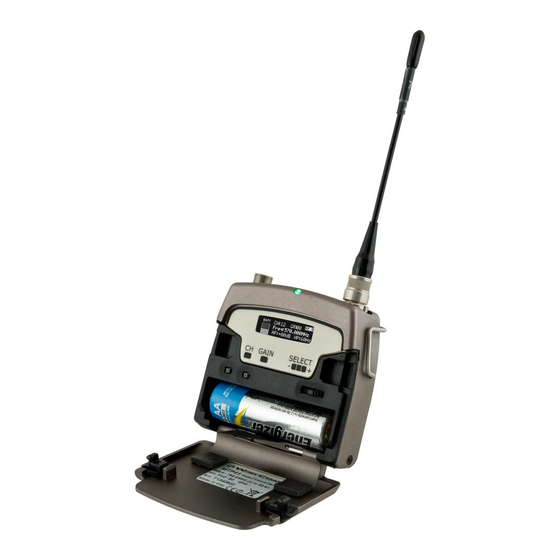

  • Page 2 “MTP41 is an extremely small and light pocket transmitter especially designed for professional wireless microphone applications” Very easy and quick to use thanks to OLED display, dedicated buttons and a joggle selector. MTP41 benefits also of the latest Wisycom RF technology along with an enhanced robustness against noise and inter-modulation. Fig. 1...

  • Page 3: Safety Instruction

    MTP41 User Manual AFETY INSTRUCTION  Read this safety instruction and the manual first  Follow all instructions and information.  Do not lose this manual.  Do not use this apparatus under the rain or near the water. ...

  • Page 4: Led Indications

    (push to talk “pushed”). ATTERIES MTP41 is working with 1 AA alkaline or NiMH or Lithium batteries (select correct type on setup controls). Battery status can be checked on internal OLED display or looking the LED status on front ❷.

  • Page 5: Setup Control

    MTP41 User Manual OWERING UP Move the wireless power switch (see Fig. 1) in “I” position to activate wireless transmission: the front LED ❷ lights up red and then green when the RF transmission power is on (blinking when battery is low!) ETUP CONTROL Open transmitter Body to access the “display and controls”...
  • Page 6 MTP41 User Manual ISPLAY STATUS FACTORY/USER/PRESET1/2/3/4/5/6/7/8 Current / Load PRESET Save USER 00-59 TUNING 00-39 1: 470.000÷640.000 Freq 2: 566.000÷798.000 3: 510.000÷698.000 AF In Gain -60 ÷ +40 dB (1dB step) AF Level -54 ÷ +46 dBu (1dBu step) Phase...
  • Page 7 - On left side, the battery bar is displayed <PRESET> menu This menu can be entered by scrolling selector MTP41 can recall configuration presets. “FACTORY” recalls the Wisycom factory configuration. “USER” recalls the user configuration (the transmitter configuration is copied into the USER using the “save to” submenu).
  • Page 8 <RF/BATTERY> menu This menu can be entered by scrolling selector. RF power can be setup to 100mW, 50mW or 10mW. Use the Battery menu to select the type of battery used. MTP41 support Alkaline/NiMH/Lithium battery type.
  • Page 9 MTP41 User Manual <LED> menu This menu can be entered by scrolling selector. Led Light allows to change the brightness of the front led (0÷16) . Led Mode: - ModPeak: allows to enable modulation peak LED on front led (become RED when audio get close to saturation)
  • Page 10 On power on the device, the IRDA interface is enabled for 14 seconds. <LOCK> menu This menu can be entered by scrolling selector. Long pressing (2 sec.) selector button (click) it locks MTP41 in transmission mode. To unlock, long pressing (2 sec.) selector button again.
  • Page 11 The following table sums up which parameters can be set and the related range settings. MENU PARAMETER MEANING RANGE SETTINGS Channel 0 ÷ 59 Group 0 ÷ 39 + SYNC GROUP depends on the MTP41 Model: TUNING 470-640 Freq Frequency 566-798 510-698 AF In Gain Gain of the -60dB ÷...
  • Page 12 MTP41 User Manual MIC Mode setting (only for LEMO option): Pin out MIC Mode: Gain Led Mode Disable None 1=GND Normal ’2 wires’: -60/40 dB Mod. Peak 3=AF Muting No data Disable None 1=GND Normal ‘2 wires + bias’: -60/40 dB Mod.

  • Page 13: How To Use Wisycom Tx Manager

     enable the IRDA communication on the transmitter (see IRDA menu) NOTE: Wisycom IR Programmer doesn’t work whit MRK950/MRK960 if it is connected to the PC using an Ethernet cable. The Wisycom IR Programmer’s window is divided in 4 parts (see the image below): ❶...

  • Page 14: Interface And Device Panel

    MTP41 User Manual 10 different configurations are available: • FACTORY configuration is a locked configuration: no parameter can be changed.  USER configuration is the only configuration that can be saved using the OLED display (see <PRESET> menu). Note: It is not possible to change the name of this configuration.

  • Page 15: Tuning Frequencies Panel

    MTP41 User Manual ❸ TUNING FREQUENCIES PANEL ( With the Tuning Frequencies panel the user can select a frequencies group (0÷39) and for each one execute the following operations: modify the Group’s Name lock and/or hidden the group for each channel (0 ÷59) of the selected group: change the frequency value and the...
  • Page 16 MTP41 User Manual If the currently tuned channel is on the same group that is listed on the grid, the background color of the related cell (channel) on the grid becomes yellow. Using the LOAD/SAVE button, at the bottom of the panel, it is possible to load/save the frequencies for the selected group from/to a .wdf file.

  • Page 17: Presets Panel

    Using a file menu at the top left of the panel it is possible to load/save all the configuration values of the device to/from a .wcf file (Wisycom Configuration File). Save a .wcf file With an infrared device correctly connected, select File->Save User Configuration and select the destination file.

  • Page 18: Technical Specifications

    Spurious emissions < 2 nW wideband FM with pre-emphasis Modulation ±40 kHz (Peak deviation = ±56 kHz) Nominal deviation MTP41 transmits also a digitally modulated sub-carrier, suitable for: Telemetry feature ▪tone-squelch operating ▪ remote battery monitoring ▪ optional PTT (push to talk) operation Configurable on ‘mic’...
  • Page 19 MTP41 User Manual Note: unit is mm MTP41 POWER PROFILE & COUNTRY FREQUENCY RANGE: max power 50mW (Europe) max power 50mW (USA & Canada) max power 10mW (Japan) VARIANTS: ▪ AUDIO CONNECTOR 3 PIN LEMO CONNECTOR 2 PIN DPA MICRODOT CONNECTOR ▪...
  • Page 20 MTP41 User Manual Compliance Model In Compliance with Max Power Country EN 301 489-1/-9 MTP41 Europe EN 600065 50mW MTP41-EU EN 300 422-1/-2 PART 74 FCC-ID: POUMTP41 MTP41-US 50mW USA, Canada RSS-123, RSS-102 IC: 11967A-MTP41 Limited to 698MHz 202-LSC056 MTP41-JP...

  • Page 21: Manufacturer Declarations

    MTP41 User Manual MANUFACTURER DECLARATIONS In compliance with the following requirements  RoHS Directive (2002/95/EC)  WEEE Directive (2002/96/EC) Please dispose of the diversity transmitter at the end of its operational lifetime by taking it to your local collection point or recycling center for such equipment ...
  • Page 22 MTP41 User Manual Industry Canada Conformity (MTP41) This device complies with Industry Canada RSS-123. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
  • Page 23 MTP41 User Manual EC D ECLARATION OF ONFORMITY...
  • Page 24 MTP41 User Manual Wireless System Communications Via Spin 156  I-36060 Romano d’Ezzelino  Italy Tel. +39 -0424 -382605  Fax +39 - 0424 - 382733 www.wisycom.com  e-mail: sales@wisycom.com...
