P
RODUCT OVERVIEW

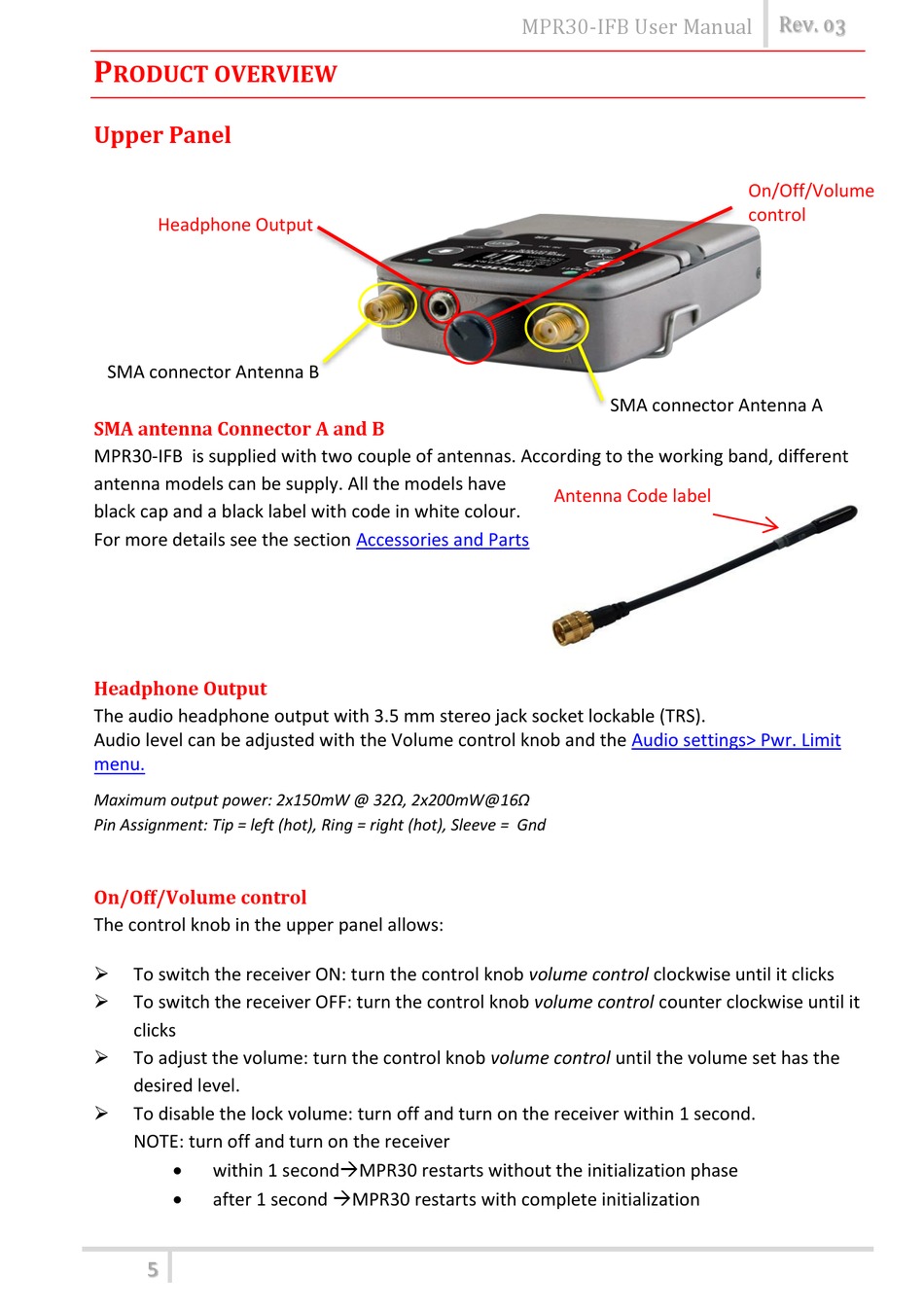

Upper Panel

Headphone Output
SMA connector Antenna B
SMA antenna Connector A and B
MPR30-IFB is supplied with two couple of antennas. According to the working band, different
antenna models can be supply. All the models have
black cap and a black label with code in white colour.
For more details see the section
Headphone Output
The audio headphone output with 3.5 mm stereo jack socket lockable (TRS).
Audio level can be adjusted with the Volume control knob and the
menu.
Maximum output power: 2x150mW @ 32Ω, 2x200mW@16Ω
Pin Assignment: Tip = left (hot), Ring = right (hot), Sleeve = Gnd
On/Off/Volume control
The control knob in the upper panel allows:

To switch the receiver ON: turn the control knob volume control clockwise until it clicks

To switch the receiver OFF: turn the control knob volume control counter clockwise until it
clicks

To adjust the volume: turn the control knob volume control until the volume set has the
desired level.

To disable the lock volume: turn off and turn on the receiver within 1 second.
NOTE: turn off and turn on the receiver

within 1 secondMPR30 restarts without the initialization phase

after 1 second MPR30 restarts with complete initialization
5
MPR30-IFB User Manual
Accessories and Parts
SMA connector Antenna A
Antenna Code label
Audio settings> Pwr. Limit
Rev. 03
On/Off/Volume
control
