Using the 1:11 HDD Copy Cruiser IDE/SATA
Loading and Unloading Hard Drives
B. Loading SATA Hard Drives

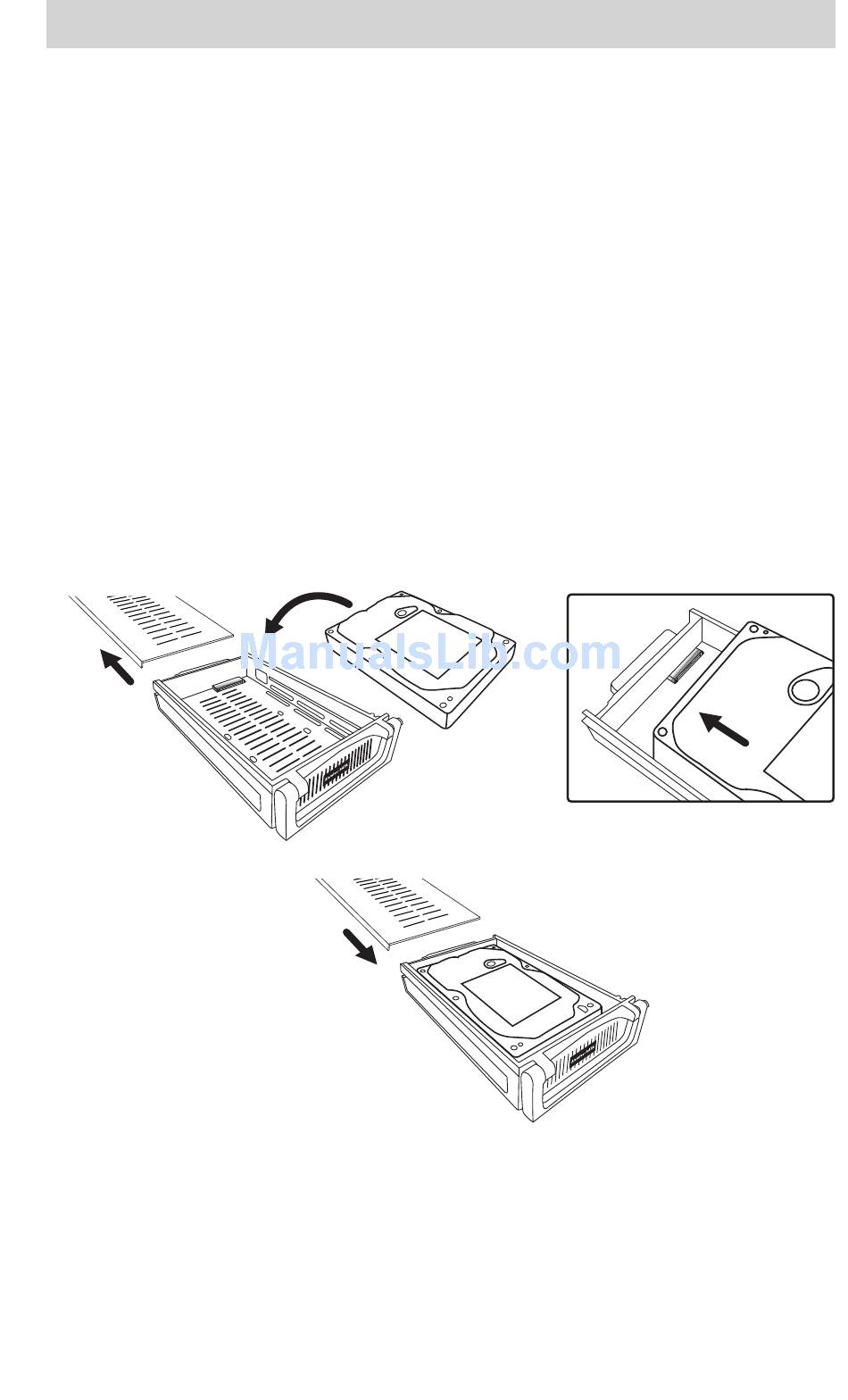

1. Remove the top cover of an included SATA HDD Tray by sliding it toward the
rear of the tray.
2. Carefully place the hard drive into the tray with the top of the drive facing up
and the drive's SATA port facing the back of the tray.
3. Align the hard drive's SATA port with the tray's SATA connector.
4. Gently slide the hard drive toward the rear of the tray until the SATA connector
is fully docked.
5. Slide the top cover back onto the tray until it snaps into place.
6. Unlock the HDD Bay.
7. Insert the tray into the HDD Bay and push in firmly until the tray is flush.
8. Lock the HDD Bay.
1.
C. Unloading Hard Drive Trays from the Unit
1. Unlock the HDD Bay.
2. Pull the HDD Tray handle up and gently pull the tray out.
3.
www.aleratec.com
2.
