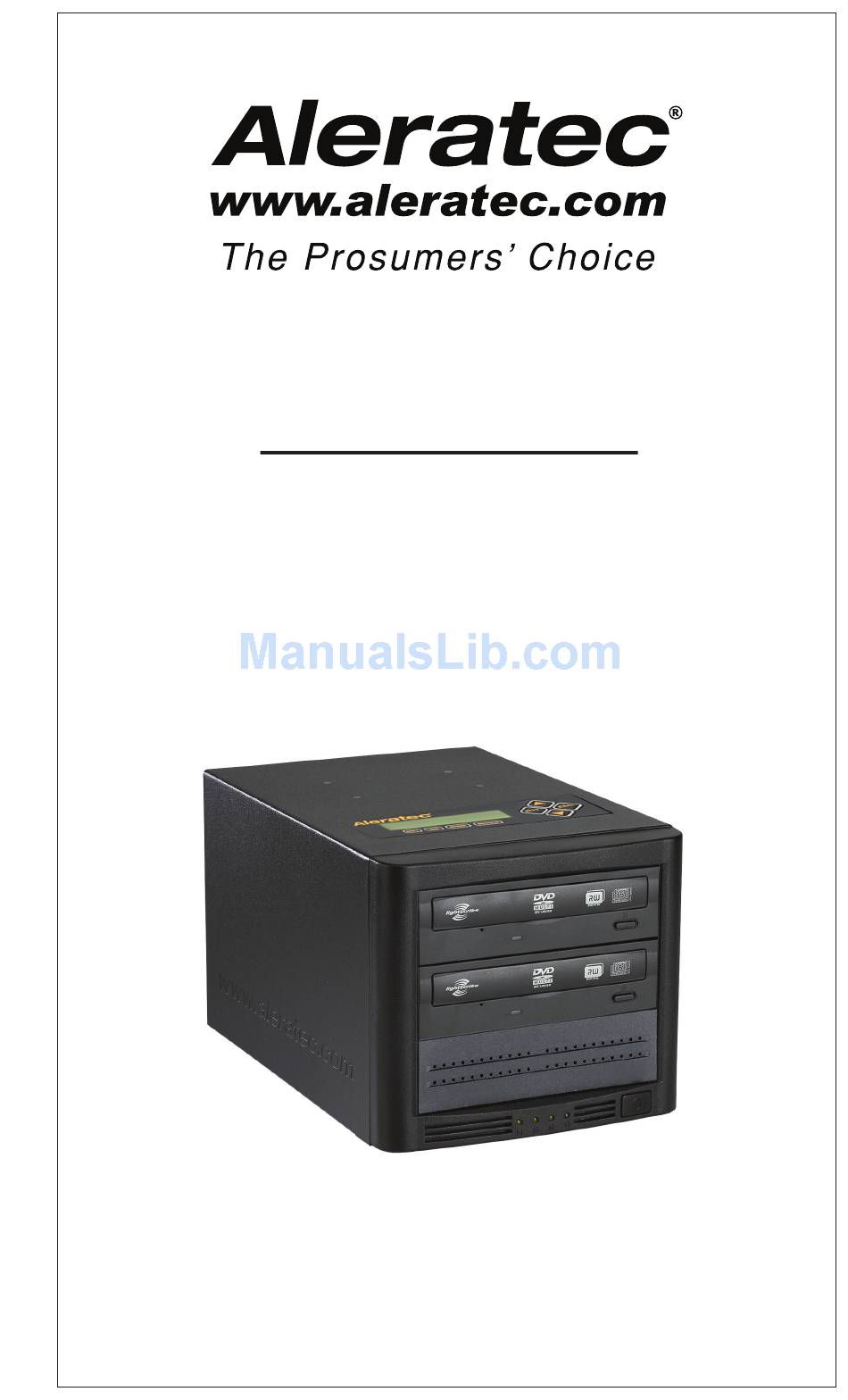

USER GUIDE
Aleratec
1:2 DVD/CD Copy Cruiser Pro HLX
TM
Win/Mac
Part No. 260167

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 260167 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aleratec 260167

Summary of Contents for Aleratec 260167

  • Page 1 USER GUIDE Aleratec 1:2 DVD/CD Copy Cruiser Pro HLX Win/Mac Part No. 260167...
  • Page 2 Aleratec, Inc. 9851 Owensmouth Avenue Chatsworth, CA 91311 U.S.A. www.aleratec.com 1:2 DVD/CD Copy Cruiser Pro HLX™ is a trademark of Aleratec, Inc. Please record the following information to help expedite any warranty claim: Model No. _____________________ Serial No._____________________ Date Purchased ________________________________________________...
  • Page 3 Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and/or modifications made to this equipment, without the approval of manufacturer, could void the user’s authority to operate this equipment. www.aleratec.com...
  • Page 4 The use of optical instruments with this product will increase eye hazard. This DVD/CD Duplicator is classified as a CLASS 1 LASER PRODUCT. The CLASS 1 LASER PRODUCT label is located on top of the internal drive enclosure. CLASS 1 LASER PRODUCT LASER KLASSE 1 PRODUKT www.aleratec.com...

  • Page 5: Table Of Contents

    Table of Contents Introduction ..................1 Check out Aleratec Online! ..............1 Key Items – 1:2 DVD/CD Copy Cruiser Pro HLX Win/Mac ....2 Front Panel ....................3 DVD/CD Copy Cruiser Pro HLX Win/Mac Display Panel ....4 Precautions ..................5 Installation ....................5 Operation ....................5 Transportation ..................5 Overview ....................6...
  • Page 6 www.aleratec.com...

  • Page 7: Introduction

    Mac. Please read this User Guide thoroughly before using this product. • Page 3 shows the front panel of the 1:2 DVD/CD Copy Cruiser Pro HLX Win/Mac. • Page 4 shows the Duplicator LCD Display Panel. Check out Aleratec Online! • www.aleratec.com • www.twitter.com/Aleratec •...

  • Page 8: Key Items - 1:2 Dvd/Cd Copy Cruiser Pro Hlx Win/Mac

    Do not place near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock. Good care will help assure maximum product life. Improper operating environment and misuse may void the warranty. www.aleratec.com...

  • Page 9: Front Panel

    Emergency Eject hole to open the tray. 3 Drive LEDs This indicator lights up when data is being accessed or when data is being recorded on a disc. 4 Eject Button This button is used to open or close the tray. www.aleratec.com...

  • Page 10: Dvd/Cd Copy Cruiser Pro Hlx Win/Mac Display Panel

    Introduction DVD/CD Copy Cruiser Pro HLX Win/Mac Display Panel www.aleratec.com  Display shows all functions and messages ENT button is used to execute a selected function ESC button is used to cancel a selected function UP arrow is used to scroll up through functions or menus DOWN arrow is used to scroll down through functions or menus www.aleratec.com...

  • Page 11: Precautions

    Note: The 1:2 DVD/CD Copy Cruiser Pro HLX Win/Mac must never be cleaned with a lens cleaning kit! Transportation Keep the original packing materials for future moving or shipping of the 1:2 DVD/CD Copy Cruiser Pro HLX Win/Mac. www.aleratec.com...

  • Page 12: Overview

    11. Setup   6. Prescan 12. Adv Setup   Note: Main Menu items “Select Source” (number 8) and “Image” (number 9) are not supported. Note: Main Menu items “Edit Track” (number 10) is for Audio disc only. www.aleratec.com...

  • Page 13: Subfunctions

    Overview Subfunctions The main menu “Edit Track” (for Audio disc only) function has 4 subfunctions. These are: 10.1 CD to CD Edit 10.2 (Not supported) 10. Edit Track  10.3 Play Audio Track 10.4 Close Session www.aleratec.com...
  • Page 14 11.11 Burn On The Fly* 11.12 Burn Mode* 11.13 Display Time 11.14 Button Sound* 11.15 Device Info (Not supported) 11.16 System Info 11.17 Quick Erase Disc 11.18 Full Erase Disc Note: Functions with options are indicated with an asterisk (*). www.aleratec.com...
  • Page 15 12.08 Compare Firmware 12.09 Hardware Diagnostic 12.10 Load Default 12.11 CD+G Format (Not supported) 12.12 ISRC 12.13 CD-Text (Not supported) 12.14 USB Option 12.15 USB Auto-Link 12.16 Use Big Block Note: Functions with options are indicated with an asterisk (*). www.aleratec.com...

  • Page 16: Using The Dvd/Cd Duplicator

    • In case of emergency, insert the straightened end of a large paper clip or similar rigid object into the Emergency Eject Pinhole to open the tray. Then gently pull the tray out. www.aleratec.com...

  • Page 17: Power Up Sequence

    A failed disc will remain in the DVD/CD-Recorder. (Default setting: A failed disc is NOT ejected.) To manually eject a disc, press the ENT button to eject a failed disc or press the eject button on the DVD/CD- Recorder to eject the disc. www.aleratec.com...

  • Page 18: Main Menu

    RW, DVD+RW, or CD-RW discs inserted as blanks as any DVD/CD-RW discs inserted in the DVD/CD-Recorder to be used as blank media will automatically be erased, and then the content from the source disc will be recorded on them. www.aleratec.com...
  • Page 19 When copying audio CDs, it is highly recommended to copy at a speed of 16x or lower to ensure the best possible quality audio reproduction. Go to “Setup” and then “Burning Speed” to change copy speed before selecting tracks. www.aleratec.com...
  • Page 20 Erasing Disc  The LCD will display the status of the erasing and testing of the DVD/ Testing 650.0MB 74:00  When the process is completed, the LCD will display the status. 2. Test OK: 03  www.aleratec.com...
  • Page 21 When testing is completed, the duplicator will start writing data onto the DVD/CD-R/RW disc. Testing 650.0MB 74:00  Copying 650.0MB 74:00  When the process is completed, the LCD will display the status. 3. Test & Copy OK: 03  www.aleratec.com...
  • Page 22 ENT button to start disc verifying, or press ESC to exit. Press the 4. Verify  The LCD will display the status of the verification. Verify 650.0MB 74:00  When the process is completed, the LCD will display the result. 4. Verify OK: 03  www.aleratec.com...
  • Page 23 OK: 3 Fail: 0 Diff: 0  Press ENT again for the status of each copy. Src: 01 DVD/CD-ROM Total: 650.0MB  If the compare result is identical, the LCD will display the message shown. Src: 02 DVD/CD-RW Identical  www.aleratec.com...
  • Page 24  ENT button again for the status of each copy. Press the Src: 01 DVD/CD-ROM Total: 0 Bytes  If the comparison fails, the LCD will display the reason for the failure. Src: 02 DVD/CD-RW TOC not match  www.aleratec.com...
  • Page 25 74:00  If a disc can be read correctly, the LCD will display OK. Prescan OK!  If it cannot read the source disc correctly, the LCD will display FAIL. A FAIL disc cannot be copied. Prescan Fail!  www.aleratec.com...

  • Page 26: Disc Info

    ENT button again, and use the arrow keys to display information on the sessions. Session 01 Track 01 - 09  Press the ENT button again, and use the arrow keys to display information on the tracks. Track 01 AUDIO 03:54  www.aleratec.com...
  • Page 27 Using the DVD/CD Duplicator Main Menu Select Source (Not supported) Image (Not supported) www.aleratec.com...

  • Page 28: Edit Track

    Go to “Setup” and then “Burning Speed” to change copy speed before selecting tracks. This function includes 4 subfunctions. These are: 10.1 CD to CD Edit 10.2 (Not supported) 10. Edit Track  10.3 Play Audio Track 10.4 Close Session www.aleratec.com...
  • Page 29 ENT and scroll to “Select Track” to select the track you want to copy. Press the ENT button to select the track, a “+” will appear by the track selected. Pressing the ENT button again will cancel the selection. Select Track: 1/10 03:25  Select Track: +1/10 03:25  www.aleratec.com...
  • Page 30 YES or NO selection. To continue, select YES to select tracks from the next disc. Repeat steps 1 - 7. If YES is selected, the source disc will be ejected. Insert another audio disc to be edited. Continue edit next Disc? Yes  www.aleratec.com...
  • Page 31 Closing Session Please wait - - -  Note: You will NOT be able to use the new audio CD until you close the session. When the session is closed, this message will be displayed. Closing Complete OK:03 Fail:0  www.aleratec.com...
  • Page 32 Load the CD you want to play in that drive and press the ENT button to play music. Press ESC to index to the next setting. 10-03 Edit Track Play Audio Track  Select Track 1/10 04:25  Playing Track-1 00:00 / 03:35  www.aleratec.com...

  • Page 33: Close Session

    LCD display will show the process of closing the session: “Closing Session Please Wait —”. Close Session Please Wait---  When the session is closed, this message will show the passed and failed discs. Close Complete OK:03 Fail:0  www.aleratec.com...

  • Page 34: Setup

    11.09 Auto Prescan* 11. Setup � 11.10 Eject Disc* 11.11 Burn On The Fly* 11.12 Burn Mode* 11.13 Display Time 11.14 Button Sound* 11.15 Device Info (Not supported) 11.16 System Info 11.17 Quick Erase Disc 11.18 Full Erase Disc www.aleratec.com...
  • Page 35 Lowering the writing speed will increase the probability of making successful copies. ENT button to change the setting, or ESC to exit. Press the 11-02. Setup CD Burn Speed  Use the arrow buttons to select the desired speed, then press the button. CD Burn Speed Auto  www.aleratec.com...
  • Page 36 This function sets the reading speed of the source DVD/CD-ROM. Press the ENT button to change the setting, or ESC to exit. 11-04. Setup Read Speed  Use the arrow buttons to select the desired reading speed, then press the ENT button. Read Speed Maximum  www.aleratec.com...

  • Page 37: Auto Start Drive

    This function selects the menu item that will be the first item shown on the display when you turn on the duplicator. The default setting is “Copy”. Use the arrow buttons to select the desired item (1 - 11), then press the ENT button. 11-06. Setup Startup Menu  Startup Menu 1.Copy  www.aleratec.com...

  • Page 38: Auto Verify

    Auto Verify  11.08 Auto Compare This setting controls auto compare of data between source and target discs after copying. Default setting is OFF; press the ENT button to change, or ESC to exit. 11-08. Setup Auto Compare  Auto Compare  www.aleratec.com...

  • Page 39: Auto Prescan

    This setting controls auto prescan of the master to verify that it can be read properly, and also tests the reading speed. OFF; press the ENT button to change, or ESC to exit. Default setting is 11-09. Setup Auto Prescan  11-09. Setup Auto Prescan Auto Prescan   www.aleratec.com...

  • Page 40: Eject Disc

    If you select “Do Not Eject”, the disc will remain in the DVD/CD- Recorder when the job is done and you will have to eject the disc from the DVD/CD-Recorder manually. Press the ENT button to change the setting, or ESC to exit. Eject Disc Do Not Eject  www.aleratec.com...

  • Page 41: Burn Mode

    This setting controls the writing modes of the disc, including “Disc At Once” (DAO) or “Track At Once” (TAO). Default setting is “DAO”. Press the ENT button to change, or ESC to exit. 11-12. Setup Burn Mode  Burn Mode  www.aleratec.com...

  • Page 42: Button Sound

    Default setting is 11-13. Setup Display Time  Display Time  11.14 Button Sound This setting controls the button sound. ON; press the ENT button to change, or ESC to exit. Default setting is 11-14. Setup Button Sound  Button Sound  www.aleratec.com...
  • Page 43 Using the DVD/CD Duplicator 11.15 Device Info (Not supported) 11.16 System Info This function will show the system information on the display. Press the ENT button to see the system information, or ESC to exit. 11-16. Setup System Info  System Info  www.aleratec.com...
  • Page 44 ESC to go back. 11-17. Setup Quick Erase Disc  All data will be lost, erase? Yes  Erasing disc 00:24 (Quick)  When the process is finished the display will show the status. Quick Erase OK:01 Fail:00  www.aleratec.com...

  • Page 45: Full Erase

    ESC to go back. 11-18. Setup Full Erase  All data will be lost, erase? Yes  Erasing Disc 00:24 (Full)  When the process is finished the display will show the status. Full Erase OK:01 Fail:00  www.aleratec.com...

  • Page 46: Advanced Setup

    12.06 Burn-in 12.07 Update Firmware 12. Adv Setup � 12.08 Compare Firmware 12.09 Hardware Diagnostic 12.10 Load Default 12.11 CD+G Format (Not supported) 12.12 ISRC 12.13 CD-Text (Not supported) 12.14 USB Option 12.15 USB Auto-Link 12.16 Use Big Block www.aleratec.com...

  • Page 47: Underrun Protect

    Audio CD (e.g. 75 minutes of recording time vs. 74 minutes). You can activate the overburn function of the DVD/CD-Recorder through this setting. Default setting is OFF; press the ENT button to change, or ESC to exit. 12-02. Adv Setup Overburn  Overburn  www.aleratec.com...
  • Page 48 ON, there will be no message shown even if there is an error in reading. You can use this function to copy some DVD/CDs with errors. ress the ENT button to change, or ESC to exit. 12-03. Adv Setup Read Error Skip  Read Error Skip  12.04 (Not supported) 12.05 (Not supported) www.aleratec.com...
  • Page 49 Press the ENT button to start the test, or ESC to go back to manual operation. 12-06. Adv Setup Burn-in  Burn-in Test  Set Burn-in num: Run Continuous  Select “Erase&Copy” to test erasing and rewriting to DVD/CD-RW discs only. Burn-in Erase&Copy  www.aleratec.com...

  • Page 50: Update Firmware

    Searching F/W--- XXX/XXXXX  Procedure to make the Firmware disc: Get the latest firmware download from the Aleratec website at www.aleratec.com. Note: Be careful to download the correct firmware; if incorrect firmware is used the duplicator will not function Unzip the firmware and write the file “cdxxx.bin” to a blank DVD/ CD-R or DVD/CD-RW disc.

  • Page 51: Compare Firmware

    The display will prompt you first for the button test. Follow the instructions on the display to test each button.  Enter ESC Hold ESC to Exit  After the button function test, the system will self test and then display Test Finished. Test Finished  www.aleratec.com...
  • Page 52 OFF; press the ENT button to change, or ESC to exit. Default setting is 12-12. Adv Setup ISRC & MCN  ISRC & MCN  www.aleratec.com...
  • Page 53 When you are finished with USB Mode, simply disconnect the USB cable from the computer, and the Duplicator will switch to Stand Alone. 12-14. Adv Setup USB Option  USB L. H Mode D1: Mult D2: Mult  www.aleratec.com...
  • Page 54 Now you are back in computer connect USB mode. From here, you can return to the Auto Link mode. Make sure the USB cable is connecting the Duplicator to your computer, and switch the Duplicator’s power switch to OFF and then back to ON. www.aleratec.com...
  • Page 55 Duplicator will switch to Stand Alone. 12.16 Use Big Block Press ENT and use the UP and DOWN arrows to toggle between ON and OFF.When ON, Big Block enables the use 128-byte blocks for more efficient high speed (12x, 16x, 20x) DVD burning. www.aleratec.com...

  • Page 56: Using The Duplicator As A Dvd/Cd-Recorder

    VD-Recorder. Installation consists of connecting the Duplicator to your computer, and installing the software on your computer. Connect the Duplicator to your computer. ▪ Connect the USB 2.0 Data Cable to the Duplicator. Align and gently attach the USB 2.0 Data Cable. USB 2.0 Connector Power Connector www.aleratec.com...
  • Page 57 Note: This step is not needed if you are not running Windows 98SE. Go to Adv Setup step 13 and switch to USB Mode. Your computer should recognize the DVD/CD-Recorder in the 1:2 DVD/CD Copy Cruiser Pro HLX Win/Mac. Install the software from the included CD. www.aleratec.com...

  • Page 58: Specifications

    Power Requirements • 115-230 VAC Auto Switching Dimensions • 17cm x 17.8cm x 28.9cm (height x width x depth) • (6 5/8” x 7”x 11 3/8”) Weight • 4.6 kg (10.1 lbs) Warranty • Limited 1 Year Parts and Labor www.aleratec.com...

  • Page 59: Troubleshooting

    CD Burn Speed and/or DVD Burn Speed option in the Setup menu. • A firmware update may be available to improve media compatibility; please contact Aleratec Technical Support for assistance. Source Disc Empty (the • Verify that the disc you wish to copy contains the source disc does not appropriate data.
  • Page 60 A CD cannot be copied onto a DVD, or vice versa. Use the Disc Info function to determine the format of the source disc. Copier F/W Fail, Please • Contact your support administrator or Aleratec Update F/W (the firmware Technical Support. has become corrupt and must be reinstalled)
  • Page 61 10 seconds, and then powering on again. when powered on. • Check that the power cord is fastened securely to the duplicator, and to the electrical outlet. • Test the electrical outlet with another appliance. www.aleratec.com...

  • Page 62: Technical Support

    Technical Support After reading this User Guide, if you need additional assistance with this product, please contact Aleratec Technical Support. Our technical staff will be happy to assist you, but they may need your help to better assist you. Calling Aleratec Technical Support without all the necessary information can be both time consuming and frustrating.

  • Page 63: Service And Support

    If the product fails during normal and proper use within the warranty period, Aleratec, Inc. will, at its option, repair or replace the product at no cost (except shipping and insurance). This limited warranty does not...
  • Page 64 (even if Aleratec, Inc. has been advised of the possibility of such damages).
  • Page 65 Duplicator, to prepay shipping charges, and to use the original shipping container or equivalent. Any service outside the scope of this limited warranty shall be at Aleratec, Inc.’s or its Authorized Service Provider’s rates and terms then in effect. This warranty gives you specific legal rights; you may also have other rights which vary from state to state.

  • Page 66: Technical Support Fax Back Form

    _____________________________________________________________ _____________________________________________________________ By answering these questions, your problem will be solved more rapidly. Make copies as necessary. You can reach us electronically at: www.aleratec. com on the internet. NOTE: Please store and track the included software, registration codes and parts carefully. Requests for replacement software, registration codes, and/ or parts may incur a fee.
  • Page 67 Notes: www.aleratec.com...
  • Page 68 Document Number: 9399067_ENG_Rev. A Copyright © 2010 Specifications subject to change without notice. Aleratec, Inc. 9851 Owensmouth Avenue Chatsworth, CA 91311 U.S.A. www.aleratec.com...
