QUICK START GUIDE

Aleratec

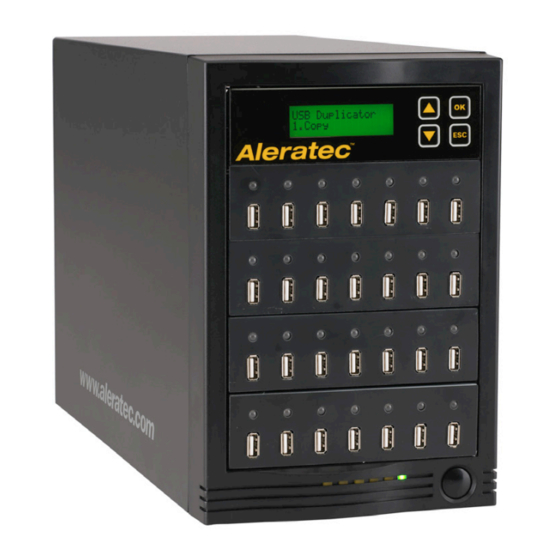

1:27 USB Copy Tower SA™
Part No. 330106

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1:27 USB Copy Tower SA and is the answer not in the manual?

Questions and answers

Related Manuals for Aleratec 1:27 USB Copy Tower SA

Summary of Contents for Aleratec 1:27 USB Copy Tower SA

  • Page 1: Quick Start Guide

    ® QUICK START GUIDE Aleratec 1:27 USB Copy Tower SA™ Part No. 330106...

  • Page 2: Included Items

    This Quick Start Guide will lead you step-by step through the basic operation procedures of your 1:27 USB Copy Tower SA. We at Aleratec appreciate your selection of our product, and wish you great success and enjoyment of your new 1:27 USB Copy Tower SA. Included Items •...

  • Page 3: Product Features

    Product Features Thank you for purchasing the 1:27 USB Copy Tower SA. Please read this User Guide thoroughly before using this product. The 1:27 USB Copy Tower SA is a USB Duplicator. • Stand Alone, no computer required. • Copy, Compare, or Erase up to 27 drives simultaneously.
  • Page 4 UP arrow is used to scroll backward through functions or menus DOWN arrow is used to scroll forward through functions or menus Note: When the unit is powered on, the 1:27 USB Copy Tower SA will preform a self-test sequence.
  • Page 5 Precautions Before installing you 1:27 USB Copy Tower SA, please read the following. Installation Avoid placing the 1:27 USB Copy Tower SA in a location subject to: • High humidity • High temperature • Excessive dust • Mechanical vibration •...

  • Page 6: Main Menu

    Overview Main Menu This section provides a listing of the functions of the 1:27 USB Copy Tower SA. Detailed descriptions of each function are given in the next section. The functions are numbered for easy reference; these numbers are also used in the next section.
  • Page 7 5.2 System Info The main menu “Utility” function has 6 subfunctions. These are: 6.1 Format FAT 16/32 6.2 Measure Speed 6.3 Media Check USB Duplicator 6. Utility  6.4 Quick Erase USB 6.5 Full Erase USB 6.6 System Update www.aleratec.com...
  • Page 8 The main menu “Setup” function has 8 subfunctions. These are: 7.1 Start-up Menu 7.2 Copy Area 7.3 Button Beep 7.4 Asyn Hold Time USB Duplicator 7. Setup  7.5 Ignore Size 7.6 Asynchronous Enable/Disable 7.7 Language 7.8 Working Mode Normal/Turbo www.aleratec.com...

  • Page 9: Using The Usb Duplicator

    Using the USB Duplicator Synchronous and Asynchronous The 1:27 USB Copy Tower SA supports two copying methods: • Synchronous Copying • Asynchronous Synchronous Copying Synchronous Copying means that all flash drives begin copying together. Synchronous Copying is used when the source data is larger than the system buffer (120MB).
  • Page 10 The number to the right is the size occupied by files or images. Load the blank target flash drives into the USB Duplicator. The LCD will display the number of blank media loaded and ready for copying. USB(963M) 450M 3 ready  www.aleratec.com...
  • Page 11 This process is repeated until the copying job is complete. Load the source flash drive into the USB Duplicator. Use the UP or DOWN arrow to scroll through the menu until Copy is displayed on the LCD screen. USB Duplicator 1. Copy  www.aleratec.com...
  • Page 12 If the Copy fails, the LCD will display the number of flash drives that failed and passed. Pass: 5 Working Fail: 0  Note: During Asynchronous Copying you can use the UP and DOWN arrow keys to check each flash drives copying status. www.aleratec.com...

  • Page 13: Technical Support Addresses And Phone Numbers

    Technical Support Addresses and Phone Numbers ► By e-mail: support@aleratec.com ► By Telephone: 1-818-678-0484 – Skype: support.aleratec.com Technical Support Group can be reached 8:00 AM to 5:00 PM, Pacific Time, Monday through Friday, excluding U.S. holidays. Please try to call from a phone near your computer system.
  • Page 14 Notes: www.aleratec.com...
  • Page 15 Notes: www.aleratec.com...
  • Page 16 Document Number: 9299061_ENG_Rev. B Copyright © 2013 Specifications subject to change without notice. Aleratec, Inc. 9851 Owensmouth Avenue Chatsworth, CA 91311 U.S.A. www.aleratec.com...
