Using the 1:11 HDD Copy Cruiser IDE/SATA

Loading and Unloading Hard Drives

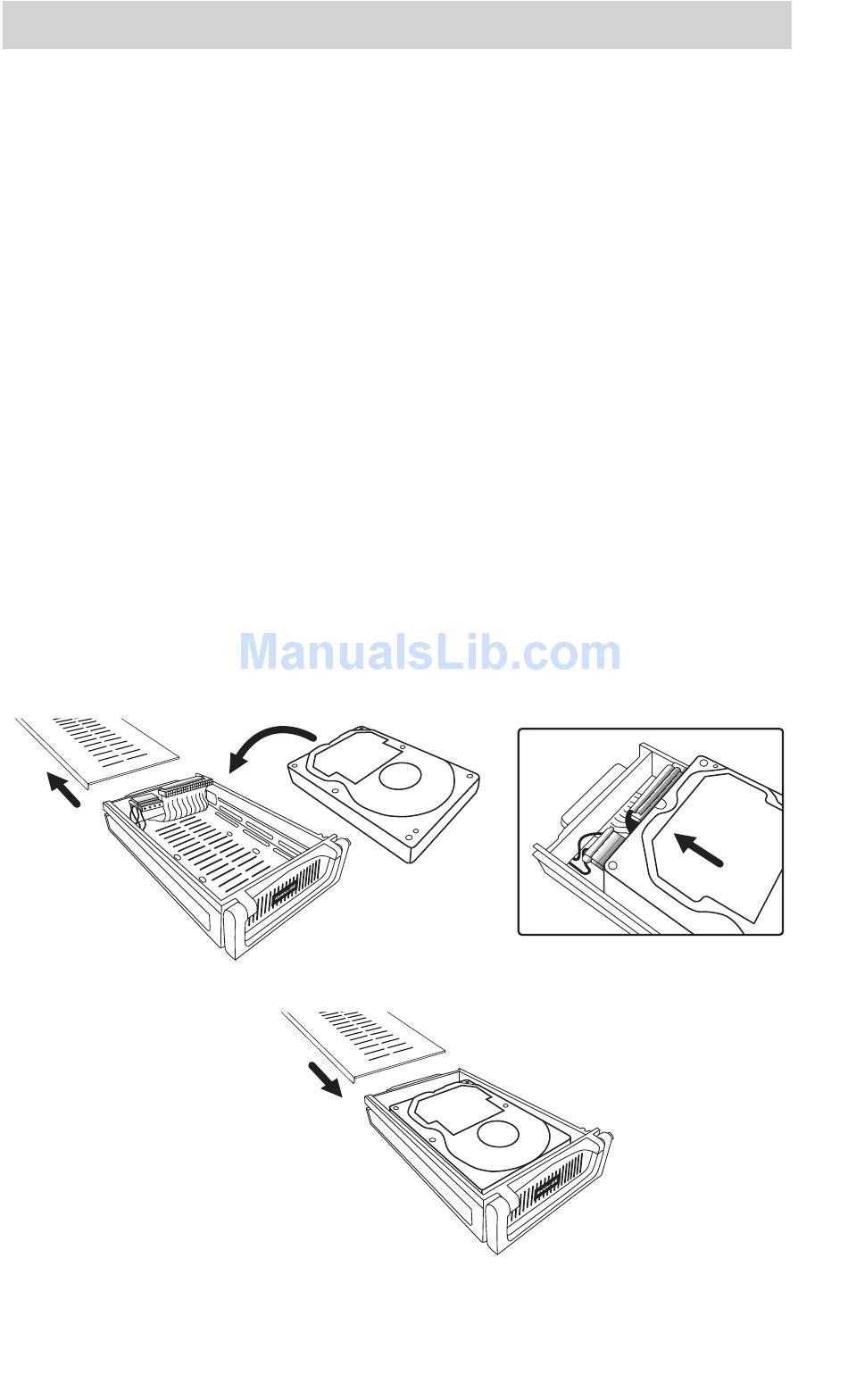

A. Loading IDE Hard Drives
1. Remove the top cover of an included IDE HDD Tray by sliding it toward the
rear of the tray.
2. Connect the tray's Molex power connector to your IDE hard drive's power port.
3. Connect the tray's IDE (PATA) data connector to your IDE hard drive's data
(PATA) port.
4. Carefully fold the PATA ribbon cable underneath the hard drive and place the
hard drive into the tray.
5. Press down gently until the hard drive is fully within the tray.
6. Slide the top cover back onto the tray until it snaps into place.
7. Unlock the HDD Bay.
8. Insert the tray into the HDD Bay and push in firmly until the tray is flush.
9. Lock the HDD Bay.
1.
10
3.
