QUICK START GUIDE

Aleratec
1:7 DVD/CD Tower Publisher SLS™
Part No. 260173

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1:7 DVD/CD Tower Publisher SL and is the answer not in the manual?

Questions and answers

Related Manuals for Aleratec 1:7 DVD/CD Tower Publisher SL

Summary of Contents for Aleratec 1:7 DVD/CD Tower Publisher SL

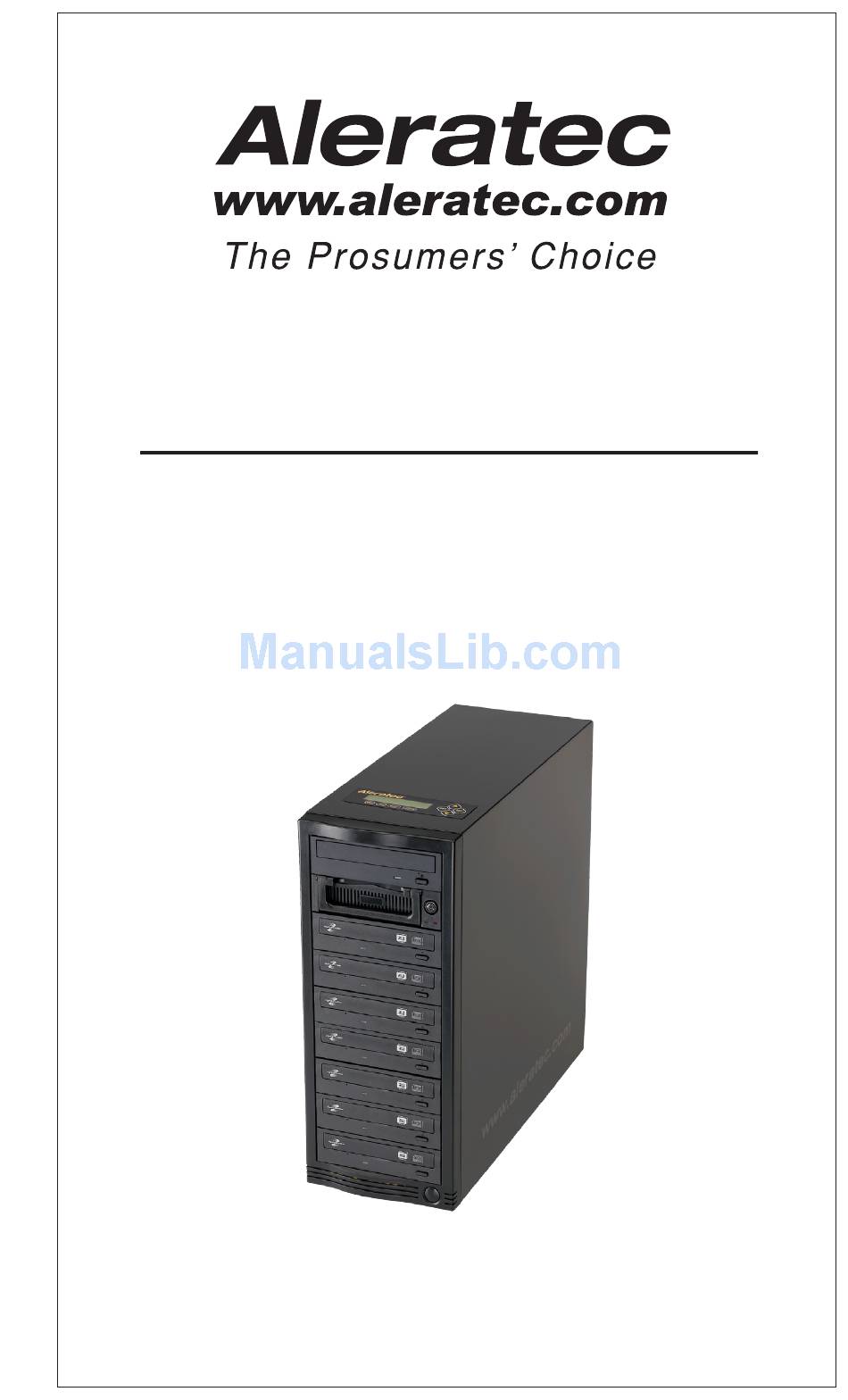

  • Page 1: Quick Start Guide

    ® QUICK START GUIDE Aleratec 1:7 DVD/CD Tower Publisher SLS™ Part No. 260173...
  • Page 2 DVD/CD Tower Publisher SLS, please refer to the “Help” tab in the software included on the Installation CD. We at Aleratec appreciate your selection of our product, and wish you great success and enjoyment of your new 1:7 DVD/CD Tower Publisher SLS.

  • Page 3: Product Features

    • Removable Hard Disk Drive to store disc images and label files. • Aleratec only USB fast key instantly connects Hard Drive to a PC. • DVD-ROM drive for fast on the fly copies. • Laser burns disc labels.
  • Page 4 2. Do not place near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock. 3. Good care will help assure maximum product life. Improper operating environment and misuse may void the warranty. www.aleratec.com...

  • Page 5: Lcd Front Panel

    SOURCE button will allow you to change the source drive that the duplicator uses for loading master discs. The default for this option is DVD-ROM drive. UP arrow is used to scroll up through functions or menus. DOWN arrow is used to scroll down through functions or menus. www.aleratec.com...
  • Page 6 Note: The HDD will not work unless it is secured in position with the carriage lever and locked with the key. Do not unlock the HDD during operation, as you will destroy any copies you are making. www.aleratec.com...

  • Page 7: Unpacking The Unit

    USB 1.1, as this will greatly affect system performance. If windows displays a message that a fast USB device is detected on a slow USB port, then you will need to upgrade your computer by adding a USB 2.0 port. www.aleratec.com...

  • Page 8: Lightscribe Software Installation

    LightScribe Software Installation Minimum System Requirements: PC running Windows 2000, XP, or Vista Install the Aleratec File System Manager. First write down the key code labeled “Product Key” on the front of the disc and then put the disc into your PC.
  • Page 9 USB mode is enabled. Note: While in USB mode, the duplicator cannot access the hard drive only the PC can. Also, if you restart the duplicator it will remain in whatever state it was prior to turning off the unit. www.aleratec.com...
  • Page 10 If you open the drive location you will see three or four folders. The “dup” folder is where “.iso” files can be put in for disc burning. The “label” folder is where “.lsi” files created by the LightScribe Template Labeler program will be placed. www.aleratec.com...

  • Page 11: Using The Lightscribe Labeling Software

    Click the shortcut on your desktop, or go to: Start → All Programs→ LightScribe Direct Disc Labeling → LightScribe Template Labeler. Note: Ignore the “LightScribe Disc Insertion” shown below by pressing the OK button. Select a Template. You must choose a template before moving to the next step. www.aleratec.com...
  • Page 12 Select the “Best” contrast mode for the darkest print. ▪ Select the label surface color you wish to label onto. Note: The “LightScribe Duplicator Label Writer” must be selected in the drive menu. ▪ When you are satisfied with the preview, click “Print”. www.aleratec.com...
  • Page 13 LABEL folder or in a subfolder will not be recognized as a label. Create a name for the file and click the “Save” button. The image writing process will begin. When the image process has completed the file should now be located on the “Duplicator” drive in the label folder. www.aleratec.com...
  • Page 14 “Go”. Press the ENT button and the printing process will begin. 10. When the disc printing is complete the drives will automatically eject. If you are printing additional discs, reload the trays and close them manually to continue. www.aleratec.com...

  • Page 15: Making Disc-To-Disc Copies

    DOWN navigation button to search for it. Press ENT to submit your selection. Go back to the “COPY” menu. Use UP or DOWN arrow button to navigate to the following screen: DUPLICATOR 1.00 1. COPY  COPY TEST PRINT SOURCE www.aleratec.com...
  • Page 16 To specify a number less than 4 digits, fill the leading spaces with “0”s (any leading “0” will be skipped). For example, “0234” will give you two hundred and thirty four copies, and “0010” will give you ten copies. www.aleratec.com...
  • Page 17 Now, “0021” is displayed, press ENT once and the cursor moved to OK. ix. Then, press ENT once to submit your counter value. Now you shall see the following screen: Preparing... Waiting for Master  COPY TEST PRINT SOURCE Preparing... Waiting for Blanks  COPY TEST PRINT SOURCE www.aleratec.com...
  • Page 18 ENT to confirm. You will see the following display: Processing... Please Wait  COPY TEST PRINT SOURCE Note: Give the duplicator 10-15 seconds to recognize all the blank discs. If the number of blank discs you inserted doesn’t match the number of discs detected... www.aleratec.com...
  • Page 19 Waiting for Blanks  COPY TEST PRINT SOURCE “PASS 7” indicates that you’ve just made 7 successful copies. “FAIL 0” indicates that you have no failure in this run. “7” indicates that you’ve successfully copied 7 copies so far. www.aleratec.com...
  • Page 20 You can continue to copy or you can eject the extras discs. Note: Failed discs will not be ejected automatically. You will need to manually eject these. www.aleratec.com...

  • Page 21: Recommended Media

    Recommended Media Certified LightScribe media is required for burning direct-to disc LightScribe labels. For best results, Aleratec Duplicator Grade LightScribe media is recommended. CD-R LightScribe V1.2 Duplicator Grade Media 100 Pack™ Part No. 110116 CD-R LightScribe V1.2 Duplicator Grade Media 600 Pack™...

  • Page 22: Technical Support Addresses And Phone Numbers

    Pacific Time, Monday through Friday, excluding U.S. holidays. Please try to call from a phone near your computer system. ► Access is available 24 hours a day, 365 days a year, via: The World Wide Web at: www.aleratec.com FAX at: 1-818-678-0483 www.aleratec.com...
  • Page 23 www.aleratec.com...
  • Page 24 ® Document Number: 9299053_ENG_Rev. J Copyright © 2013 Specifications subject to change without notice. Aleratec, Inc. 9851 Owensmouth Avenue Chatsworth, CA 91311 U.S.A. www.aleratec.com...
