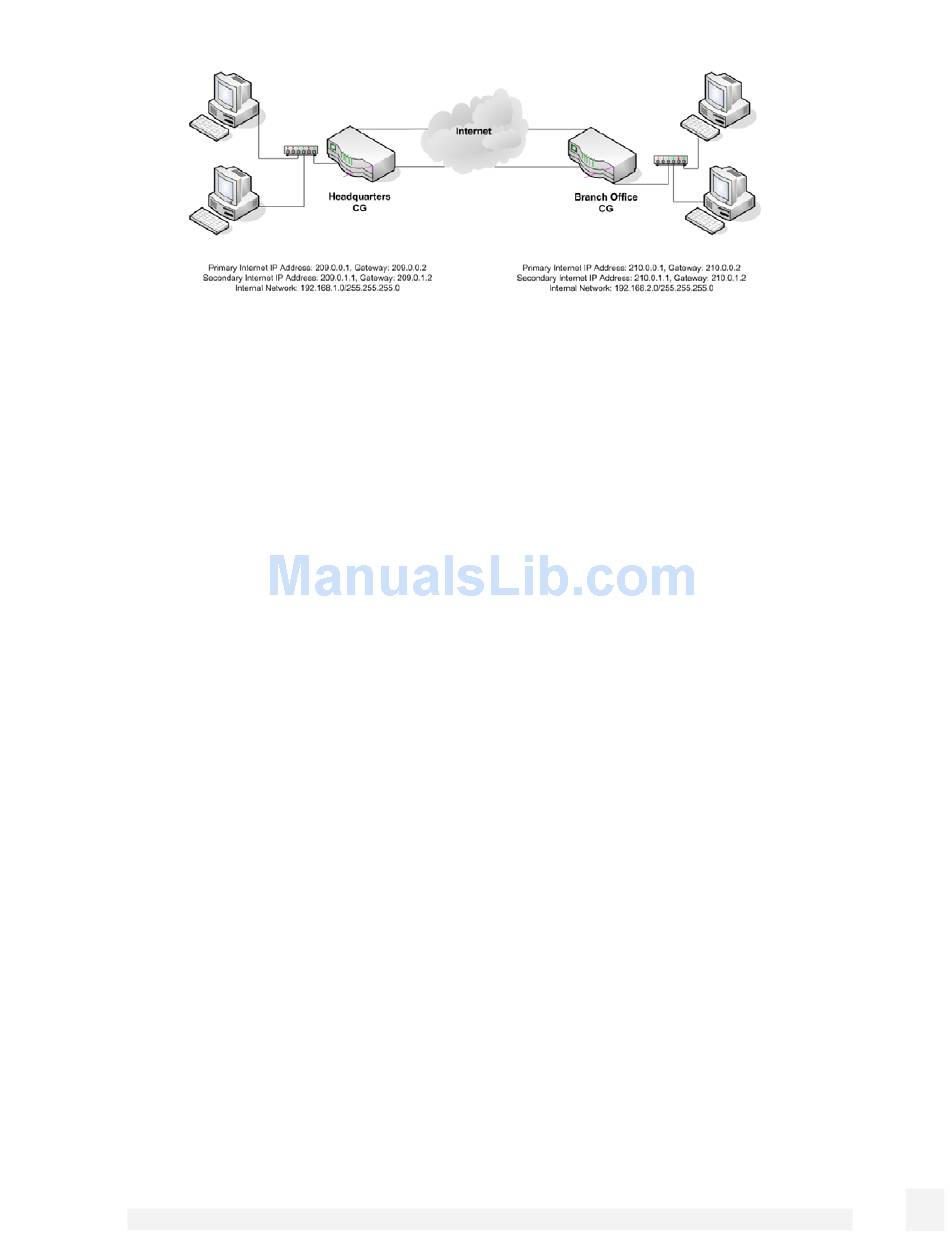

Setup an IPSec tunnel between the primary Internet IP Addresses (209.0.0.1 <>
210.0.0.1). Default values are used in the configuration unless otherwise specified below:
Headquarters SG configuration:
Tunnel name: PrimaryLink
Local interface: Internet port
Route to remote endpoint: Internet port's gateway
The remote party's IP address: 210.0.0.1
Local network: Address of Internet port
Remote network: Remote endpoint
Branch Office SG configuration:
Tunnel name: PrimaryLink
Local interface: Internet port
Route to remote endpoint: Internet port's gateway
The remote party's IP address: 209.0.0.1
Local network: Address of Internet port
Remote network: Remote endpoint
Setup an IPSec tunnel between the secondary Internet IP Addresses (209.0.1.1 <>
210.0.1.1). Default values are used in the configuration unless otherwise specified
below:
Headquarters SG configuration:
Tunnel name: SecondaryLink
Enable this tunnel: Checked
