Network Port

The unit's back panel contains a 9-30VDC power plug and an RJ45 (10/100)
Ethernet port.

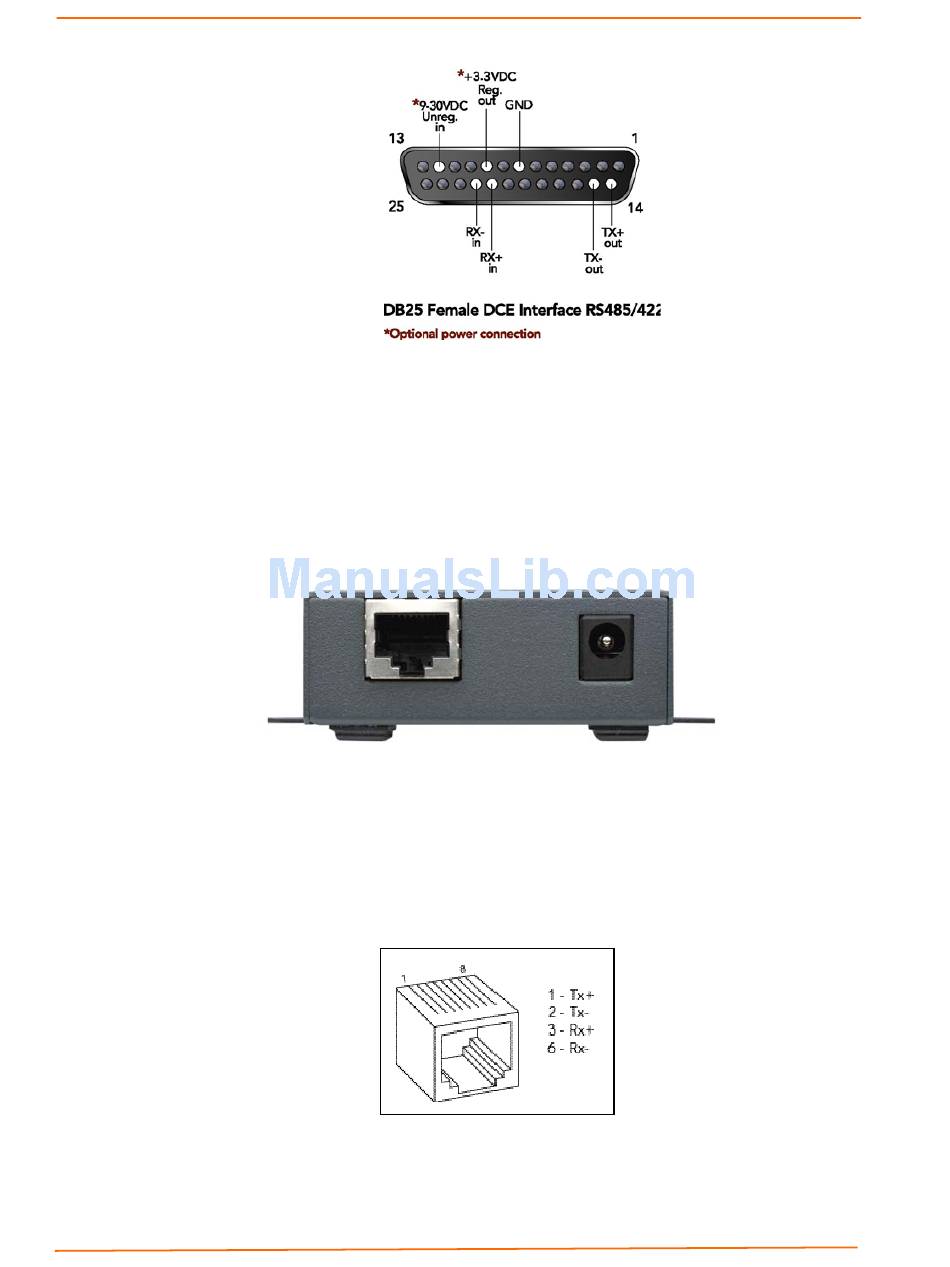

Figure 1-3. Network Interface

Ethernet Connector Pinouts

The unit supports 10 Mbps Ethernet through an RJ45 connector.
Figure 1-4. RJ45 Ethernet Connector
