Intellian Satellite TV Antenna Systems

Installing the ACU

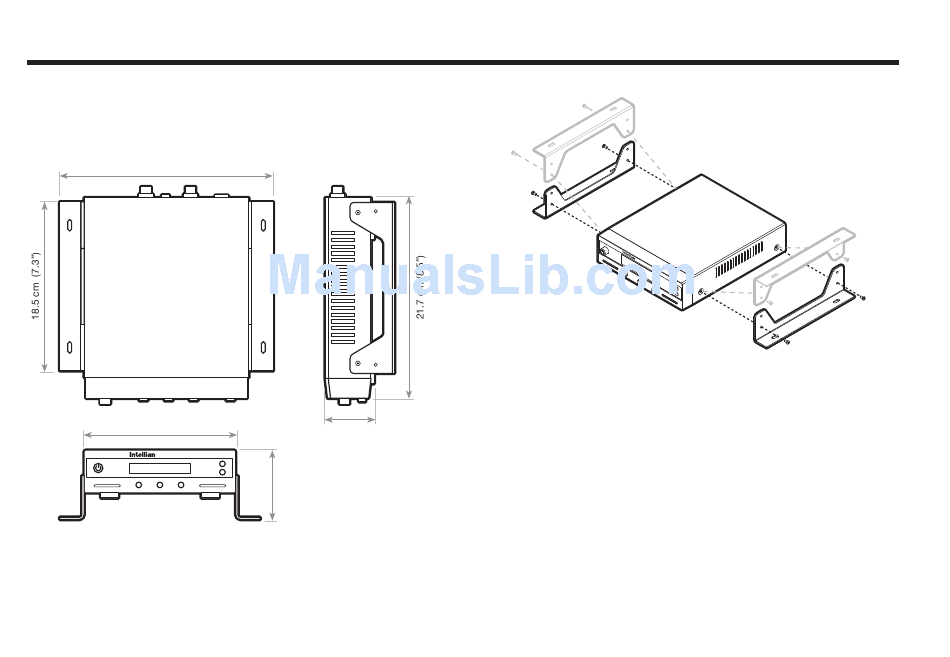

ACU Dimensions

22.8 cm (9")
17.8 cm (7")
Figure 12 : Dimension of ACU for i9P
16
5.4 cm (2.1")
5.5 cm (2.2")
Figure 13 : Installation of ACU
Selection of ACU Installation Site
The ACU should be installed below deck, in a location that is:
• Dry, cool, and ventilated.
• Easy accessible from your main TV viewing area.
Installing the ACU
• The ACU should be installed using the two supplied Table Mounting
Brackets which allow for a top or bottom mounting configuration.
• Using the self tapping screws supplied, attach the mounting
brackets to the sides of the ACU.
• Place the ACU in the location where it is going to be installed.
• Using a pencil to mark the 4 hole positions (2 each side), and use
the appropriate drill bit to drill them.
• Connect the cables to the rear of the ACU.
