Preparation for Transportation

The following procedures to secure the antenna shall be strictly observed to protect it from being
damaged during transportation.
1. Refer to the drawing on the right.
2. Rotate antenna left and right slowly until the limit switch is pressed.
Don't rotate it quickly, or you may damage the antenna limit system.
3. Turn the antenna by 360° to the reverse direction.
4. Insert a restraint foam in backside of the dish to secure the
pedestal in position with the bottom radome.
5. Insert the cable ties to tight up the azimuth axis and the elevation
axis.
6. Cover upper part of radome. Be careful not to touch the reflector
when assembling upper part of radome.
7. Pack Intellian i9P into the original package box.
58
Cable Tie
Shipping Foam

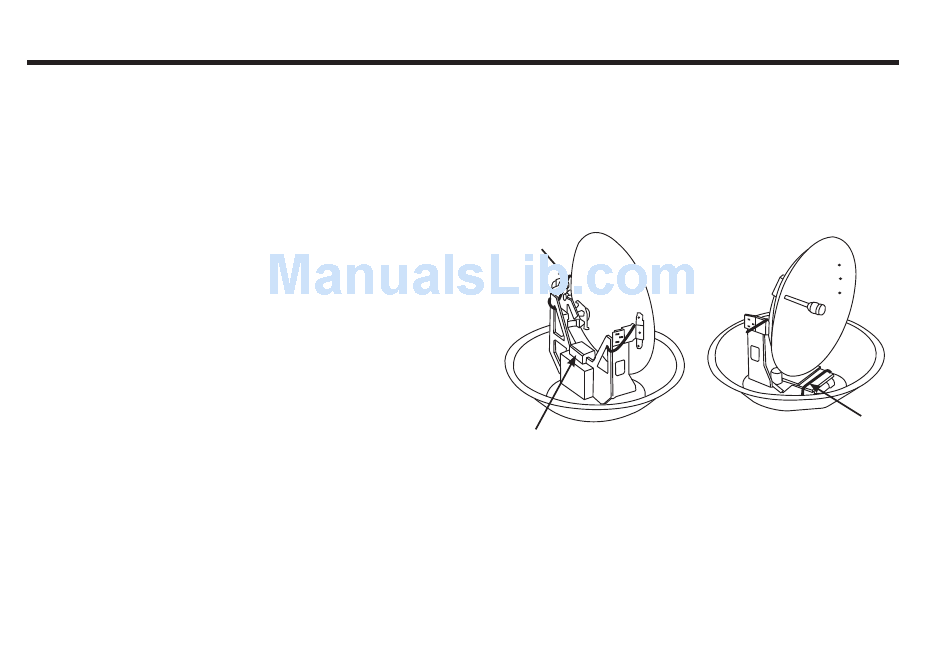

Figure 31 : Preparation for Transportation
Cable Tie
