Move Antenna and Execute Antenna Diagnostics

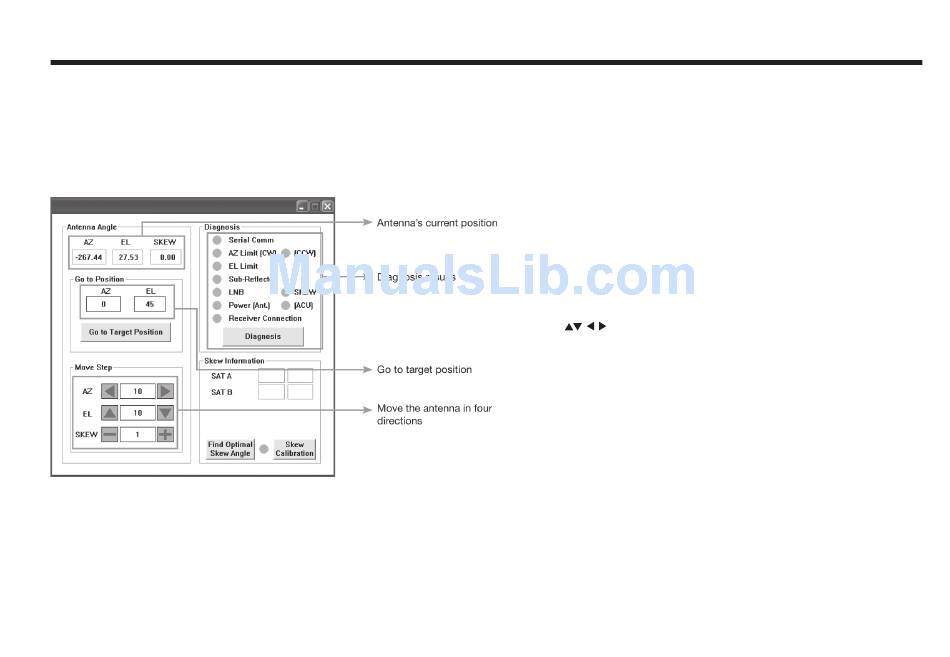

Figure 28 : Antenna Diagnosis
• Angle of Antenna
Two kinds of antenna movement is available. One is to move by the
target position and the other is to move by certain amount of angle. The
current position (angle) of the antenna is displayed as "Current" and to
move to the target position, push "Go to target Position" button after
keying in desired angle into "Target". To move to a certain amount of
angle only, move antenna to direction of up or down, and CW or CCW by
using buttons after keying in the desired angle into the AZ and
EL in the "Move Step" box. Rotate LNB to direct the skew angle by using
+ – button.
• Self-Diagnosis
If the "Diagnosis" button is pressed, it displays the results of the self-
diagnosis after the test is completed. The blue circle means the antenna
is normal; red represents abnormal and green represents the antenna is
under diagnosis.
Command Buttons
• Go to Target Position – To move the antenna to the present position.
• Diagnosis – To diagnose the antenna (BLUE – Passed, RED – Failed,
GREEN – Under diagnosis)
