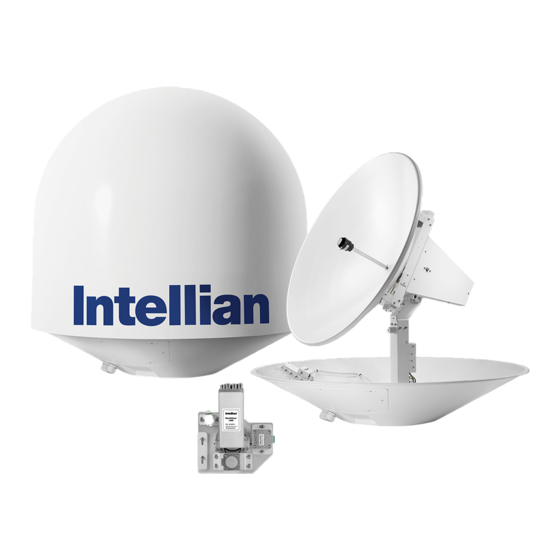

t110W/t130W
Installation and Operation Manual
Marine Satellite Television Antenna System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the t110W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Intellian t110W

Summary of Contents for Intellian t110W

  • Page 1 Installation and Operation Manual Marine Satellite Television Antenna System...
  • Page 3 © 2016 Intellian Technologies Inc. All rights reserved. Intellian and the Intellian logo are trademarks of Intellian Technologies, Inc., registered in the U.S. and other countries. t110W, t130W and w-Series are trademarks of Intellian Technologies, Inc. Intellian may have patents, patent applications, trademarks, copyrights, or other intellectual property rights covering subject matter in this document.
  • Page 4 INDEX...

  • Page 5: Table Of Contents

    INDEX INTRODUCTION Intellian t110W/t130W Introduction Intellian t110W/t130W Features Basic System Configuration INSTALLING THE ANTENNA System Package Planning the Installation Antenna Installation INSTALLING THE ACU Mounting the ACU Connecting the System's Cables PC to ACU Communication Setup Wi-Fi Connection OPERATING THE ACU...
  • Page 6 – Marine Satellite Television System CERTIFICATIONS...
  • Page 8 – Marine Satellite Television System...

  • Page 9: Introduction

    INTRODUCTION INTRODUCTION Intellian t110W/t130W Introduction Intellian t110W/t130W Features Basic System Configuration...

  • Page 10: Intellian T110W/T130W Introduction

    – Marine Satellite Television System Intellian t110W/t130W Introduction The Intellian t110W/t130W is the world’s first and only marine satellite TV antenna capable of operating in all global markets without the need of changing the LNB unit inside of the antenna's dome each time the vessel crosses into a different satellite service region.

  • Page 11: Intellian T110W/T130W Features

    ACU and monitor, control and change the settings of the system wirelessly. An Intellian App is available for download to access to the ACU via Wi-Fi and operate the antenna from iPhone, iPad or other network devices.

  • Page 12: Basic System Configuration

    – Marine Satellite Television System Basic System Configuration For your satellite TV system to work properly, the system will have to be connected with all of the provided components properly, as shown in the figure below (see the “Installation” section of this manual). Separate purchase of a satellite receiver and a TV is required.

  • Page 13: Installing The Antenna

    INTRODUCTION INSTALLING THE ANTENNA System Package Antenna Unit ACU (Antenna Control Unit) Installation Kit Planning the Installation Selection of Antenna Installation Site System Cables Power Requirement Tools Required for Installation Antenna Installation Unpacking the Wooden Crate Remove Antenna Shipping Restraints Antenna Dimensions Antenna Mounting Templates Preparing Antenna Supporting Pole...

  • Page 14: System Package

    – Marine Satellite Television System System Package The Intellian t110W/t130W consists of two major units, an antenna assembly unit and the antenna control unit. Antenna Unit The antenna unit includes an antenna pedestal inside a radome assem- bly unit. The pedestal consists of the satellite antenna main dish and...
  • Page 15 INSTALLING THE ANTENNA Antenna Control Unit (ACU) The Antenna Control Unit (ACU) provides power to the antenna and controls various settings of the antenna. Additionally, VFD (Vacuum Fluorescent Display) allows for you to operate the ACU in the dark. Front panel Rear panel...
  • Page 16 – Marine Satellite Television System The functions of the ACU are as follows : • System startup • Change of target satellite • Monitoring current status • Setting antenna manual search • Setting antenna set skew • Setting antenna search parameter •...
  • Page 17 INSTALLING THE ANTENNA Installation Kit Contains the items required for securing the antenna unit and ACU to your vessel. Q’ty Description Size Remark Self-Tapping Table Mount 4 x 16 Screw Bracket Rack Mount Flat Head Screw M4 x 12L Bracket ACU Table Mount Sems Bolt M3 x 12L...
  • Page 18 – Marine Satellite Television System Item Image Q’ty Description Size Remark USB Cable 1.8m ACU to PC (A-A) Rubber Gland Antenna Cables Hex Socket M6 x 40L Radome (Top-Bottom) Head Cap Radome Spring Washer (Top-Bottom) Radome Flat Washer (Top-Bottom)

  • Page 19: Planning The Installation

    INSTALLING THE ANTENNA Planning the Installation Selection of Antenna Installation Site Install the antenna in accordance with the following procedures to ensure maximum performance of the antenna. The ideal antenna site should have a clear view of the horizon or satellite all around it. Please be sure there are no obstacles within 15º...
  • Page 20 RF Cables (Customer Supplied) Due to signal losses across the length of the RF coax on L-Band, Intellian recommends the following 75 ohm coax cable types for standard system installations. For cables that run longer than 100 meters, please consult Intellian Technologies.
  • Page 21 INSTALLING THE ANTENNA • NMEA 0183 Connector Signal NMEA 0183 - NMEA 0183 + • GPS Connector ACU GPS In/Out Port D-Sub 9 pin Female Signal GPS OUT + GPS IN + • NMEA 2000 Connector Pins Sockets Connector Threads Connector Threads Male Connector Female Connector...
  • Page 22 – Marine Satellite Television System Tools Required for Installation 11 mm Spanner Power Drill 13 mm Spanner Cross Head Screwdriver 19 mm Spanner Flat Head Screwdriver 13 mm Drill Bit 5 mm Allen/Hex key...

  • Page 23: Antenna Installation

    INSTALLING THE ANTENNA Antenna Installation When uncrating the wooden crate, follow the procedures below. 1. Locate one of the side panels designed for fork lift. Detach this side panel by removing the fixing screw (1EA) and clips (8EA). 2. Remove the fixing screws (4EA) and clips (6EA) on the top panel. Detach the top panel by carefully pulling it as shown in the picture below.
  • Page 24 Intellian strongly recommends to restrain the antenna pedestal properly while underway when power is removed from the antenna. The normal operating condition for the t110W/t130W is to remain powered up at all times.
  • Page 25 INSTALLING THE ANTENNA Antenna Dimensions The method of installation and mounting of the antenna may vary with vessel design but the following procedures are applicable in most situations, and will result in a secure and effective installation. Confirm the height and diameter of the antenna before installing it.
  • Page 26 – Marine Satellite Television System Preparing Antenna Supporting Pole Mounting Plate Min. 1 cm (0.4”) Max. 3 cm (15”) Support Pedestal Appr. Ø25.4 cm (10”) WARNING: Ensure that cables have been run through watertight fittings to prevent water entry into the vessel when installation is completed.
  • Page 27 INSTALLING THE ANTENNA Mounting the Radome Bolt the radome base directly to the support pedestal. Makesure to use the Intel- lian supplied bolts from the accessory box when you mount the radome.
  • Page 28 – Marine Satellite Television System Installing the System Cables The coax cables must be inserted through the cable strain relief(s) at the base of the radome. The cables must be routed from the antenna through the deck and through various ship spaces to the antenna control unit. When pulling the cables in place, avoid sharp bends, kinking, and the use of excessive force.
  • Page 29 When all the hardware and cables have been installed, turn on the power switch. Use an RG11 rubber gland if you’re using an RF11 cable instead of an RG6 cable supplied by Intellian.
  • Page 30 – Marine Satellite Television System...

  • Page 31: Installing The Acu

    INSTALLING THE ACU Mounting the ACU 19” Rack Mount Type Table Mount Type ACU Dimensions Selection of ACU Installation Site Connecting the System's Cables Up to 4 Receivers Connection Multi-Switch Connection Gyrocompass Connection Recommended Cable Connecting the System without a Ship's Gyrocompass PC to ACU Communication Setup TCP/IP Connection Serial/USB Connection...

  • Page 32: Mounting The Acu

    – Marine Satellite Television System Mounting the ACU Intellian supplies two types of mounting methods (a)19” Rack Mount Type and (b) Table Mount Type to mount your ACU. Figure 01. 19" Rack Mount Type 19” Rack Mount Type •...

  • Page 33: Acu Dimensions

    INSTALLING THE ACU ACU Dimensions 47.5 cm (18.7") 45.5 cm (17.9") 43.1 cm (17") 4.4 cm (1.7") 46.6 cm (18.4") 48.5 cm (19.1") Figure 03. Dimension of ACU Selection of ACU Installation Site The ACU should be installed below deck, in a location that is: •...

  • Page 34: Connecting The System's Cables

    Receiver 4 RF3 (Optional) RF4 (Optional) Figure 04. t110W / t130W System Diagram • Connect the RF cable from the ACU's RF1 connector on the power switch box located inside of the radome to the ANT. RF1 connector on the rear of the ACU.
  • Page 35 INSTALLING THE ACU Multi-Switch Connection When you use the multi-switch in single LNB mode, you need to connect RF1 and RF2 to the low-band (Horizontal Low and Vertical Low) outputs of the 4x8 multi- switch and disable DisEqC function while connecting to a receiver other than a European receiver.
  • Page 36 – Marine Satellite Television System Gyrocompass Connection For optimum satellite tracking, you must connect a Gyrocompass to the antenna system through the gyrocompass interface on the rear of the ACU. If the ship’s gy- rocompass output is other than NMEA 0183 and NMEA 2000 a separate purchase of an NMEA converter is required.
  • Page 37 Connecting the System without a Ship’s Gyrocompass For a vessel where the ship’s gyrocompass is not installed or is difficult to be connected, the Intellian Gyro-Free satellite search function will be automatically enabled to allow the antenna to lock onto the desired satellite without requiring an external heading input.

  • Page 38: Pc To Acu Communication Setup

    1. Connect an Ethernet cable from a PC Ethernet port to the Management port Ethernet Port on the front of the ACU. 2. Network connection is established. 3. Use the following IP address to access Intellian Aptus or Aptus Web page. ® • 192.168.2.1 (Default) Connection through Rear Panel Ethernet Port This method requires separate IP configuration on a PC.
  • Page 39 1. Connect a USB cable from a USB port on your PC to the USB port on the ACU. Note: The t110W and t130W also support Wi-Fi connection between a PC and the ACU.

  • Page 40: Wi-Fi Connection

    – Marine Satellite Television System Wi-Fi Connection Setup Wi-Fi Connection • Setting up the ACU in order to access Wi-Fi • Setting up the PC (AP Mode) in order to access Wi-Fi • Remote Aptus Web Confirmation Setting up the ACU in order to access Wi-Fi 1.
  • Page 41 INSTALLING THE ACU Setting up the PC in order to access Wi-Fi 1. Setting up my computer’s wireless IP address - Control Panel> Network and Sharing Center > Change Adapter Settings > Right click on the “Bluetooth Wireless Connection”> Click Properties After selecting TCP/IPv4, click on the properties menu, then select "Obtain an IP address automatically."...
  • Page 42 – Marine Satellite Television System 3. Connect Wi-Fi in AP mode. After clicking on the Windows Wireless Connection icon, click on intellian-TVRO (Default) 4. Enter the Network Security Key. Key: intellian1234 (Default) 5. You can confirm the logo and version data by accessing http://192.168.1.223 Aptus Web v X.XX...

  • Page 43: Operating The Acu

    INSTALLING THE ACU OPERATING THE ACU OPERATING THE ACU Introduction Normal Mode System Startup Change of Target Satellite Monitoring Current Status Setup Mode Installation Settings Installation Antenna Settings Setting Antenna Manual Search Setup Antenna POL. Angle Setting Antenna Search Parameter Setting Antenna Parameters Executing Antenna Diagnosis Satellite Settings...

  • Page 44: Introduction

    – Marine Satellite Television System Introduction This section of the handbook describes how to set up your Satellite TV System after Installing the ACU or GUI PC controller program and includes the following functions: Normal Mode • System startup •...
  • Page 45 Intellian strongly recommends to restrain the antenna pedestal properly while underway when power is removed from the antenna. The normal operating condition for the t110W / t130W is to remain powered up at all times.

  • Page 46: Normal Mode

    – Marine Satellite Television System Normal Mode Startup With the system installed and power applied, the ACU screen will show the following sequence. I N T E L L I A N T E C H N O L O G I E S I N C .
  • Page 47 OPERATING THE ACU Change of Target Satellite Your antenna is programmed with three selected target satellites as default. To change the target satellite, press the LEFT soft key. The target satellite is changed and is automatically tracked by the antenna. T R A C K I N G [ 4 ] A S T R A _ 1 [ 2 ] H O T _ S P O T 1.
  • Page 48 – Marine Satellite Television System Monitoring Current Status While POWER ON the Intellian t110W / t130W ACU displays the status of the antenna. Various ACU displays may be shown according to the current status of the antenna. [ 4 ] A S T R A _ 1...
  • Page 49 OPERATING THE ACU D V B _ D F : 1 1 5 0 9 S : 2 2 0 0 0 X 0 0 0 1 A G C : 3 0 1 4 . 5 3 E 5 2 . 2 2 N H D G : 0 0 0 .

  • Page 50: Setup Mode

    – Marine Satellite Television System Setup Mode To enter Setup Mode simply follow the instructions below: • T R A C K I N G 1 9 . 2 E A S T R A _ 1 A G C : 3 0 1 A Z : 1 6 0 .

  • Page 51: Intallation Settings

    OPERATING THE ACU Installation Settings Installation S E T U P M O D E ? Y E S 1. Press the LEFT arrow key to move cursor to YES and press the OK key to enter setup mode. + A N T E N N A + S A T E L L I T E + S Y S T E M + I N S T A L L A T I O N...
  • Page 52 – Marine Satellite Television System L A T I T U D E L O N G I T U D E 5 2 . 3 3 N 4 . 5 3 E 7. Set the current LONGITUDE. Press the LEFT and RIGHT arrow keys until the desired character is underscored (selected).
  • Page 53 OPERATING THE ACU L O A D I N G . . . D O N O T T U R N O F F ! 10. Setting is being loaded to the system. The ACU will restart the system automatically after uploading the setting. DO NOT turn off ACU power while uploading is being processed.

  • Page 54: Antenna Settings

    – Marine Satellite Television System Antenna Settings Setting Antenna Manual Search S E T U P M O D E ? 4 Y E S 1. Press the LEFT arrow key to move cursor to YES and press the OK key to enter SETUP mode.
  • Page 55 OPERATING THE ACU Setting POL. Angle S E T U P M O D E ? 4 Y E S 1. Press the LEFT key to move cursor to YES and press the OK key to enter setup mode. 4 + A N T E N N A + S A T E L L I T E + S Y S T E M + I N S T A L L A T I O N...
  • Page 56 – Marine Satellite Television System Setting Antenna Search Parameter S E T U P M O D E ? 4 Y E S 1.Press LEFT arrow key to move cursor to YES and press OK key to enter SETUP mode.
  • Page 57 OPERATING THE ACU A search pattern 1 or 3 will be initiated according to which GYRO TYPE is selected and the existence of the gyro input. Search 1: a search pattern 1 will automatically be initiated when the ship’s heading input does not exist / is failed .The antenna will go to the relative azimuth position 0°at the calculated elevation and search in the azimuth CW and CCW direction in a turn rotation and search up + 0.5°...
  • Page 58 – Marine Satellite Television System Search 3: a search pattern 3 will automatically be initiated when AGC falls below the current tracking level threshold value. If the desired signal is found and above the predefined tracking level, the ACU will terminate Search 3 and go into TRACKING mode.
  • Page 59 OPERATING THE ACU Setting Antenna Parameters S E T U P M O D E ? 4 Y E S 1. Press the LEFT key to move cursor to YES and press the OK key to enter setup mode. 4 + A N T E N N A + S A T E L L I T E + S Y S T E M + I N S T A L L A T I O N...
  • Page 60 – Marine Satellite Television System Peak Level Tracking Level Detect Level Noise Level D E T E C T L E V E L T R A C K I N G L E V E L 0 6 0 0 3 0 6.
  • Page 61 OPERATING THE ACU V O L T T H R E S . S C A N O F F S E T 0 6 5 0 9. Set the VOLT THRES. The voltage threshold is to distinguish the voltage between 13 V and 18V. Press the LEFT and RIGHT arrow keys until the desired character is underscored (selected).
  • Page 62 – Marine Satellite Television System U S E O F F S E T O F F S E T D I F F . Y E S - 0 4 0 13. Set the USE OFFSET. USE OFFSET is to determine whether the system uses OFFSET DIFF or not.
  • Page 63 OPERATING THE ACU Executing Antenna Diagnosis S E T U P M O D E ? 4 Y E S 1. Press the LEFT key to move cursor to YES and press the OK key to enter setup mode. 4 + A N T E N N A + S A T E L L I T E + S Y S T E M + I N S T A L L A T I O N...
  • Page 64 – Marine Satellite Television System Diagnosis Code : CODE 101 : The data communication between the antenna and the ACU is tested. CODE 102 : The azimuth motor is tested. CODE 103 : The elevation motor is tested. CODE 104 : The cross-level motor is tested.

  • Page 65: Satellite Settings

    OPERATING THE ACU Satellite Settings Setting the Satellite Pair S E T U P M O D E ? 4 Y E S 1. Press the LEFT arrow key to move cursor to YES and press the OK key to enter setup mode.
  • Page 66 – Marine Satellite Television System Edit Satellite Information S E T U P M O D E ? 4 Y E S 1. Press the LEFT arrow key to move cursor to YES and press the OK key to enter setup mode.
  • Page 67 OPERATING THE ACU L O N G I T U D E E D I T N A M E 1 9 . 2 0 E A S T R A _ 1 7. Set the SATELLITE NAME. Press the LEFT and RIGHT arrow keys until the desired character is underscored(selected). Press the UP and DOWN arrow keys to increase or decrease the value.
  • Page 68 – Marine Satellite Television System L O C A L F R E Q . 1 0 6 0 0 12. Set LOCAL FREQ. Press the UP and DOWN arrow keys to select the LNB local frequency from the installed LNB.
  • Page 69 OPERATING THE ACU 1) Verification Method AGC – use signal level for satellite tracking. DVB LOCK – use DVB Lock for satellite tracking. DVB DECODE – use DVB Decode for satellite tracking. DSS DECODE – use DSS Decode for satellite tracking. 2) Voltage Supply Method AUTO- supply 13V or 18V to LNB.
  • Page 70 – Marine Satellite Television System Setting the Region S E T U P M O D E ? 4 Y E S 1. Press the LEFT arrow key to move cursor to YES and press the OK key to enter SETUP mode.
  • Page 71 OPERATING THE ACU L O A D ? 4 Y E S 7. Press the BACK key to load the current setting or abort and return to the main display. L O A D I N G . . . D O N O T T U R N O F F ! 8.
  • Page 72 – Marine Satellite Television System Finding Transponders S E T U P M O D E ? 4 Y E S 1. Press the LEFT arrow key to move cursor to YES and press the OK key to enter setup mode.
  • Page 73 OPERATING THE ACU [ C H E C K N I D ] F : 1 1 5 0 9 S : 2 2 0 0 0 0 x 0 0 01 P R E S S O K R E C E I V E D N I D [ 0 x 0 0 0 1 ] 7.

  • Page 74: System Settings

    – Marine Satellite Television System System Settings Setting Location S E T U P M O D E ? 4 Y E S 1. Press the LEFT arrow key to move cursor to YES and press the OK key to enter setup mode.
  • Page 75 OPERATING THE ACU GYRO TYPE* NO DEVICE NMEA NMEA2000 GROUND TEST 4 L A T I T U D E L O N G I T U D E 5 2 . 2 2 N 4 . 5 3 E 5.
  • Page 76 – Marine Satellite Television System System Management S E T U P M O D E ? 4 Y E S 1. Press the LEFT arrow key to move cursor to YES and press the OK key to enter setup mode.
  • Page 77 OPERATING THE ACU SELECT PROCESS TYPE* BACKUP USER DATA: To backup the antenna settings set by user to the ACU. RESTORE USER DATA: To restore the antenna by using the backup user data stored from the ACU. DEFAULT ACU-REMOTE P/W: to default ID and Password of the Web Server. UPGRADE FROM USB: to upgrade the system by using the firmware files from a specified folder in the USB flash drive.
  • Page 78 – Marine Satellite Television System Key Lock S E T U P M O D E ? 4 Y E S 1. Press the LEFT arrow key to move cursor to YES and press the OK key to enter setup mode.

  • Page 79: Aptus

    ANTENNA CONTROL OPERATING THE ACU SOFTWARE Introduction to Aptus ® Requirements Software Installation PC to ACU Communication Setup Starting Aptus ® Establishing a data communication AutoUpdate Toolbar Menus System Property Status Dashboard Work View Tabs Antenna - Basic Info. Antenna - Advanced Info. Satellite (Satellite View) Graph View Monitor...

  • Page 80: Introduction To Aptus

    – Marine Satellite Television System Introduction to Aptus ® Intellian’s Antenna PC Controller Software, Aptus is a next-generation graphically ® based antenna remote control software. The Aptus allows users to easily and ® conveniently set up the antenna by using a personal computer.

  • Page 81: Software Installation

    ® computer/ laptop. The InstallShield Wizard will guide you through the program setup process. The installation routine provides an icon on the desktop. Click the icon to start the software. In addition, Intellian also provides patch files for software upgrade.

  • Page 82: Pc To Acu Communication Setup

    – Marine Satellite Television System PC to ACU Communication Setup Starting Aptus ® Double-click the Aptus desktop icon, then Communication Window appears ® to establish the data communication between your PC and the ACU. Select options of connection method to access your ACU either through the Serial Port...
  • Page 83 Serial connection between a PC and the USB port on the ACU.) Select Serial at communication type combo-box. The baud rate of the ACU is 57600 for the t110W / t130W. Select a COM port which is not occupied by other devices.
  • Page 84 – Marine Satellite Television System AutoUpdate Intellian Aptus ® checks and notifies the latest version when it is started to maintain up to date software version by AutoUpdate function. ® 1. When Aptus is started, it automatically checks the latest software version from the server and runs AutoUpdate if new version is available.

  • Page 85: Toolbar Menus

    Aptus ® Toolbar Menus The toolbar menus at the top of the screen display command buttons of the most commonly used functions of the Aptus . The toolbar menus consists of 6 main ® menus; Quick (for quick launch of functions), File (for file backup, restoring and loading), View(for user layout and work view), Connection(for communication), Utill (for firmware uploading and spectrum view) and Help(for reporting problems and information check) .
  • Page 86 – Marine Satellite Television System Load Config. : loads the antenna configuration file (file format: *.cfg). The configuration file includes the antenna control parameters which are pre-loaded at the factory and should only be changed by an authorized service technician.
  • Page 87 • Spectrum: displays current spectrum graph and allows to set spectrum data view options. Help • Report: provides e-mail contact to Intellian technical support team to let the user report problems at any time. • Information: displays the information of current Aptus ®...

  • Page 88: System Property Status Dashboard

    – Marine Satellite Television System System Property Status Dashboard The property status dashboard on the left pane of the screen provides the antenna status, signal level, GPS and heading status, software information, product information and error status to be monitored quickly.
  • Page 89 Aptus ® - Search 3: Search 3 pattern will automatically be initiated when AGC falls below the current tracking level threshold value. Once the desired signal is found and above the predefined tracking threshold, the ACU will enter to tracking mode. - Tracking: Antenna is tracking the target satellite.

  • Page 90: Work View Tabs

    – Marine Satellite Television System Work View Tabs Aptus provides seven Work View Tabs (Satellite View, Antenna Basic View, ® Antenna Advanced View, Monitor View, Graph View, ACU System View, and Satellite View) to manage the Antenna and the Satellite configuration.
  • Page 91 Aptus ® - GPS: displays and sets current antenna’s GPS. - Heading: displays and sets current ship’s heading information. · Heading Device: None / NMEA/ NMEA 2000/Ground Test. The baud rate (4800/ 9600/ 19200/ 38400) must be set if NMEA is selected. - Bow Information: displays and sets current antenna’s bow.
  • Page 92 – Marine Satellite Television System 2. Antenna – Advanced Info. This view provides information on the Tilt Sensor Bias, Rate Sensor, Conical Range, Parameter Setting, Threshold Setting, Search Parameter and Flag Setting. -Tilt Sensor Bias: This maintains the elevation and the cross level axes in order to keep the pedestal parallel to the horizon.
  • Page 93 Aptus ® · Step 4. Press the “Restart” icon to restart the antenna. - Rate Sensor: is used to calibrate the DC voltage output from the three rate sen- sors (azimuth, elevation, and cross-level). These are used to sense antenna motion that corresponds to the ship’s motion (roll, pitch, and yaw) for stabilizing the ped- estal.
  • Page 94 – Marine Satellite Television System - Threshold Setting: set the threshold level for detecting and tracking the satellite signal. · DVB Detect Level: displays and sets signal detection threshold level when DVB tracking mode is in use. · DVB Tracking Level: displays and sets signal tracking threshold level when DVB tracking mode is in use.
  • Page 95 - LNB Local Frequency: Displays or sets LNB local frequency and its corre- sponding LNB voltage supplied. You may select pre-programmed LNB LO settings from the drop down list. This procedure is same for both the Intellian Global VSAT PLL LNB and any other LNB.
  • Page 96 – Marine Satellite Television System - Pol & Band Control: The “Pol” controls 13V (Vertical/RHCP band) or 18V (Horizontal/ LHCP band). The “Band” controls DiSEqC 0KHz tone (Low band) and 22KHz tone (High band). After modifying information, press ‘Edit Satellite Informa- tion’...
  • Page 97 Aptus ® 4. Graph View This view provides information on Signal, Elevation (EL), Absolute AZ (Azimuth), Relative AZ, Heading, AZ and EL in Single or Multi graph formats. - Select Graph Item: shows the graphs of only the checked item(s) in a Single or Multi Graph View.
  • Page 98 – Marine Satellite Television System - Set Pos.: sets the current position as center value of each Graph Item. - Current Pos.: moves to the location according to values of each Graph Item. - Span: sets the Display Range(s) of each corresponding Graph Item.
  • Page 99 Aptus ® - Rate Sensor Bias: is used to calibrate the DC voltage output from the three rate sensors (azimuth, elevation, and cross-level). These are used to sense antenna motion that corresponds to the ship’s motion ( roll, pitch, and yaw) for stabilizing the pedestal. Push the "Check" button to check the EL and CL Tilt Bias.
  • Page 100 – Marine Satellite Television System 6. ACU System This view provides Antenna Diagnostic Testing. - Diagnostic : select to run a full diagnostic test or single diagnostic test. "Green" indicator is displayed for the test under progress. "Blue" indicates the test result as Pass while "Red" indicates the result as Fail.
  • Page 101 Aptus ® • Antenna power: tests the antenna power to see whether or not it is within the nominal operating range. • ACU power: tests the ACU power to see whether or not it is within the nominal operating range. •...
  • Page 102 – Marine Satellite Television System 7. Work View Functions The seven Work View Tabs displayed in the Work View can be arranged in cus- tomized layouts. - Layout Formatting · Each of the Work View Tab can be separated from the rest Tabs.
  • Page 103 Aptus ® Move the selected Work View Tab to the left position of the Work View layout. Move the selected Work View Tab to the center position of the Work View layout.
  • Page 104 – Marine Satellite Television System - Horizontal or Vertical Tab Group The Work View Tabs can be also aligned horizontally or vertically. Without dragging them out, right-click the mouse button on a desired Tab header and select ‘New Horizontal Tab Group’ or ‘New Vertical Tab Group’...
  • Page 105 Aptus ® View Name Button: displays the current Work View name. Close View Button: closes the current view.
  • Page 106 – Marine Satellite Television System...

  • Page 107: Aptus Web

    Ship setting Antenna Position & Parameters Tracking setting Diagnostic Firmware & Configuration Antenna Firmware Upgrade Antenna Log Antenna Backup & Restore Administration Network Setting SNMP Setting User Management iARM Upgrade iARM Save & Reboot Antenna Event Log Intellian Network Devices...

  • Page 108: Introduction

    – Marine Satellite Television System Introduction With embedded Aptus Web, the t110W / t130W can be monitored, controlled, and diagnosed remotely from anywhere, anytime through the TCP/IP protocol. This not only can save time but also save the cost generated from routine maintenance activities such as operating firmware upgrades, tracking parameters resets, and system diagnostic.

  • Page 109: Main

    2. Log into the ACU by typing in User Name and Password information. If this system has not been changed from the factory default: • User Name: intellian • Password: 12345678 WARNING: The Control & Monitoring Mode will be switched to the Monitoring Only Mode in the following cases;...
  • Page 110 – Marine Satellite Television System Top Menus Once you log in, the following information and menus are displayed. Item Description Signal Level Display current signal level. - Setup: Displays whether or not the antenna is in SETUP mode. The indicator shows “Blue” in the SETUP mode.
  • Page 111 APTUS WEB Dash Board & Information On the left side of the page, Dash Board and Information menus are displayed as below to provide quick monitoring of the antenna status and settings. Other menus are displayed only in the Control & Monitoring mode and their functions will be described in the next sections.
  • Page 112 – Marine Satellite Television System BOW Offset Display current bow offset Triple Satellite Mode: Select between Dual-Sat mode and Triple Sat mode. Mode Satellite Displays the satellite name, longitude, polarity and LNB local Information frequency of the current satellite.

  • Page 113: Antenna Settings

    APTUS WEB Antenna Settings Ship Setting Item Description Ship Setting Set the ship information and find antenna angle. Set GPS information. - Longitude (East/West) - Latitude (North/South) Bow Offset Set Bow Offset if needed. Set ship’s heading device (NONE, NMEA, NMEA2000, Heading Device Ground Test) and ship’s heading information Find the current antenna angles and skew angle in relation to...
  • Page 114 – Marine Satellite Television System Antenna Position & Parameters Item Description Set current antenna position and Search and Track- ing parameters. These parameters should only be Antenna Setting changed by an authorized service technician. Im- proper setting of these parameters will render your system inoperable.
  • Page 115 APTUS WEB Adjust the elevation to offset the angle difference between Elevation Adjust the mechanical elevation angle and actual elevation angle. Release the elevation and cross level motor brakes while Idle Mode the antenna is in SETUP mode. The antenna can be moved manually during the mode.
  • Page 116 – Marine Satellite Television System - Initial Sat Count: Set the threshold count for maintaining tracking. - WRS Detect Level: Set the WRS detection level. - Voltage Threshold: Set the voltage threshold. The voltage threshold is to distinguish the voltage between 13 V and 18V.
  • Page 117 APTUS WEB Tracking Setting Item Description Display or set current tracking satellite and tracking Tracking Setting information. Tracking Satellite Select the tracking satellite. Register the selected satellite in Tracking Satel- lite for Sat A, Sat B or Sat C. To select between Triple Satellite Mode Dual-Sat mode and Triple-Sat mode, press the 'Dual Satellite Mode' button or 'Triple Satellite Mode' but-...
  • Page 118 – Marine Satellite Television System Diagnostic Item Description Diagnostic Execute antenna diagnostic test. Select to run a full diagnostic test or single diagnostic test. - Serial Comm.: test the data communication between the antenna and the ACU. - Motor AZ: test the azimuth motor.

  • Page 119: Firmware & Configuration

    APTUS WEB Firmware & Configuration Antenna Firmware Upgrade Item Description Antenna Firmware Upgrade antenna and ACU firmware version. Upgrade New Antenna Browse and select the firmware package file to upload and Firmware click Start Upload button. Current Running Display current firmware version (Antenna STABILIZER, Version Antenna PCU, ACU main, Library) Display Previous/Latest Package version and rollback...
  • Page 120 – Marine Satellite Television System Firmware upgrade status page 5. It'll display information about the upgrade process status on full screen. Upgrade process status page 6. If the firmware is successfully upgraded, it'll display "The firmware update is completed."...
  • Page 121 APTUS WEB Upgrade complete page NOTE: To roll back to the previous firmware package version or latest package version, select Rollback Upgrade menu on the Antenna Firmware Upgrade page.
  • Page 122 – Marine Satellite Television System Antenna Log Item Description Antenna Log Displays antenna log data GPS Log Option Disable/Enable to save GPS information in the antenna log file. Antenna Log Download the log file. Select start download button to proceed.
  • Page 123 GPS information to third parties. Any issues regarding safety and privacy when turning on the GPS function is solely up to the user. Intellian is not responsible for information that is disclosed when the GPS function is enabled.
  • Page 124 – Marine Satellite Television System Antenna Backup & Restore Item Description Enter Backup & Restore page. (Setup mode is Antenna Backup & Restore required) Backup antenna information to ACU/PC or Target restore antenna by using the saved information from ACU/PC.

  • Page 125: Administration

    APTUS WEB Administration WARNING: Ensure to enter the SETUP mode before starting configuration. After completing the modification of settings, enter Save & Reboot page and click on “Save & Reboot” button. Without doing so, the modified settings will be lost. Item Description Networking Setting...
  • Page 126 • Server IP : Management server IP address. Sys Log Configuration • UDP Port : Management port. • Message Type : Select message type(Intellian message level) to send management server (The lower level is more emergency). • Syslog Target Level : If you select this target level, the...
  • Page 127 APTUS WEB Set the refresh rate and the refresh disable time. • Refresh Rate : Set the browser refresh rate (Default 1 seconds. Range 1~99). Browser Configuration • Refresh Disable Time : Set the browser idle timeout(Default:9 minutes. Range 0~9). If you tick the checkbox, you can use this function.
  • Page 128 – Marine Satellite Television System SNMP Setting No. Item Description SNMP Setting Display and Set SNMP configuration. Set SNMP mode(Use Attribution Disable, Read Only SNMP V1/V2 Status or Read Write). V1/V2 Community Name Set SNMP V2 community name. V3 Authentication Type Set SNMP V3 authentication mode.
  • Page 129 APTUS WEB User Management Item Description User Change login ID and Password to access the Web M&C. This set- Management ting can be also accessed by ‘Account’ icon on the top menu. Change your login ID (username) and password. • Change ID : Enter your current login ID (username) and new Change login ID.
  • Page 130 – Marine Satellite Television System iARM Upgrade Item Description iARM Upgrade Upgrade the firmware of iARM module. New iARM Select a new firmware file and click Start Update button to Firmware upgrade the firmware. Bootstrap Displays current bootstrap and bootloader version.
  • Page 131 APTUS WEB Firmware upload in progress 4. Do not turn off the ACU power if the firmware upgrade page is displayed. Firmware upgrade in progress 5. It’ll take around 2 minutes to complete the firmware upgrade. Once the upgrade is completed, the system will reboot automatically. 6.
  • Page 132 – Marine Satellite Television System iARM Save & Reboot Item Description iARM Save settings to the ACU and reboot or reboot the system Save & Reboot without saving. Save the modified settings and reboot the system. Save & Reboot Click Save &...
  • Page 133 APTUS WEB Antenna Event Log Item Description Antenna Displays user's log information (Data/Time, Login ID and IP) Event Log Set the Log message option. • Severity : Set urgency level. • Category : Set target that caused the message. Query Filter •...
  • Page 134 • Eth1 IP Configuration : ACU network Eth1 IP and subnet Configuration mask setting. • Intellian Network Port Status : not used on t-series. Add Intellian network devices, then you can browse the various information of the device. Add Network Device •...

  • Page 135: T110W Technical Specification

    Technical Specification t110W Technical Specification General Approvals CE – conforms to EU Directive 89/336/EEC FCC – verified to CFR47:Part 15 Dimensions Satellite antenna unit 133cm (52.4”) x 142cm(55.9”) Antenna dish diameter 105cm (41.3”) Antenna control unit 44.1cm x 38cm x 4.4cm (17" x 15" x 1.7")

  • Page 136: T130W Technical Specification

    – Marine Satellite Television System t130W Technical Specification General Approvals CE – conforms to EU Directive 89/336/EEC FCC – verified to CFR47:Part 15 Dimensions Satellite antenna unit 165.2cm x 168.4cm(65" x 66.2") Antenna dish diameter 125cm(49.2”) Antenna control unit 43.1cm x 38cm x 4.4cm (17"...

  • Page 137: Warranty

    Warranty This product is warranted by Intellian Technologies Inc., to be free from defects in materials and workmanship for a period of Three (3) YEARS on parts and ONE (1) YEAR on labor performed at Intellian Technologies, Inc. service center from the purchased date of the product.
