Connecting The System Cables - Intellian i9P User Manual

Connecting the System Cables

After installation and fixation of the antenna, connect the ACU to the
antenna. Refer to the drawing on the right to connect cables.
• Connect the RF cable (30m) from the RF1 connector on the
antenna power switch box to the RF1 connector on the ACU
• Connect the RF cable (3m) from the receiver connector on the ACU
to the RF connector on the IRD.
• Connect the power cable (10m) from DC power connector on the
rear of ACU to a power source at 12 VDC/ 24 VDC.
• Press the POWER ON switch in front of the ACU to start the
operation of the antenna system automatically.
ACU
ANT RF1
FG - +
+ -
DC 9 - 30 V FUSE ANTENNA NMEA
9-30V DC Power
NMEA GPS PC Cable

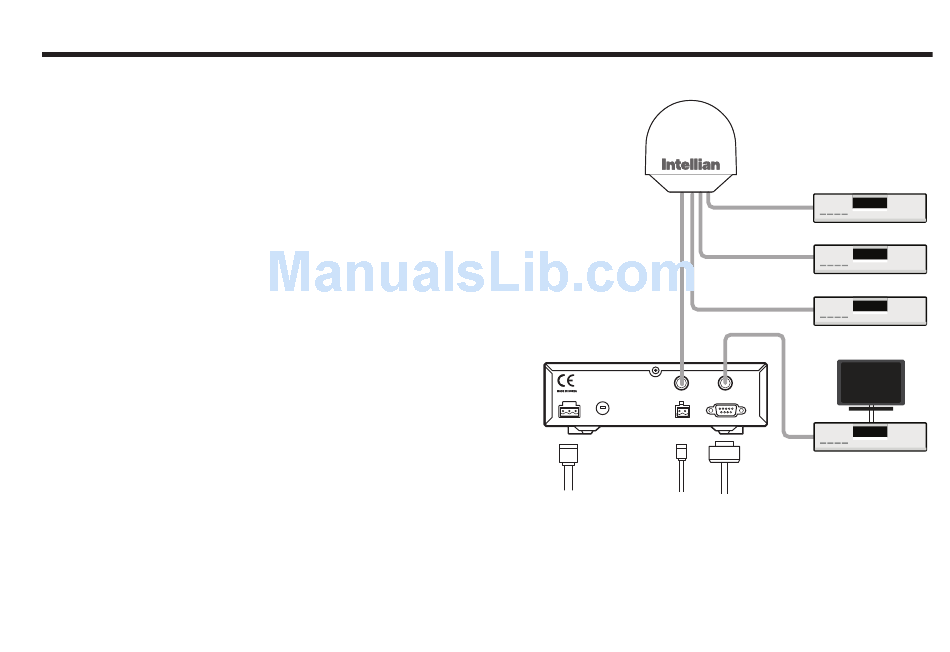

Figure 14 : Basic Configuration
IRD 2 (Not supplied)
(Optional)
IRD 3 (Not supplied)
(Optional)
IRD 4 (Not supplied)
(Optional)
TV (Not supplied)
RECEIVER
PC INTERFACE
Satellite Receiver (IRD)
