Connecting the system to a GPS

Your satellite TV system has a built-in GPS. If the internal GPS doesn't
operate properly, you can directly connect your boat's NMEA 0183 GPS
to the system through the ACU's external GPS connector. To do this you
will need a suitable cable to connect your GPS system and the green
2-way ACU GPS connector supplied with your Intellian i9P Satellite TV
System.
1. Strip back the insulation of each conductor and connect each
terminal of the 2-way connector.
2. Tighten the locking screws.
3. Connect the +ve (positive) terminal of the ACU GPS connector to the
NMEA OUT wire of the boat's GPS system.
4. Connect the –ve (negative) terminal of the ACU GPS connector to the
ground wire of the boat's GPS system.
5. Refit the ACU GPS connector to the rear of the ACU.
18
FG - +
DC 9 - 30 V FUSE
NMEA OUT (+)

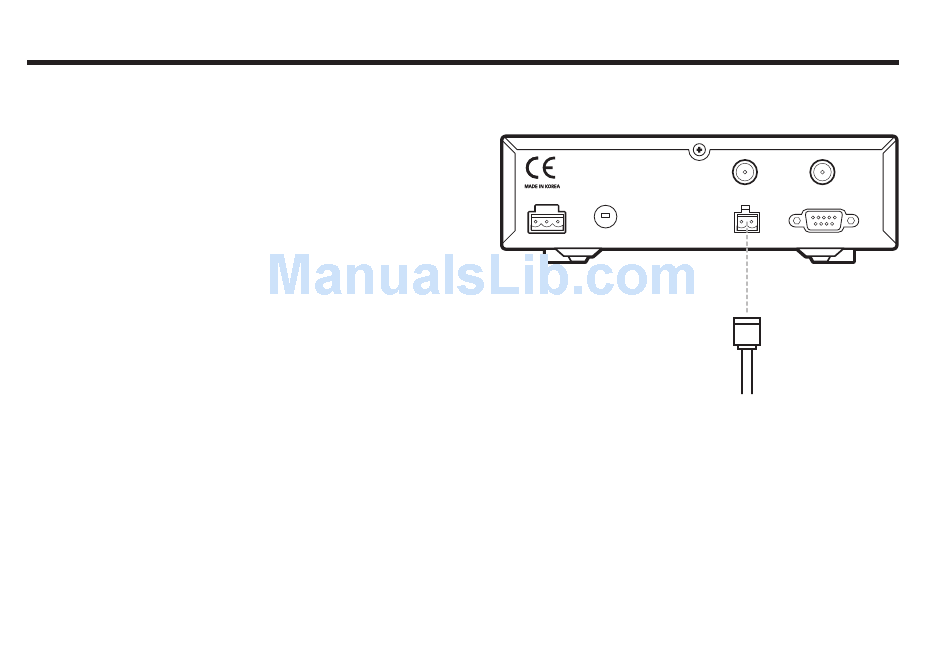

Figure 15 : GPS Connection
ANT RF1 RECEIVER
+ -
NMEA PC INTERFACE
GROUND (-)
