Set Tracking Information of Satellite [Primary]

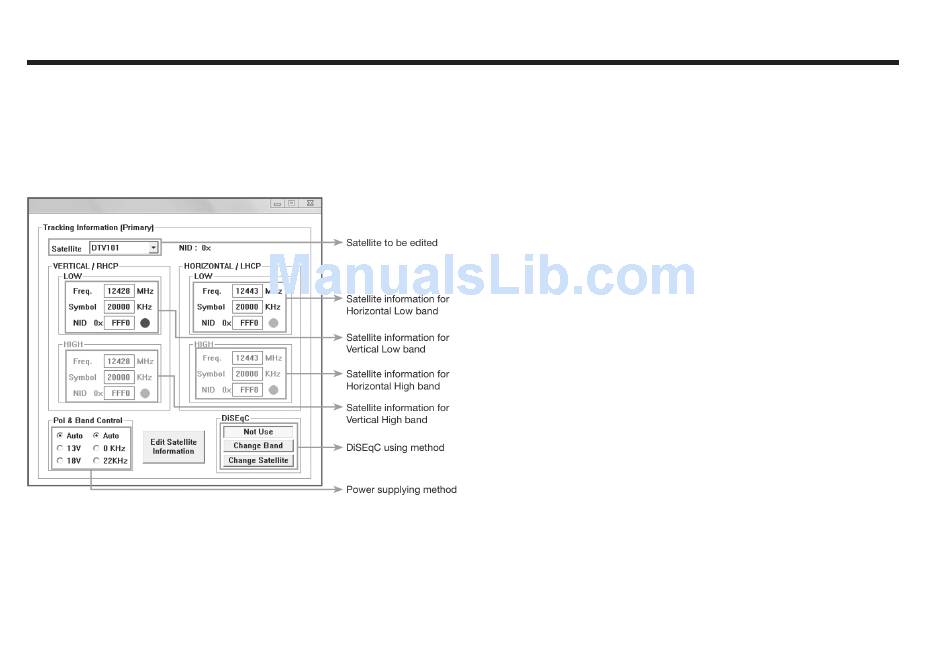

Figure 26 : Setting up the Primary Tracking Information
52
Command Buttons
• Edit Satellite Information – To change frequency information of the
antenna.
• Satellite Information – Satellite information consists of frequency,
symbol and NID (Network ID) of a transponder in tracking satellite.
There are four groups of satellite information. 'Vertical/RHCP' is
applied when IRD supply 13V, and 'Horizontal/LHCP' is applied when
IRD supply 18V. 'LOW' is applied when DiSEqC signal is not detected
from IRD, 'HIGH' is applied when DiSEqC signal is detected from
IRD. If you select 'Not Use' or 'Change Satellite', two 'HIGH' groups are
inactivated. If you select Change Band', two 'High' groups are
activated and you can modify satellite information which is applied
when DiSEqC signal is detected from IRD. After modifying information,
press 'Edit Satellite Information' button, then new information is
updated in the antenna.
• Pol & Band Control – The "Pol" controls 13V (Vertical/ RHCP band) and
18V (Horizontal/LHCP band). The "Band" control DiSEqC 0KHz tone
(Low band) and 22KHz (High band).
