Mounting the Antenna

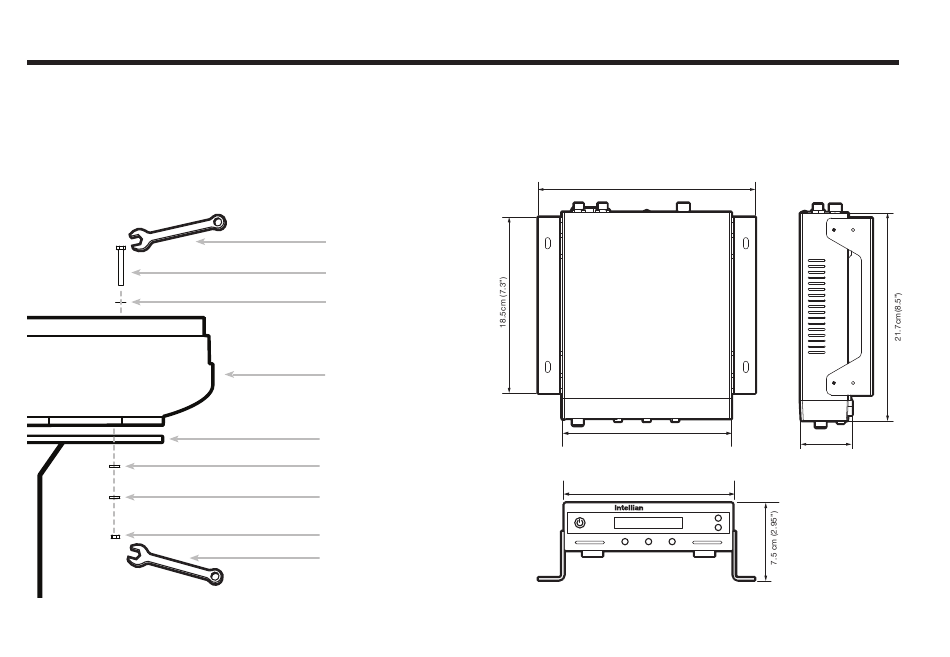

Fix the antenna to the holes made before as shown in the drawing
below by using the hex head bolts (M6 X 35L), M6 spring washer,
M6 flat washer and M6 Nut supplied.
Figure 12 : Mounting the Antenna
16

Installing the ACU

ACU Dimensions

10mm Spanner
M6 Hex. Bolt
M6 Flat Washer
Radome Base
Deck
M6 Flat Washer
M6 Spring Washer
M6 Hex. Nut
10mm Spanner
22.8cm(9")
17.8cm (7")
17.8 cm (7")
Figure 13 : Dimension of ACU
5.4cm (2.1")
