Installation

System Components

The Intellian i9P consists of two major units, antenna assembly unit and
antenna control unit.
Antenna Unit
The antenna of Intellian i9P is manufactured with the following compo-
nents for the optimum search and reception of the satellite signal.
• Mechanical Unit – manipulates the antenna to receive the optimal
satellite signal regardless of the movement of the vessel.
• Control Unit – controls mechanical operation of the antenna.
• RF Unit – transmits the optimum satellite signal to the receiver.
• Radome – protects the antenna from the severe marine environ-
ment.
6

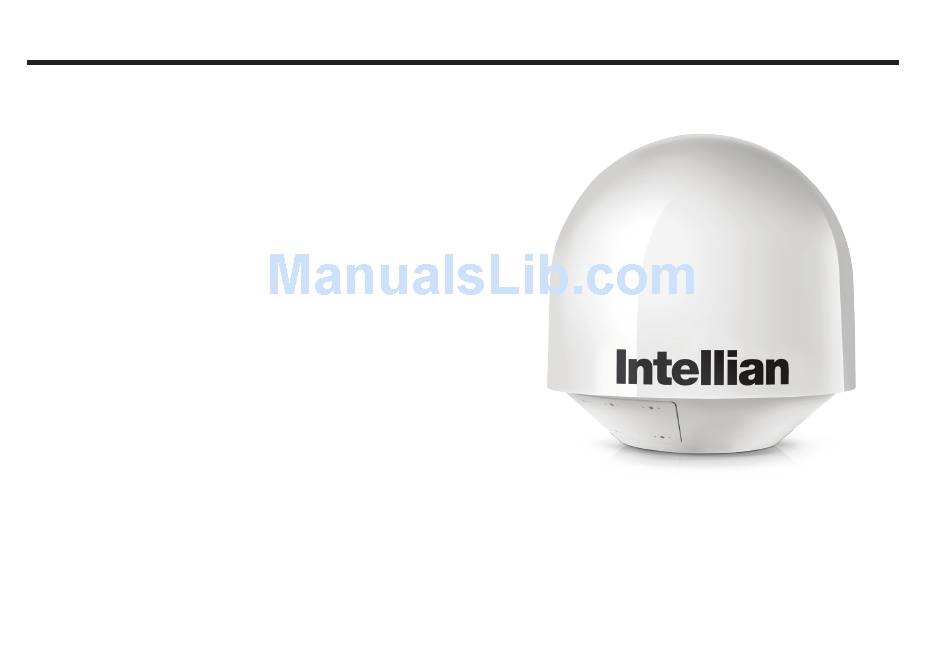

Figure 02 : Antenna Unit
