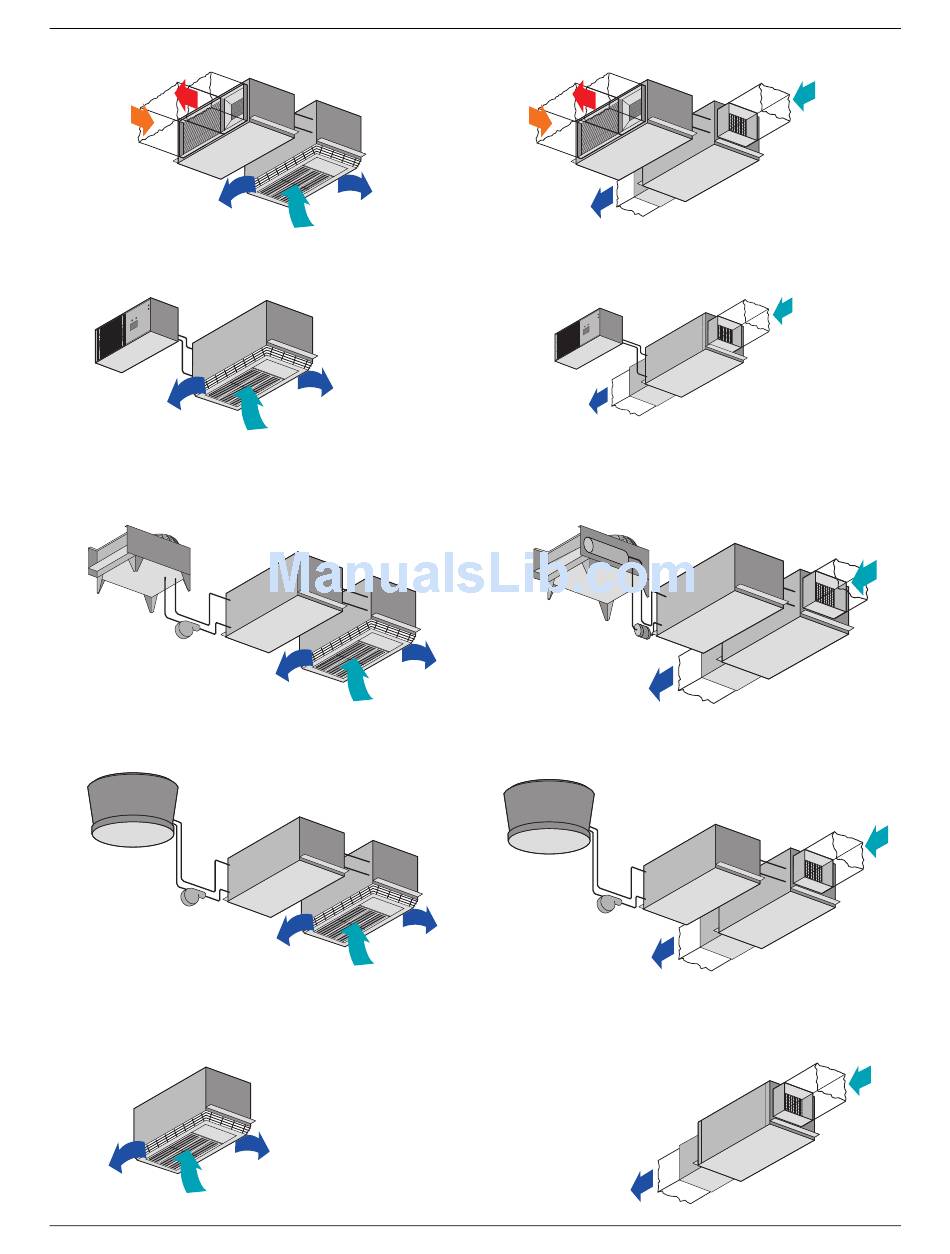

Figure 8 Air-cooled systems, 2 and 3 tons
Split System Evaporator
Supply and Return Air Plenum
Indoor Air-cooled Condensing Unit
Split System Evaporator
Supply and Return Air Plenum
Outdoor Air-Cooled Condensing Unit
Figure 9 Water/glycol-cooled systems, 2 and 3 tons
Condensing Unit
Drycooler
Split System Evaporator
Supply and Return Air Plenum
Remote Water/Glycol Condensing Unit
Condensing Unit
Cooling
Tower
Split System Evaporator
Supply and Return Air Plenum
Remote Water/Glycol Condensing Unit

Figure 10 Chilled water systems, 3 tons

Evaporator
Evaporator
Chilled Water
Supply and Return Plenum
Split System Evaporator
Supply and Return Air Ducted
Indoor Air-cooled Condensing Unit
Split System Evaporator
Supply and Return Air Ducted
Outdoor Air-Cooled Condensing Unit
Condensing Unit
Drycooler
Split System Evaporator
Supply and Return Air Ducted
Remote Water/Glycol Condensing Unit
Condensing Unit
Cooling
Tower
Split System Evaporator
Supply and Return Air Ducted
Remote Water/Glycol Condensing Unit
Chilled Water Ducted
